Key Sensor Modules

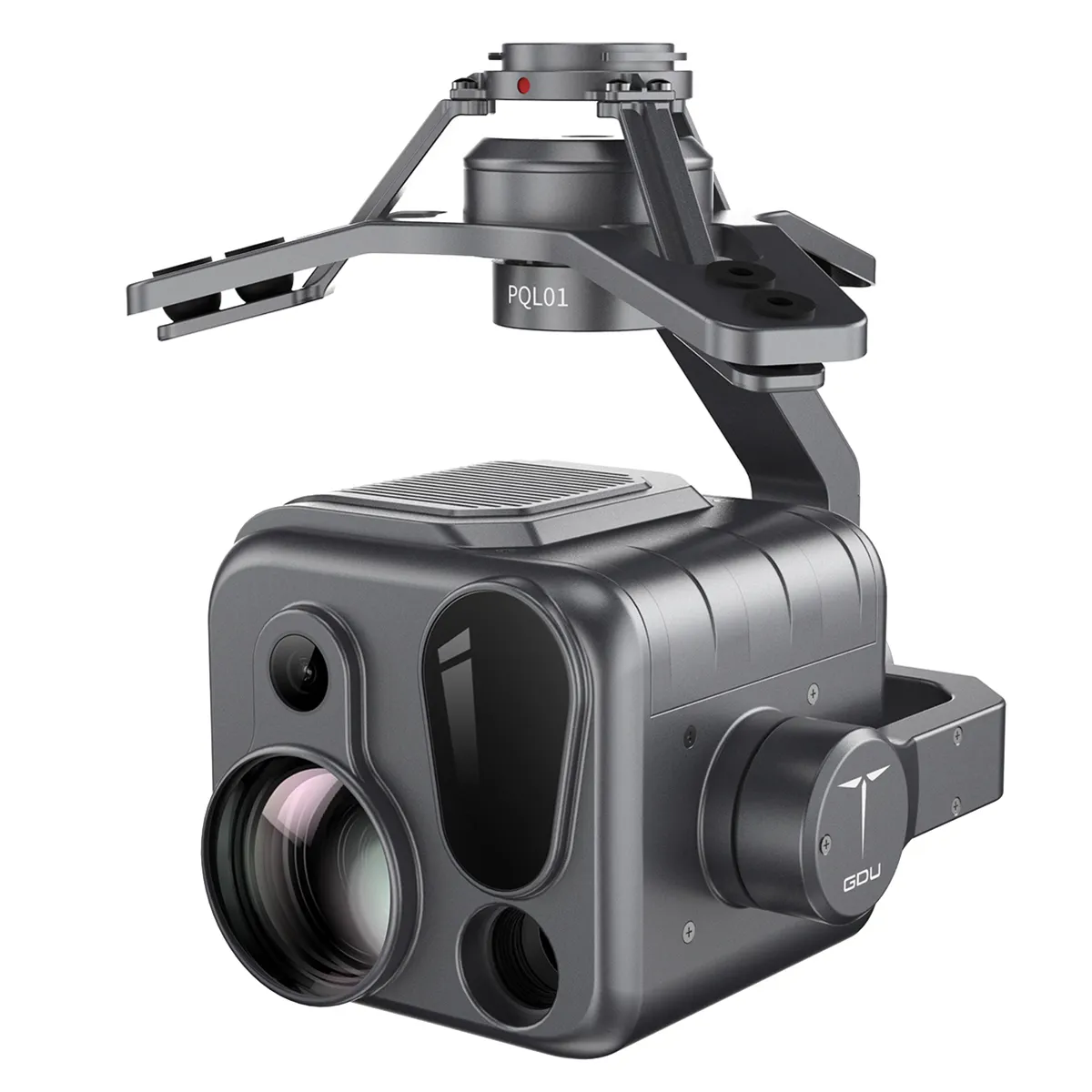

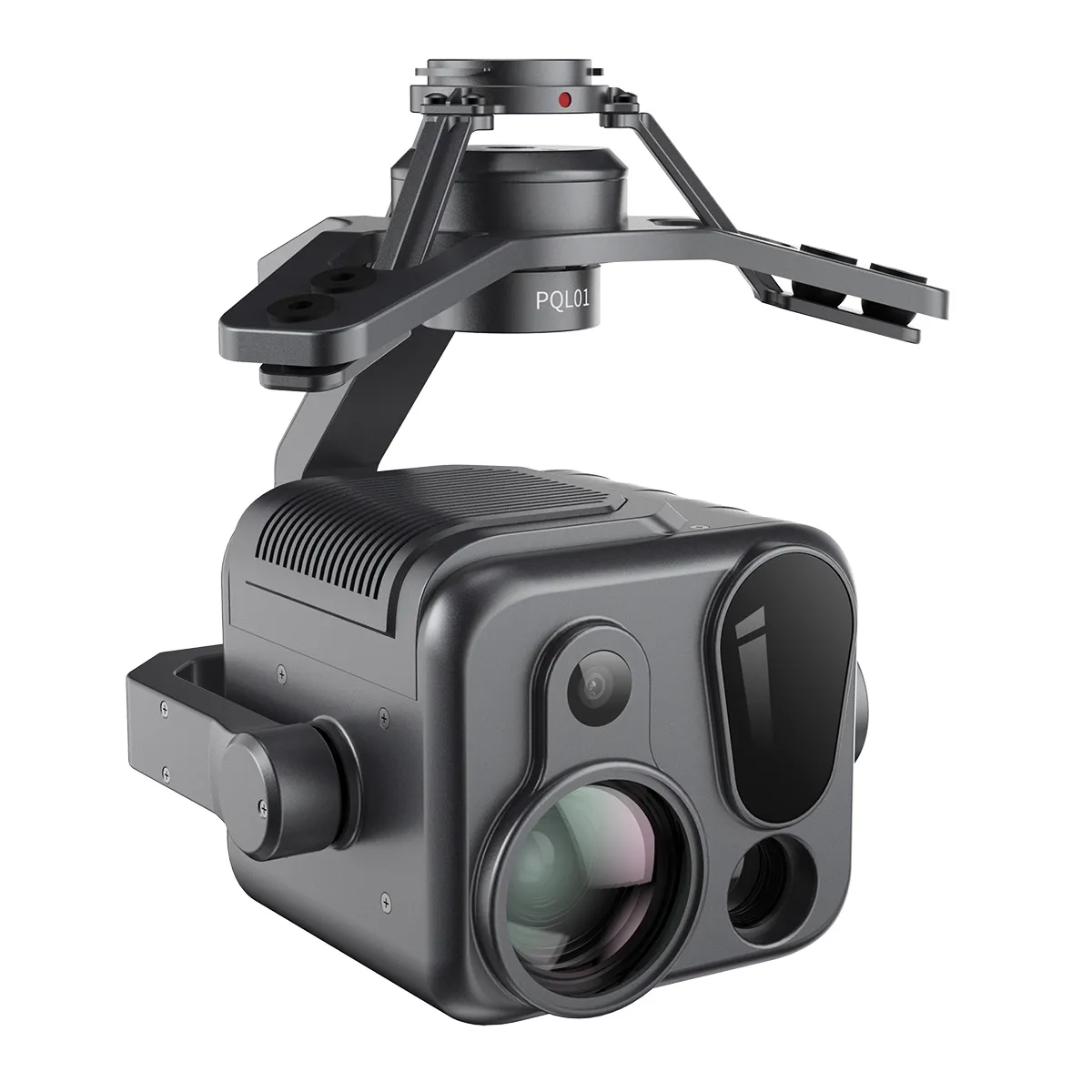

The “Quad-Sensor” designation refers to the four primary tools integrated into the gimbal:
-
Caméra Zoom : A 48MP visible light sensor with 18x optical zoom et jusqu'à 144x hybrid zoom. This is ideal for detailed inspections of power lines or infrastructure from a safe distance.
-
Caméra grand angle : A high-resolution 48MP sensor with a wide field of view, designed for broad situational awareness and area mapping.
-
Caméra thermique infrarouge : A self-developed ceramic-based thermal sensor (640×512 resolution) that provides precise temperature measurements and heat-signature detection.
-
Télémètre laser : A module capable of measuring distances up to 1500 m with high precision, supporting intelligent target positioning and coordinate locating.
Spécifications techniques
| Fonctionnalité | Spécification |
| Gimbal Type | 3-axis mechanical stabilization (Pan, Tilt, Roll) |
| Stabilization Accuracy | <= 0.005º |
| Poids | <= 930g |
| Température de fonctionnement | -20ºC à +55ºC |
| Protection contre les intrusions | IP44 (dust and splash resistant) |
| Thermal Accuracy | +-2ºC ou +- 2% |
| AI Computing Power | 21 TOPS for real-time target recognition |
| Laser Range | 5m à 1500 m |
Core Performance Benefits
-
AI-Powered Intelligence: With 21 TOPS of edge computing power, the PQL01 supports advanced features like AI intelligent object recognition, motion analysis, and automatic tracking, which are critical for security and search-and-rescue (SAR) missions.
-
Multi-Sensor Fusion: The gimbal can overlay thermal data onto visible light images (fusion mode), allowing pilots to see heat signatures while maintaining the high-detail context of the visible spectrum.
-
Ciblage de précision : Using the laser rangefinder, the system can instantly calculate the GPS coordinates (latitude/longitude) and distance of a specific object in the center of the frame.
-
Rugged Construction: Built for industrial environments, it features a self-developed ceramic movement for the thermal sensor, ensuring reliability in varying temperatures and flight conditions.
Applications courantes
-
Inspection des lignes électriques : Identifying hotspots and structural wear using zoom and thermal sensors.
-
Firefighting & SAR: Locating victims or heat sources through smoke and darkness.
-
Oil & Gas: Monitoring pipelines for leaks or anomalies.
-
Security & Surveillance: Long-distance tracking of subjects with the 144x hybrid zoom.
