Smooth Video & A Custom System
The CrystalSky monitor uses optimised video decoding to decode video in real-time. Due to limitations in software access on smartphones and tablets, video decoding in other smart devices is less than ideal. When used to view photos or videos transmitted by the camera, problems can occur including video jitter, long latency and more. The CrystalSky monitor’s optimised decoder provides smooth, real-time video with minimal latency.
A newly designed system removes unnecessary Android apps and services and is resistant to viruses and junk software. This ensures that the CrystalSky monitor is able to offer optimum performance at all times. The embedded DJI GO app provides full access to all DJI GO features including aircraft parameter adjustment, camera control, footage management, and playback. Using offline maps, maps can be kept available even if going out of Wi-Fi reach.
Power Supply & Card Slots
A two cell 4920mAh secondary external battery gives the CrystalSky monitor a longer operating time than comparable mobile devices. It supports rapid charging and controls its discharge rate well even in low temperatures. Used with the 5.5″ screen, it can achieve a maximum operation time of 5-6 hours.
Equipped with dual Micro SD Card slots, the CrystalSky monitor’s storage can be extended, or footage recorded on a Micro SD Card can be played back directly on the monitor. It can also be used for footage backups. Using editors built in DJI GO, high-quality edits can be made quickly and instantly shared to social media. The CrystalSky monitor supports H.264 and H.265 video decoding, allowing it to play back these files at 30fps and 60fps respectively. These videos can also be output through its HDMI port.
The CrystalSky monitor’s HDMI port allows up to 4K video to be output to FPV goggles and other display devices. Built-in dual-band Wi-Fi means it can connect to Wi-Fi networks and Wi-Fi hotspots from mobile devices, and it is also compatible with 4G dongles and USB storage through its USB-A port.When connected to the internet, the CrystalSky monitor gets easy access to system upgrades, live streaming, photo or video sharing, data synchronisation and more. File sizes are optimised as much as possible to minimise mobile data demands.Onboard Micro USB and USB-C ports make it convenient to connect the CrystalSky monitor with a remote controller or other devices.
The CrystalSky monitor can quickly connect to the Inspire series, Phantom 4 series, Phantom 3 series (Phantom 3 Professional, Phantom 3 Advanced), Matrice series, and Osmo series (except the Osmo Mobile) over Wi-Fi or via a remote controller USB port, depending on your specific product. Also, CrystalSky easily attaches to the Cendence remote controller without an additional mounting bracket.
Beautifully Designed & Optimised for Extreme Temperatures
The CrystalSky monitors from DJI are the next level of functional design for piloting drones. Sleek lines and a powerful display screen offer both an aesthetically pleasing and completely intuitive system perfectly suited to DJI’s product range.
Most smart devices are designed to operate in common temperature ranges. The CrystalSky monitor’s external battery has been designed for more extreme temperatures. It is able to operate in as low as -4°F (-20°C) and, with its internal cooling system, functions normally in temperatures as high as 104°F (40°C).
DJI CrystalSky 5.5″ Monitor FAQs
What makes CrystalSky different from ordinary smart device monitors?
The maximum brightness on most smart devices is often between 500 cd/m2 and 705cd/m2. The High Brightness 5.5″ CrystalSky monitor reaches 1000cd/m2, ensuring comfortable viewing under bright light outdoors.
What are the dual microSD card slots on the CrystalSky monitor used for?
They can increase the CrystalSky monitor’s storage, be used to play back footage recorded on a micro SD Card and for footage backup.

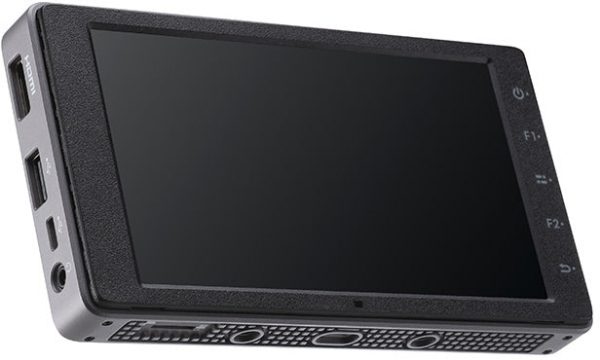

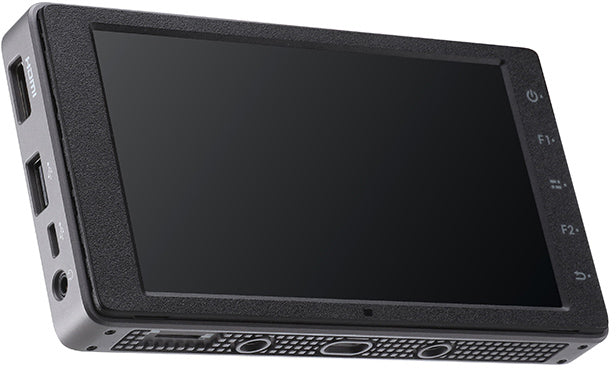

What are the ports on the CrystalSky monitor?
- HDMI (3840 x 2160 output)
- Dual microSD card slots
- Micro USB port
- USB Type-C port
- USB-A port
Does the CrystalSky monitor include a speaker and microphone?
How is the CrystalSky monitor’s brightness adjusted?
The CrystalSky monitor’s brightness can be adjusted manually and automatically. When set to adjust automatically, CrystalSky will adjust its brightness based on the ambient brightness detected by its light sensor.
Can the CrystalSky monitor connect to Wi-Fi networks or a mobile device via Bluetooth?
The CrystalSky monitor can connect to Wi-Fi networks or Wi-Fi hotspots from mobile devices. Bluetooth is not supported.
Can I customise CrystalSky monitor button functions?
The F1 and F2 buttons on the CrystalSky monitor can be customised, and some buttons on the remote controller can be set to control CrystalSky functions using the DJI GO app. For more details, see the remote controller section of your respective product’s user manual.
What operating system does the CrystalSky monitor use?
The CrystalSky monitor uses a customised Android operating system embedded with the DJI GO, DJI GO 4, and DJI Pilot app.
Can I edit footage on the CrystalSky monitor?
Yes, you can use the CrystalSky monitor to edit your footage using the DJI GO app.
On which social media platforms can I share my video videos and photos?
You can share to Facebook, Twitter, Instagram and other common social networks.
How do I upgrade the CrystalSky monitor’s operating system and DJI GO app?
You can upgrade the operating system through an Internet connection or by downloading the upgrade package from the official DJI website, copying it to an SD card, and inserting the SD card into the monitor. The monitor will start upgrading when switched on.
The DJI GO app can also be upgraded using the internet, and you can upgrade DJI GO and the OS at the same time.
Can I install other applications on the CrystalSky monitor?
Compatible Battery Chargers:
Inspire 2 Battery Charger (IN2C180)
Inspire 2 Battery Charger (ADE018)
Inspire 2 Car Charger (C6S90-2)
Inspire 1 100W Battery Charger (A14-100P1A)
Inspire 1 180W Battery Charger (ADE018)
Inspire 1 Car Charger (C6S90)
Phantom 4 Series Battery Charger (PH4C100)
Phantom 4 Series 160W Battery Charger (PH4C160)
Phantom 4 Car Charger (C6S90)
Phantom 3 Professional Battery Charger (ADE019)
Phantom 3 Car Charger (C4S90)
*Phantom 3 57W Battery Charger (A14-057N1A)
*Osmo 57W Battery Charger (A14-057N1A)
