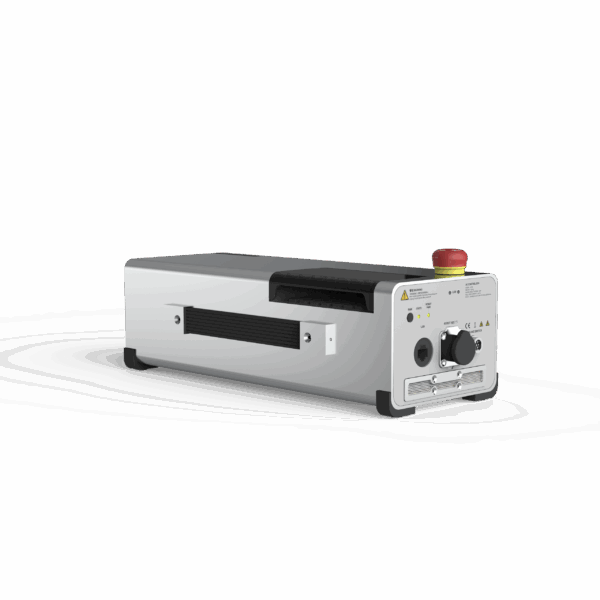

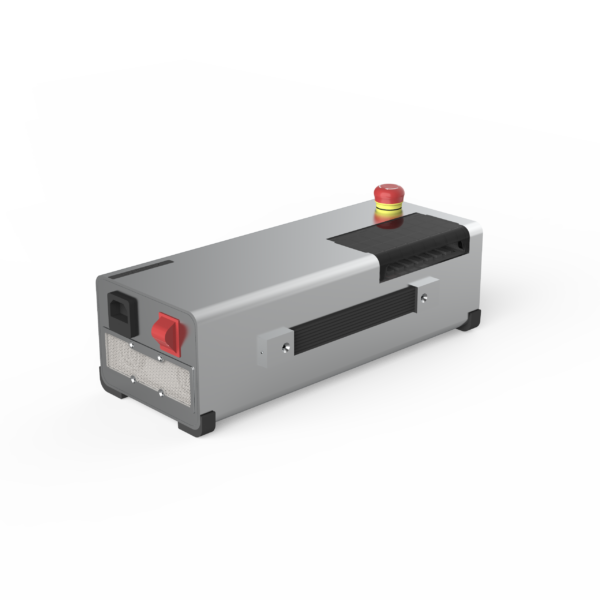

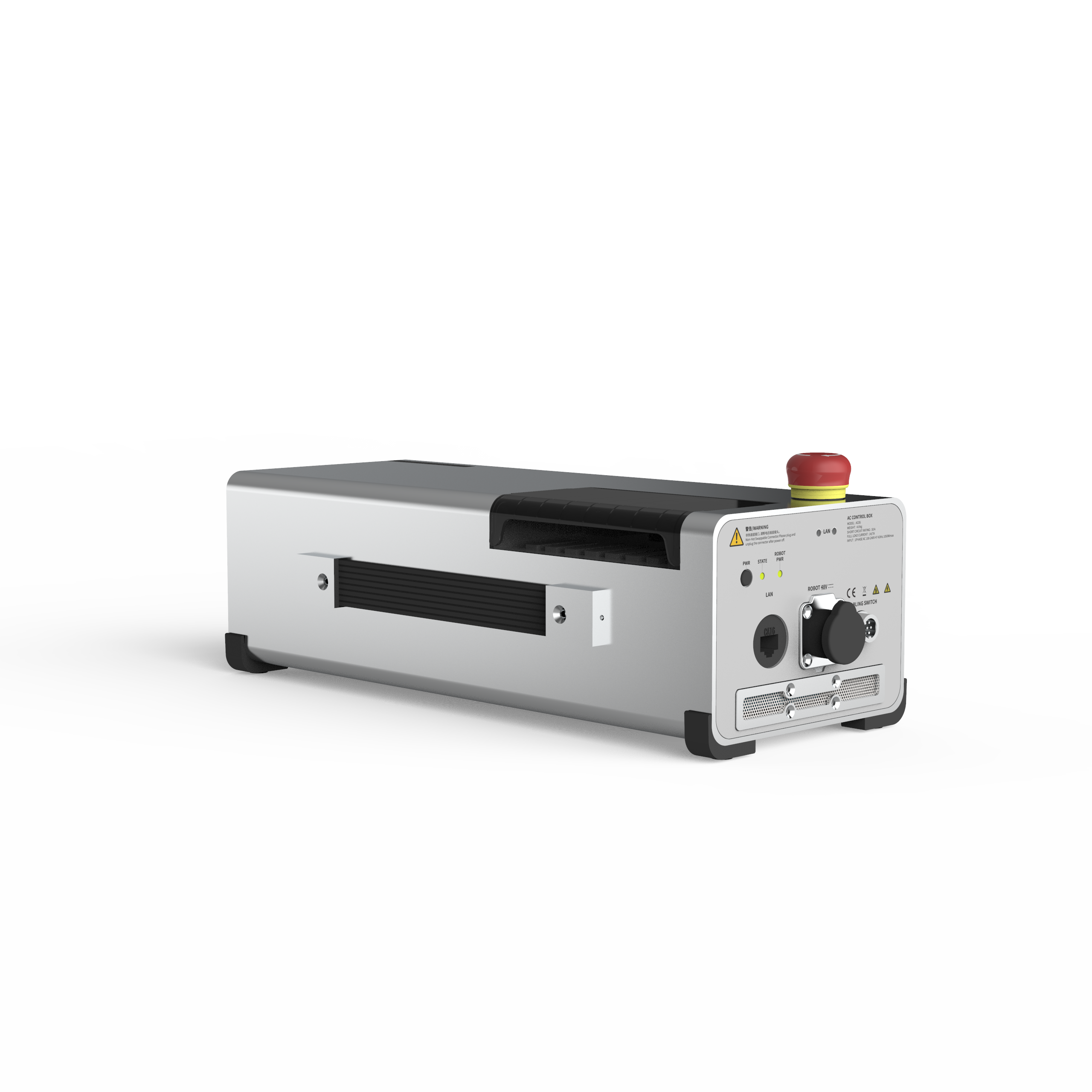

UFACTORY 850 AC Control Box

Principais recursos e benefícios

• Integrated Power Supply: Designed for quick and easy deployment, the AC Control Box contains a built-in AC-DC adapter, allowing it to be powered directly from a standard wall outlet. It accepts a wide input voltage of 100-240V AC (50/60Hz) and outputs the necessary 48V DC power (typically 20.8A) for the UFACTORY 850 robot arm.
• Centralized Control and Connectivity: It serves as the brain and interface hub for the robotic arm.
  • I/O Expansion: Provides extensive input/output ports for integrating with external equipment, including Digital Inputs/Outputs (CI/DI and CO/DO) and Analog Inputs/Outputs (AI/AO).
  • Comunicação: Suportes Ethernet and features an RS485 Master port for robust communication and control.
• Software Host: The control box runs the user-friendly, web-based Estúdio UFACTORY software, which allows for graphical programming and configuration of the robotic arm without requiring additional software installation on your PC.
• Safety and Operation: Apresenta um Emergency Stop button for immediate power cutoff to ensure personnel and equipment safety. It facilitates the connection between the robotic arm’s power and signal cables.
• Stationary Solution: Specifically optimized for workshop and industrial production environments where a stable AC power source is available, providing a complete, plug-and-play solution for high-precision automation tasks performed by the UFACTORY 850.

In summary, the UFACTORY 850 AC Control Box is a powerful, integrated control unit that simplifies the deployment and operation of the 850 robotic arm by providing all necessary power conversion, communication interfaces, and the platform for its control software.
