Designed for autonomous movement and heavy-duty tasks, the ECHO-PLUS offers:
- Six-Wheeled Chassis: Provides stability and mobility in various terrains.

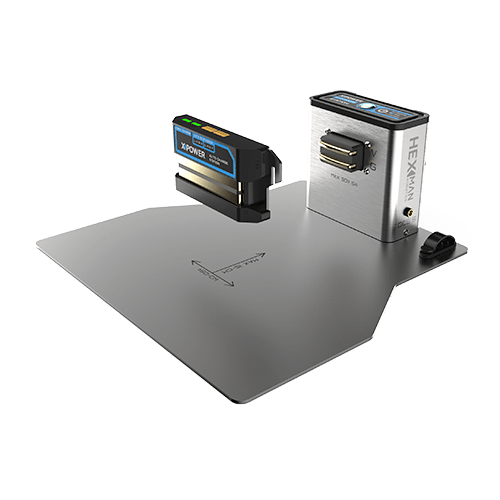

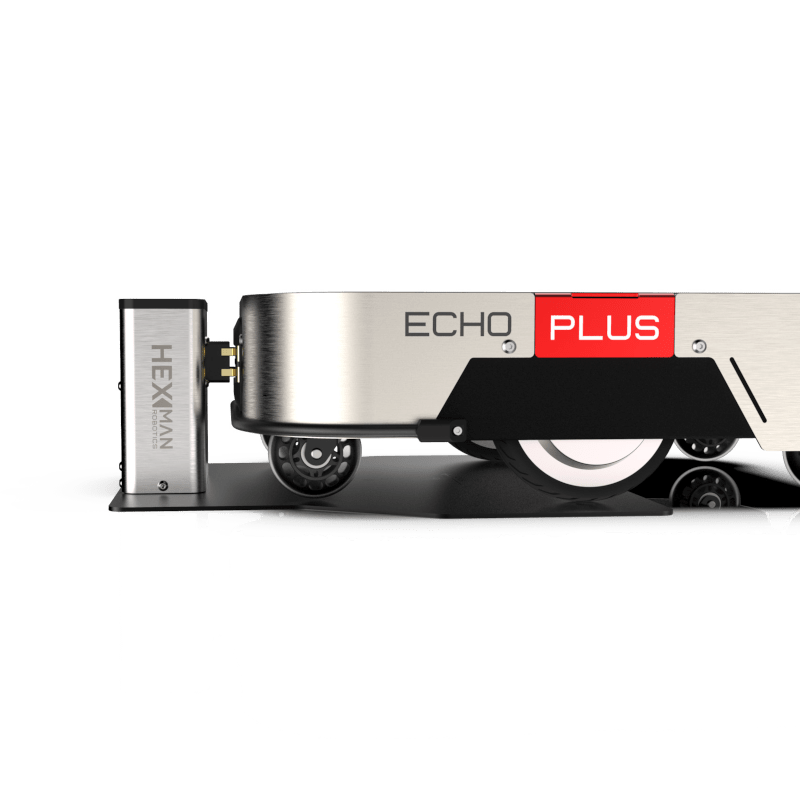

- Automatic Charging: Ensures continuous operational readiness with minimal manual intervention.
- Alta capacidad de carga útil: Capable of carrying up to 50 kilos (according to one source).
- Operación de alta velocidad: Achieves speeds up to 2 m/s.
- Long Autonomy: Provides an operating time of 8–10 hours.
This robot is an ideal platform for advanced research, commercial logistics, or security applications requiring a durable, high-capacity, and autonomous mobile base.
Enhancell Hexmove ECHO-PLUS (Mobile Network Benchmarking Solution)
The Hexmove ECHO-PLUS by Enhancell is an easy-to-use, software-only portable solution for comprehensive mobile network benchmarking and optimization.
Running on commercial off-the-shelf Android tablets, Echo Plus transforms standard hardware into a powerful tool for professional network surveys. It streamlines multi-device testing for maximum efficiency:
- Multi-Device Control: Control up to seven devices simultaneously (six Echo One handsets plus one scanner) over a single Bluetooth connection.
- Software-Only & Cloud-Integrated: Runs on commercial Android tablets (Qualcomm chipsets supported), saving costs on custom hardware. Licensing is managed via a powerful Cloud service for easy administration, transferability, remote control, and automated software updates.
- Seamless Multinetwork Testing: Perform multi-network and service testing with a single set of measurement configurations, enhanced by automatic device discovery.
- Full 5G Support: Measures a wide range of 5G parameters.
- Mapping & Analysis: Includes support for indoor and outdoor mapping (including iBwave format support for indoor floor plans) and easy analysis of measurement log files.
- Scanner Compatibility: Supports various industry-standard scanners like PCTel and DRT, connecting via Bluetooth or USB.
Echo Plus is the intelligent, cost-effective solution for professionals needing to conduct efficient, real-time, large-scale network performance measurements exactly as their customers experience it.
ESPECIFICACIONES
| Modelo | Echo Plus |

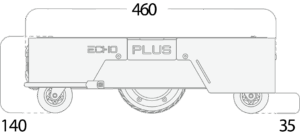

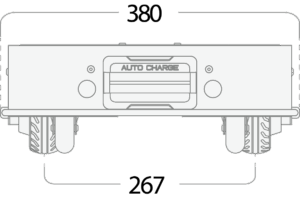

| Dimensiones L x An x Al | 460 × 380 × 140 mm |

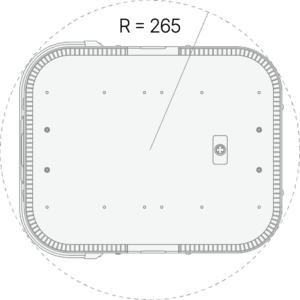

| Radio de giro | 265 mm |
| Distancia al suelo | 35 mm |
| Peso | 16 kg |
| Carga útil | 50 kilos |
| Velocidad | 2 m/s |
| Pendiente máxima | 5° |
| Altura máxima del obstáculo (sin carga) | 10 mm |
| Gobierno | 2 differential wheels, 4 following wheels |
| Tiempo de ejecución [1] | 8 – 10 h |
| Motores | 2 × 100 W |
| Codificador | 4096 |
| Baterías | 24 V / 10 Ah |
| Es hora de cargar | 5 h |
| Interfaz | PODER |
| Protección contra la entrada | IP22 |
| Temperatura de funcionamiento | 0 °C a 40 °C |
[1] El tiempo de funcionamiento depende en gran medida de las condiciones de trabajo. Sujeto a cambios, errores y modificaciones técnicas.
