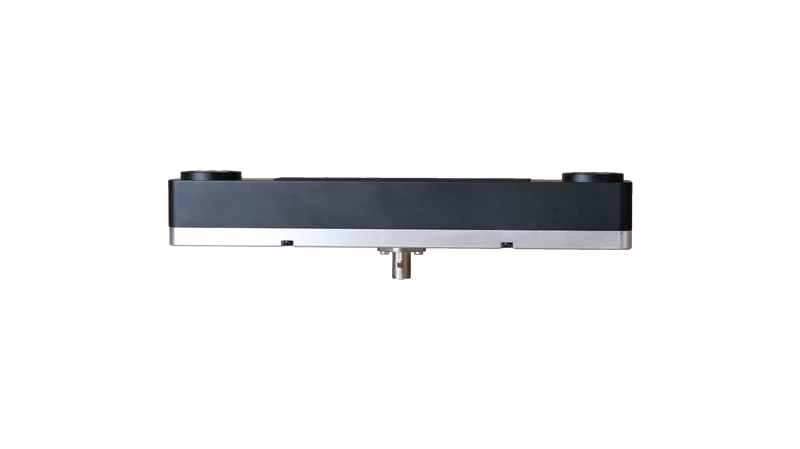

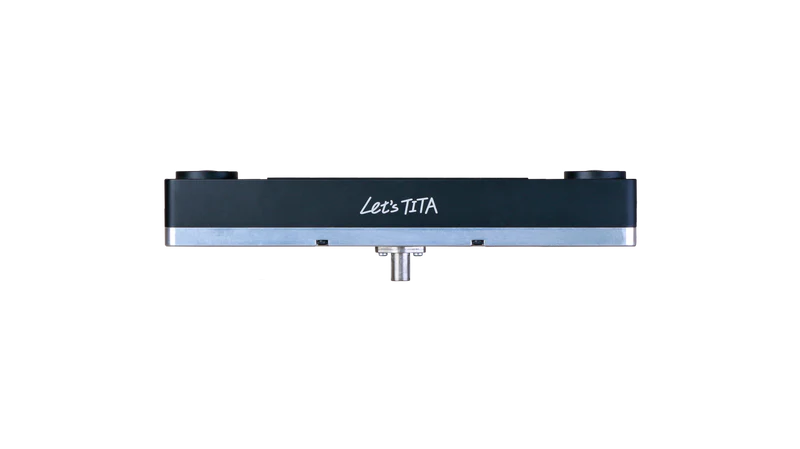

Leopard Imaging LI-AR0234CS-STEREO-GMSL2-30

Leopard Imaging LI-AR0234CS-ESTÉREO-GMSL2-30

El Leopard Imaging LI-AR0234CS-ESTÉREO-GMSL2-30, also known as HAWK, is a professional-grade, high-performance 3D stereo depth camera module designed for demanding computer vision applications in automotive, robotics, and industrial automation.

(Precio en demanda)

🌟 Key Features & Technology

Stereo Depth Sensing: This module is equipped with dos synchronized cameras to capture stereo images, enabling high-accuracy 3D depth perception using Neural Stereo Depth Sensing technology.
High-Performance Sensor: It utilizes two ON Semiconductor 2.3MP CMOS digital image sensors (AR0234CS), each providing a resolution of 1920 x 1200 pixels.
Global Shutter: Características Global Shutter technology, which captures the entire image frame simultaneously. This is crucial for eliminating motion blur and distortion when imaging fast-moving objects, ensuring high accuracy for perception tasks.
GMSL2 Interface: It uses the Maxim GMSL2 (Gigabit Multimedia Serial Link 2) serializer, which allows for high-speed video, control data, and Power-over-Cable (PoC) transmission over a single, long-distance coaxial cable (up to 12 meters is common).
IMU integrada: A 6-axis Inertial Measurement Unit (IMU) is built-in (BMI088), providing enhanced spatial and positional awareness essential for robotics and autonomous navigation (SLAM).

📐 Core Specifications

Especificación	Valor
Sensor (Qty)	2 x ON Semiconductor AR0234CS
Resolution (Per Sensor)	$1920 \times 1200$ (Active Pixels)
Tipo de persiana	Global Shutter
Frame Rate	60 fps @ $1920 \times 1200$ (RAW side-by-side output)
Campo de visión (FOV)	$121.5^{\circ}$ (Horizontal) / $147.5^{\circ}$ (Diagonal)
Baseline	150 mm
Recommended Depth Range	$1.0 \text{ m} \sim 8.0 \text{ m}$ (arriba a $20 \text{ m}$ with reduced accuracy)
Repeatability (Z-Accuracy)	$\pm 2\%$ en $6 \text{ m}$ distance
Ingress Protection (IP)	IP65 (Resistance to water, dust, and humidity)

💡 Ideal Applications

This camera is a robust solution for cutting-edge projects requiring high-speed, high-accuracy 3D perception in challenging environments:

Autonomous Systems: ADAS, Autonomous Mobile Robots (AMR), and Automated Guided Vehicles (AGV).
Industrial: Machine Vision, 3D Scanning, and Positional Tracking.
Extended Reality (XR): Augmented Reality (AR) and Virtual Reality (VR) applications.

The LI-AR0234CS-STEREO-GMSL2-30 is a powerful tool compatible with embedded platforms like NVIDIA Jetson AGX Xavier/Orin, offering a comprehensive solution for advanced computer vision development.
