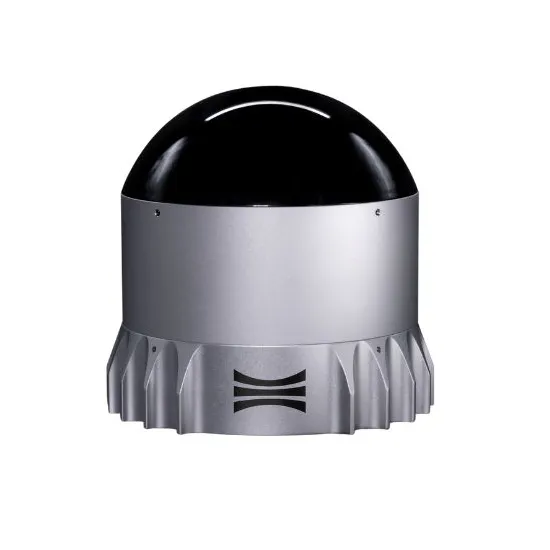

Expulsión OSDome-128 Rev7

Características y especificaciones clave

• Full Hemispherical Field of View (FoV): Offers an unparalleled 180∘ vertical by 360∘ horizontal FoV, providing complete floor-to-ceiling coverage. This unique dome-shaped design is ideal for eliminating blind spots in crowded or complex environments.
• High Resolution: Características 128 vertical channels (layers), providing exceptional detail for accurate 3D mapping, object classification, and tracking. It generates up to 5.2 million points per second.
• Enhanced Range and Precision: The OSDome (Rev7) has a max range of up to $\sim 45$ meters, and a typical range of $20$ meters en un $10\%$ reflective target, making it perfect for indoor, smart infrastructure, and near-range robotics.
• L3 Digital LiDAR Chip: This next-generation chip significantly enhances performance with:
  • $10\times$ increase in photon sensitivity.
  • High-precision dual returns for enhanced object detection.
  • Improved detection on challenging objects (like black vehicles, tires, or small cables).
• Diseño robusto y confiable: Built with Ouster’s simple digital architecture and automotive-grade components, the sensor is rated IP68 and IP69K, making it resilient to extreme conditions, shock, vibration, and even pressure washing.

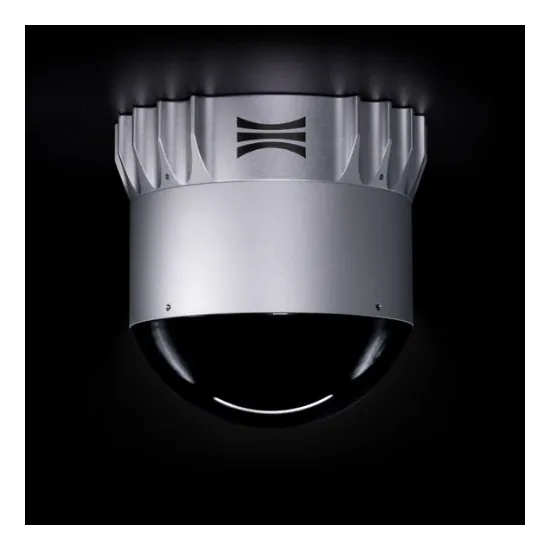

• Discreet and Compact Form Factor: Its small, dome-like physical size allows for unobtrusive integration into ceilings, infrastructure, or the body of a vehicle, blending seamlessly into the environment.
• Aplicaciones versátiles: Ideal para:
  • Smart Infrastructure: Crowd analytics, occupancy monitoring, and security/intruder detection with privacy-preserving people tracking (it uses spatial data, not facial images).
  • Robotics & Industrial: Warehouse automation, autonomous mobile robots (AMRs), forklift situational awareness with floor-to-ceiling visibility, and material handling.

The OSDome-128 Rev7 is the ultimate solution for applications requiring high-fidelity, wide-area spatial awareness with unmatched durability and a minimal footprint.
