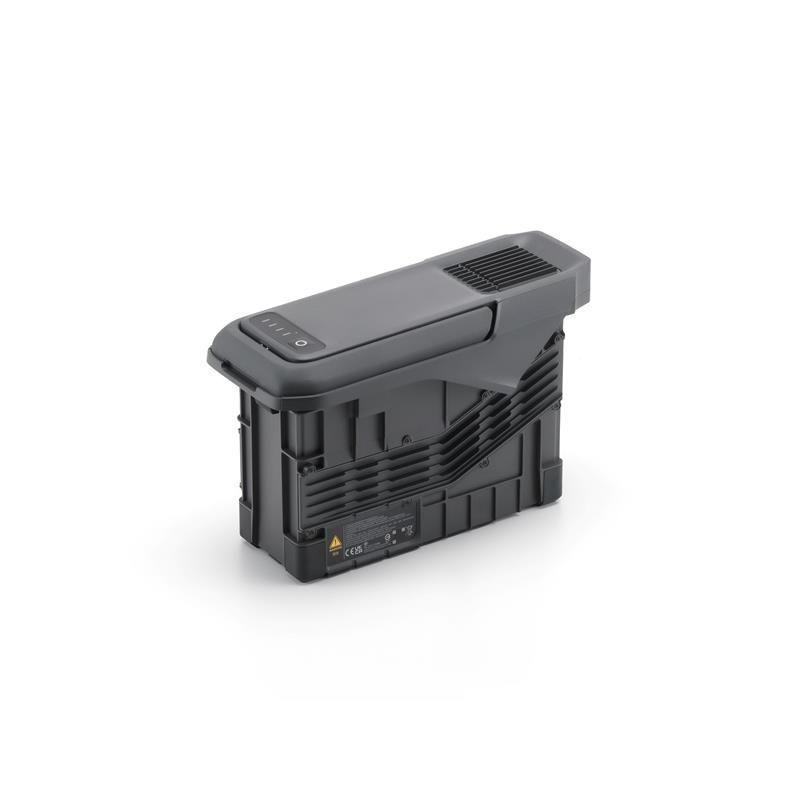

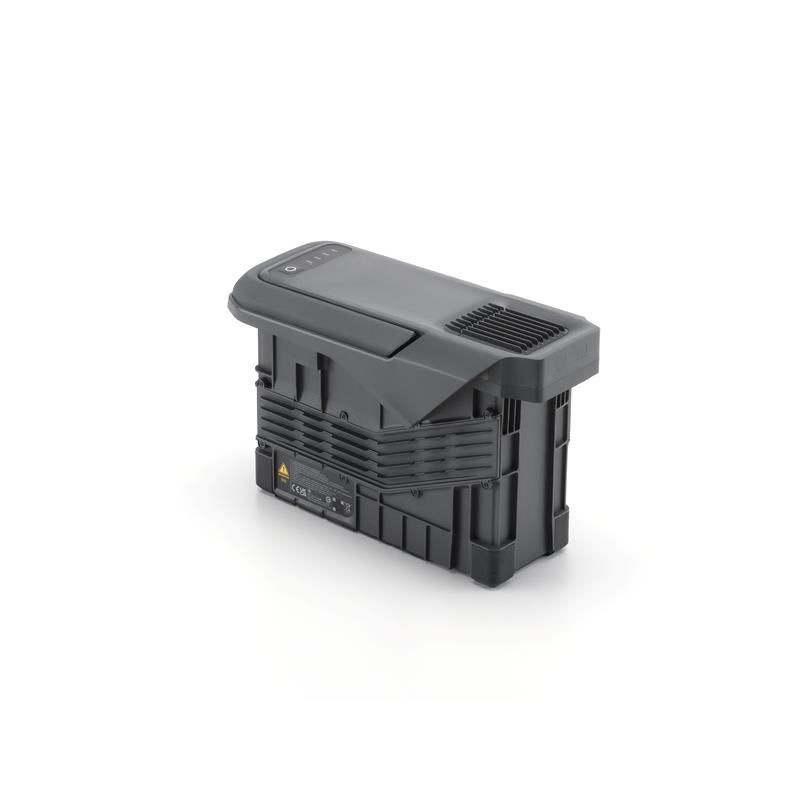

DJI TB100 Intelligent Flight Battery

Características clave:

• Exceptional Endurance: With a massive 20,254 mAh capacity and 977 Wh of energy (Li-ion 13S), the TB100 provides impressive flight times of up to 59 minutes (with the DJI M400), allowing for extended operations, increased coverage, and reduced downtime in the field.

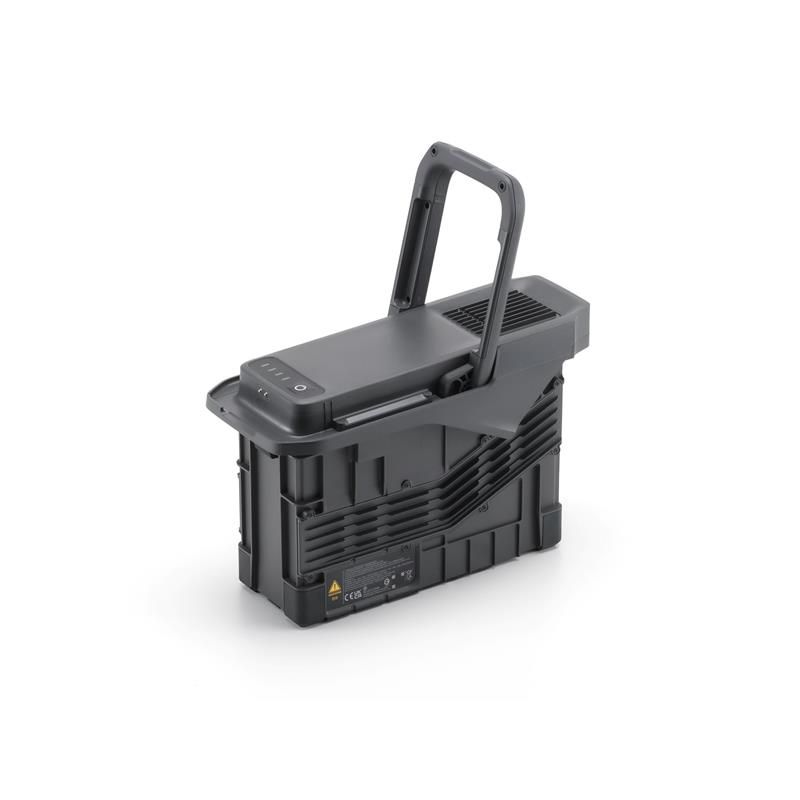

• Hot-Swappable Design: The TB100 features a top-insert design and an upgraded handle for rapid and hassle-free battery swaps. Crucially, it supports hot-swapping, with the DJI M400 retaining power for up to 45 seconds during the exchange. This means no loss of satellite lock, no GPS reacquisition, and quick mission restarts, making it ideal for continuous, time-sensitive operations.
• Optimized for Professional Use: Built for the rigors of industrial applications, the TB100 boasts enhanced heat dissipation and a self-heating system. This ensures reliable performance across a wide range of challenging environments, with an operational discharge temperature of -20°C to 75°C.
• Long Cycle Life: Engineered for longevity, the TB100 is rated for up to 400 full charge/discharge cycles, significantly reducing the cost per flight and extending the battery’s lifespan.
• Intelligent Battery Management: The battery incorporates an advanced battery management system that provides real-time status monitoring, including charge level, estimated remaining flight time, and internal temperature. It also features multi-layered safety protections against overcharging, over-discharging, short circuits, and overheating, ensuring safe and predictable power delivery.
• Seamless Integration: The TB100 integrates flawlessly with DJI enterprise platforms, particularly the Matrice 400. When paired with the DJI BS100 Intelligent Battery Station, it enables rapid charging at a 2C rate and supports various charging modes (Ready-to-Fly, Standard, Fast, Silent, Storage) for optimized workflow efficiency.

The DJI TB100 Intelligent Flight Battery is an indispensable component for commercial operators, filmmakers, emergency response teams, and anyone relying on the DJI Matrice 400 for demanding aerial tasks. Its combination of high capacity, hot-swapping capability, and intelligent management ensures maximum uptime, enhanced safety, and consistent performance, ultimately elevating the efficiency and reliability of professional drone operations.

Especificaciones
Capacity: 20 254 mAh
Standard Voltage: 48.23 V
Max Charging Voltage: 54.6 V
Battery Type: Li-ion 13S
Energy: 977 Wh
Net Weight: Approx. 4.72 kg (10.4 lbs)
Operating Temperature: –4 °F to 122 °F (–20 °C to 50 °C)
Charging Temperature: 41 °F to 113 °F (5 °C to 45 °C)
(self-heating activates < 5 °C)
Discharging Temperature: –4 °F to 122 °F (–20 °C to 75 °C)
Self-Heating: Onboard • Battery Station • Single-battery modes supported
Discharge Rate: 4 C discharge
Max Charge Power: 2 C charge
Cycle Life: ˜ 400 cycles
Charging Time: Using BS100 Intelligent Battery Station:
220 V input: 45 min (0 à 100 %)
110 V input: 70 min (0 à 100 %)
110 min (Silent Mode, either input)

Compatibilidad
DJI Matrice 400 Series
