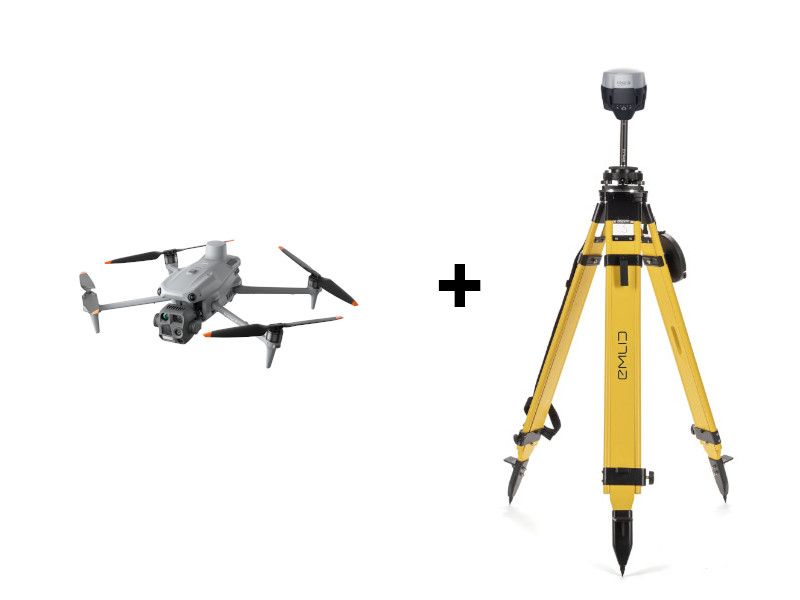

Kit Emlid RS3 y DJI Matrice 4E Base + Rover

The Core of the System: RS3 Receiver

Each RS3 unit in your kit is a powerful and versatile tool, capable of acting as a base station or a rover with a simple change of mode in the field app.

Key Features of the RS3 Receiver:

• Multi-Band, Multi-Constellation GNSS: Tracks all major satellite systems (GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS) across multiple frequencies (L1/L2/L5). This ensures fast and reliable centimeter-level accuracy anywhere in the world, even in challenging environments.

• Built-In LoRa Radio: Communicate with your rover over long distances (up to 8 km / 5 miles line-of-sight) without needing cellular service or external radios.

• Cellular & Wi-Fi Connectivity: Stream RTK corrections via the internet (NTRIP) using the built-in 4G LTE modem or a local Wi-Fi network.

• Web Interface & Mobile App: Easily configure and manage your RS3 using any modern web browser on your smartphone, tablet, or computer. No proprietary, complicated software is required.

• Long-Lasting Battery: A high-capacity 6,900 mAh battery provides up to 22 hours of continuous operation on a single charge.

• Durable and Rugged: IP67-rated for water and dust resistance, built to withstand the rigors of the job site.

• Internal Data Storage: Log raw satellite data internally to an SD card for Post-Processing Kinematic (PPK) workflows.

Key Features of DJI Matrice 4E

• Designed for enterprise use: surveying, mapping, inspections in industry & construction.

• Camera setup:
  • Wide-angle: 20 MP, 4/3″ CMOS sensor with mechanical shutter for accurate mapping.
  • Medium telephoto: 48 MP (1/1.3″) ~70 mm effective focal length.
  • Telephoto: 48 MP (1/1.5″) ~168 mm focal length, allowing detailed inspection at distance.

• Performance:
  • Up to ~49 minutes flight time.
  • Max horizontal speed ~21 m/s.
  • Laser rangefinder with range up to ~1,800 m.

• Mapping / survey capabilities:
  • Supports orthophoto and oblique photography, with fast image interval (0.5 s) for efficient data capture.
  • Smart 3D Capture feature for building rough 3D models on the flight controller, route planning based on those models.

• Other features:
  • Obstacle avoidance (multi-directional) and enhanced vision/positioning for safer flights.
  • AI-powered detection (vehicles, people, vessels etc.) plus intelligent flight modes like Cruise, Smart Track, FlyTo.
