DJI BS100 Intelligent Battery Station

Características principais:

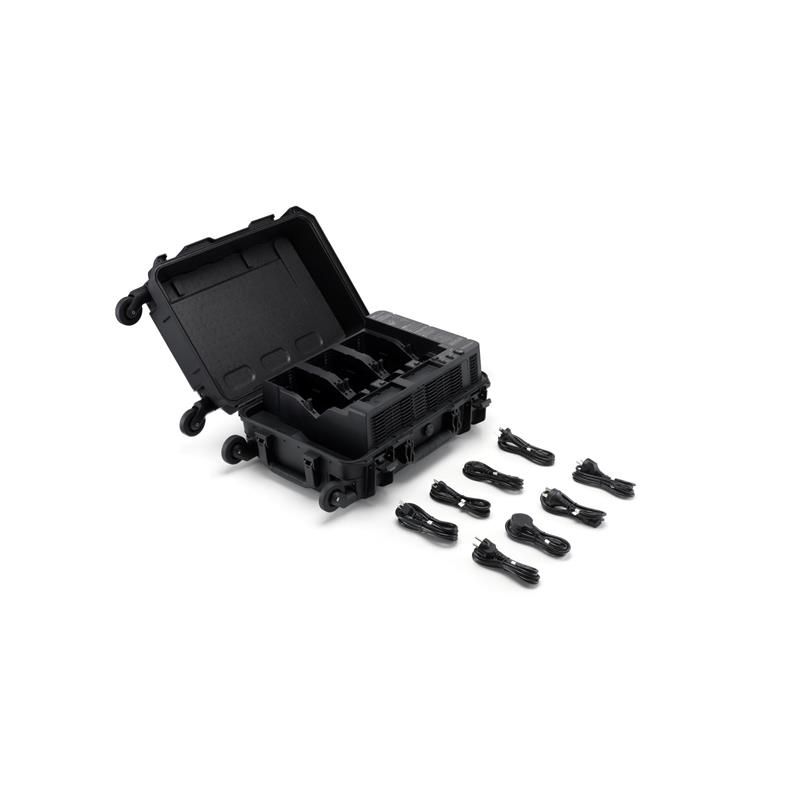

• Multi-Battery Charging: The BS100 features three ports for TB100 Intelligent Flight Batteries (including TB100C Tethered Batteries) and two ports for WB37 remote controller batteries, allowing for simultaneous charging to maximize efficiency.
• Intelligent Charging Modes:
  • Fast Charging Mode: Rapidly charges batteries, reaching 0-100% in as little as 45 minutes (at 220V) or 70 minutes (at 110V) for TB100 batteries. This mode is ideal for urgent mission redeployment.
  • Modo pronto para voar: Charges batteries to 90% for quick deployment and to optimize battery health during short-term storage.
  • Modo Padrão: Provides a balanced charge to 100% for full capacity missions.
  • Silent Mode: Reduces fan noise, making it suitable for quiet environments or nighttime operations, with a full charge taking approximately 110 minutes at both 110V and 220V.
  • Storage Mode: Automatically maintains batteries at an optimal charge level for extended periods of inactivity, preventing degradation.
• Advanced Battery Management: Equipped with DJI’s intelligent battery management system, the BS100 offers:
  • Real-time battery health monitoring.
  • Automatic cell voltage balancing.
  • Protection against overheating and overcharging.
  • Automatic discharge and firmware updates via the remote controller.
  • Comprehensive diagnostics displayed on its high-resolution LCD screen.
• Versatile Power Output: In addition to the dedicated battery ports, the BS100 includes a USB-C charging port (up to 65W output power) for charging remote controllers or other compatible accessories.

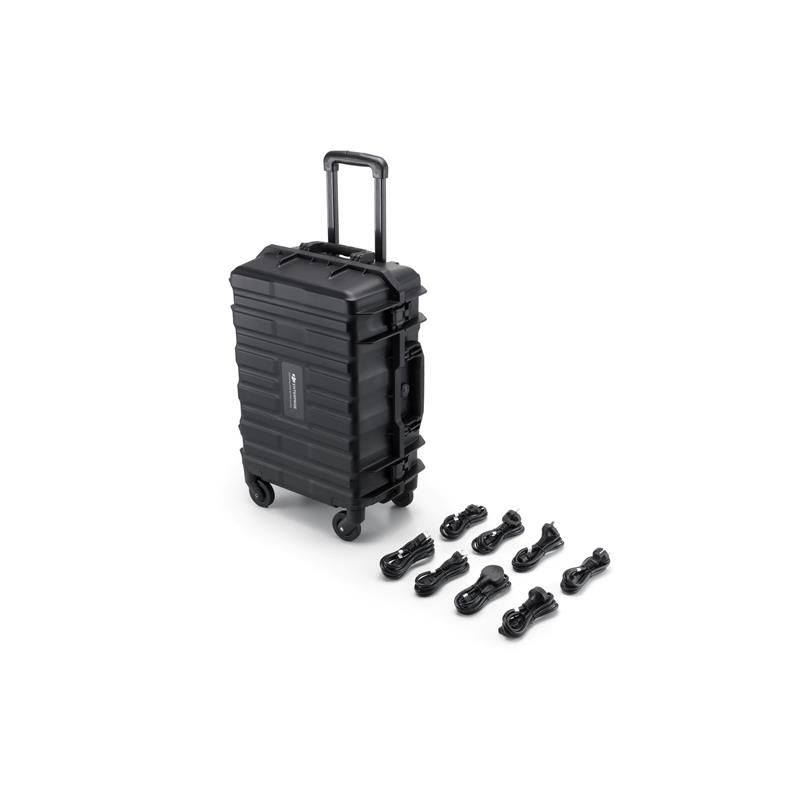

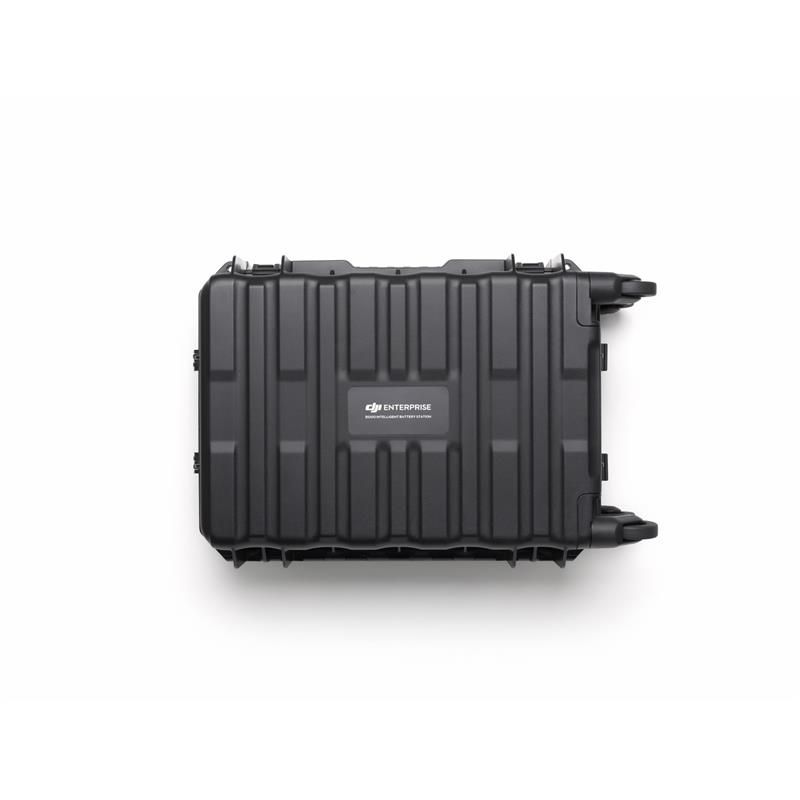

• Rugged and Portable Design: Built into a durable, transport-friendly case (dimensions: 605 × 410 × 250 mm; empty weight: approximately 11.8 kg), the BS100 is designed for field use. It features new 360°-movement wheels for convenient transportation and handles for easy carrying.
• Wide Operating Temperature Range: Operates effectively in extreme environments, from -20°C to 40°C (-4°F to 122°F).
• Universal Voltage Support: Compatible with universal AC input (100-240 V AC, 50-60 Hz, 10 A).

Especificações

Net Weight: 11.8 kg (26 lbs)
Dimensions: 605 × 410 × 250 mm (L × W × H)
Supported Batteries: TB100 / TB100C Intelligent Flight Battery, WB37 Battery
Operating Temperature: –4 °F to 104 °F (–20 °C to 40 °C)
Input: 100–240 V AC, 50–60 Hz, 10 A
Output Power: TB100 Interface:
• 100–110 V AC ˜ 1185 W
• 110–180 V AC ˜ 1474 W
• 180–240 V AC ˜ 2184 W
WB37 Interface: ˜ 52 W
USB-C: 5 V 3 A, 9 V 3 A, 12 V 3 A, 15 V 3 A, 20 V 3.25 A
Charging Channels: 3 × TB100 / TB100C • 2 × WB37 (sequential)
Charging Modes: Ready-to-Fly 90 % • Standard 100 % • Fast • Silent
Charging Time: TB100/TB100C 0 % ? 100 %:
• 45 min (220 V, Fast) • 70 min (110 V, Fast) • 110 min (Silent)

Na caixa

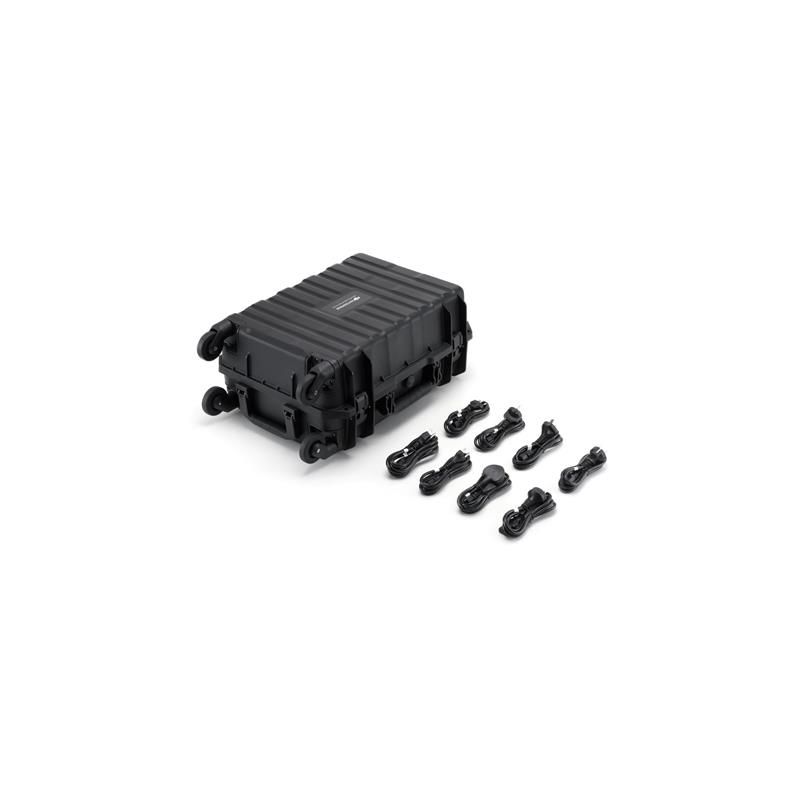

1x BS100 Battery Station
1x Power Cables

Compatibilidade

DJI Matrice 400 Series
DJI TB100 / TB100C Batteries
DJI WB37 Batteries
