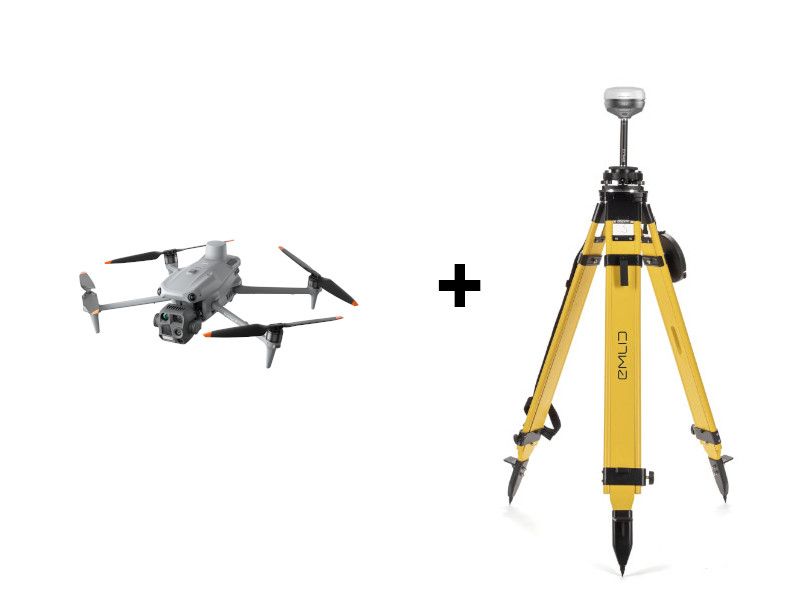

Kit Emlid RS4 Pro e DJI Matrice 4E Base + Rover

Reach RS4 and Reach RS4 Pro: powerful and future-ready

Os receptores Reach RS4 e RS4 Pro representam uma grande evolução em relação aos modelos Reach anteriores. Eles oferecem precisão incomparável em qualquer condição e fluxos de trabalho mais rápidos do que nunca. O Reach RS4 Pro se destaca por sua inovadora tecnologia de visão por câmera, que redefine o RTK tradicional e reduz o tempo de levantamento.

Os principais recursos incluem:

• All-band RTK reception (L1/L2/L5/L6) across all satellite systems for unparalleled performance in urban canyons, dense canopies, and other difficult conditions.
• Integrated antenna system with diversity LTE, dual-band Wi-Fi, and Bluetooth for a clean GNSS signal and stable fix solution wherever you go.
• Emlid multi-band radio system up to 2W, interoperable with third-party gear for sending and receiving corrections. The radio supports both licensed and license-free operations at 450 MHz and 915 MHz. This allows users to adapt to project needs while staying compliant with regulatory requirements.
• Next-generation IMU tilt compensation with up to 5 times faster initialization.
• Durability-first design with a magnesium alloy body, IP68 protection, and user-replaceable bumpers to secure the receiver from the scariest falls.
• Made for iPhone certification for compatibility with iOS apps, including Esri ArcGIS apps.
• Innovative quick release mount for a survey pole, ensuring accuracy and speed, even when tilted. Сompatible with standard 5/8” thre

Key Features of DJI Matrice 4E

• Designed for enterprise use: surveying, mapping, inspections in industry & construction.

• Camera setup:
  • Wide-angle: 20 MP, 4/3″ CMOS sensor with mechanical shutter for accurate mapping.
  • Medium telephoto: 48 MP (1/1.3″) ~70 mm effective focal length.
  • Telephoto: 48 MP (1/1.5″) ~168 mm focal length, allowing detailed inspection at distance.

• Performance:
  • Up to ~49 minutes flight time.
  • Max horizontal speed ~21 m/s.
  • Laser rangefinder with range up to ~1,800 m.

• Mapping / survey capabilities:
  • Supports orthophoto and oblique photography, with fast image interval (0.5 s) for efficient data capture.
  • Smart 3D Capture feature for building rough 3D models on the flight controller, route planning based on those models.

• Other features:
  • Obstacle avoidance (multi-directional) and enhanced vision/positioning for safer flights.
  • AI-powered detection (vehicles, people, vessels etc.) plus intelligent flight modes like Cruise, Smart Track, FlyTo.
