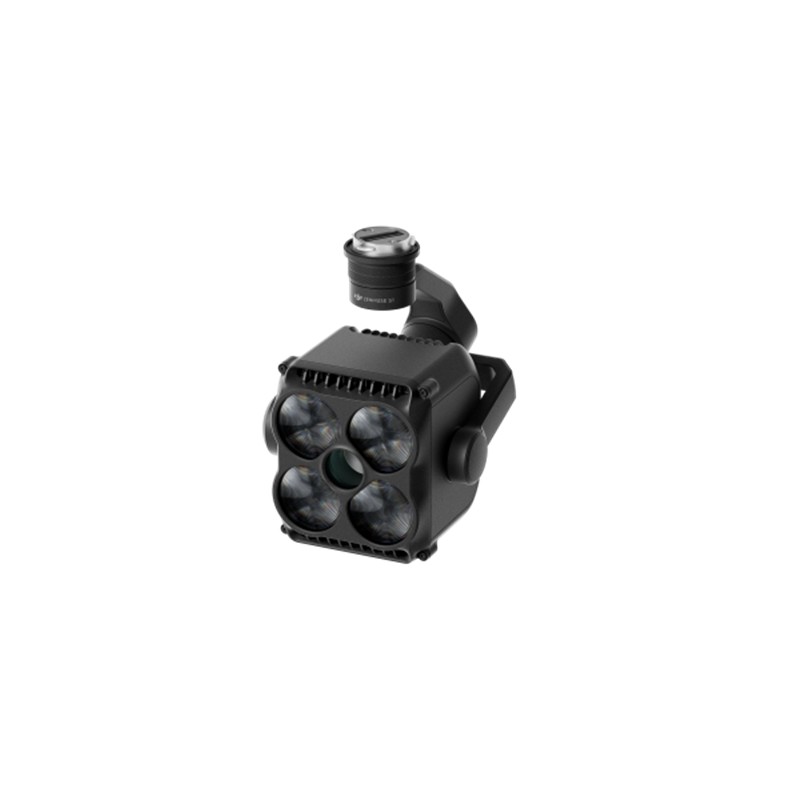

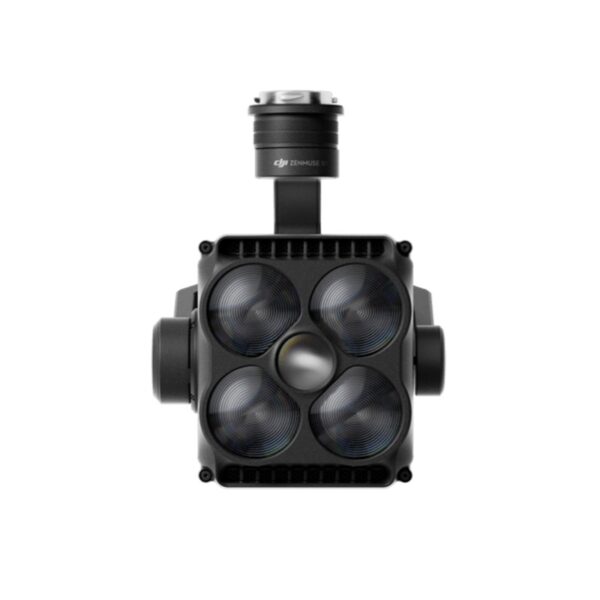

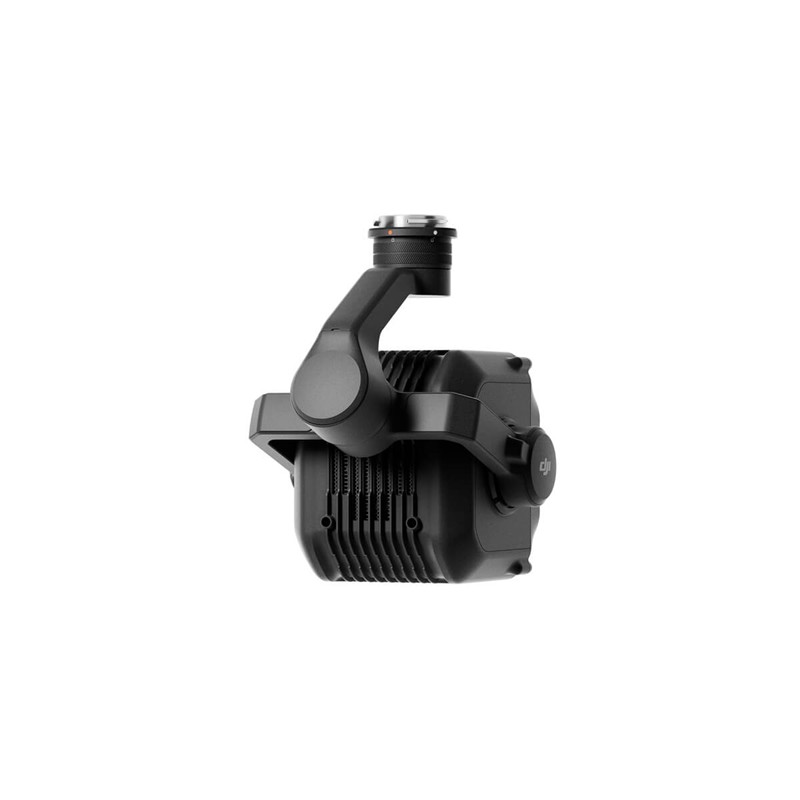

DJI Zenmuse S1

Key Features and Applications

• High Brightness and Long Illumination Distance: Delivers a maximum central illuminance of up to 35 lux at 100 meters (Matrice 350/300 RTK) and can achieve an effective illumination distance of up to 500 meters in “Both On” mode.
• Multiple Lighting Modes for Versatility:
  • Low Beam Mode: Provides a wide 15° Field of View (FOV) up to 150 meters, suitable for close-range search and inspection.
  • High Beam Mode: Uses LEP technology for enhanced light penetration with a narrow 4° FOV up to 300 meters, ideal for long-distance observation.
  • Both On Mode: Simultaneously engages both beams for maximum central illumination and coverage, extending the observation distance up to 500 meters.
  • Strobe Mode: Supports high-frequency flashing for signaling, warnings, or attracting attention in emergency situations.
• Targeted Operations: Ideal for public safety, emergency rescue and search, infrastructure inspections, and other demanding nighttime operations.
• Energy Efficiency: Optimized design, with a power consumption of only 17W in High Beam Mode, to reduce the drone’s power load and help maintain flight time.
• Safety and Durability:
  • IP54 Rating: Provides protection against dust and water splashes.
  • Eye Protection: Automatically limits brightness to 40% when the drone is on the ground to prevent glare for operators.
  • Burn Protection: Features a plastic casing to keep the surface temperature below ¹²$50^\circ C$ (¹³$122^\circ F$).
  • Built-in Payload Protection against temperature, overcurrent, and power issues.
• Seamless Integration: Features a 3-axis stabilized gimbal for steady lighting, supports gimbal synchronization to automatically align the spotlight beam with the camera’s view, and is configurable via remote controller shortcuts for intuitive operation.
• Flexible Mounting: Lightweight (¹⁷$0.76 \text{ kg}$) and can be mounted on any gimbal connector (single lower, dual lower, or single upper) of compatible Matrice series drones.

Compatibility

Matrice 400
Matrice 350 RTK
Matrice 300 RTK (requires DJI RC Plus)
