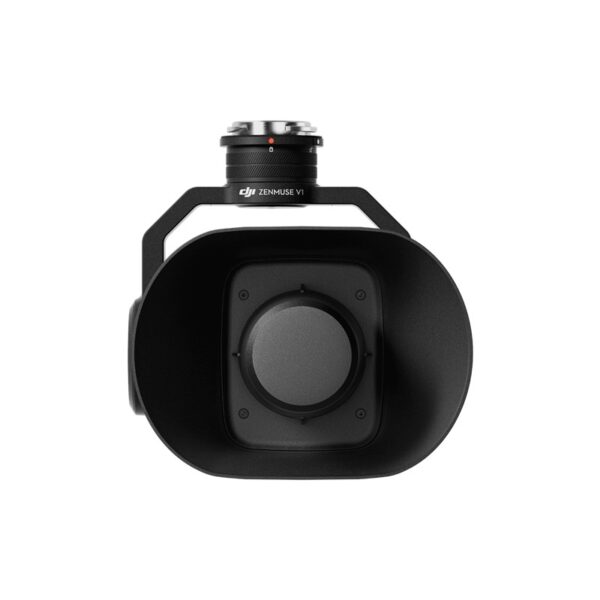

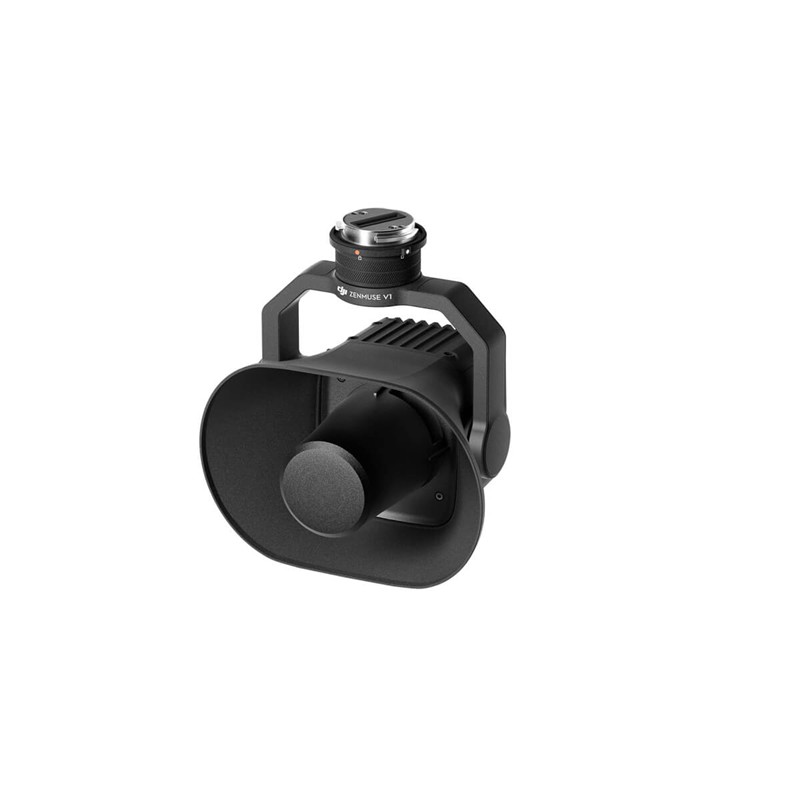

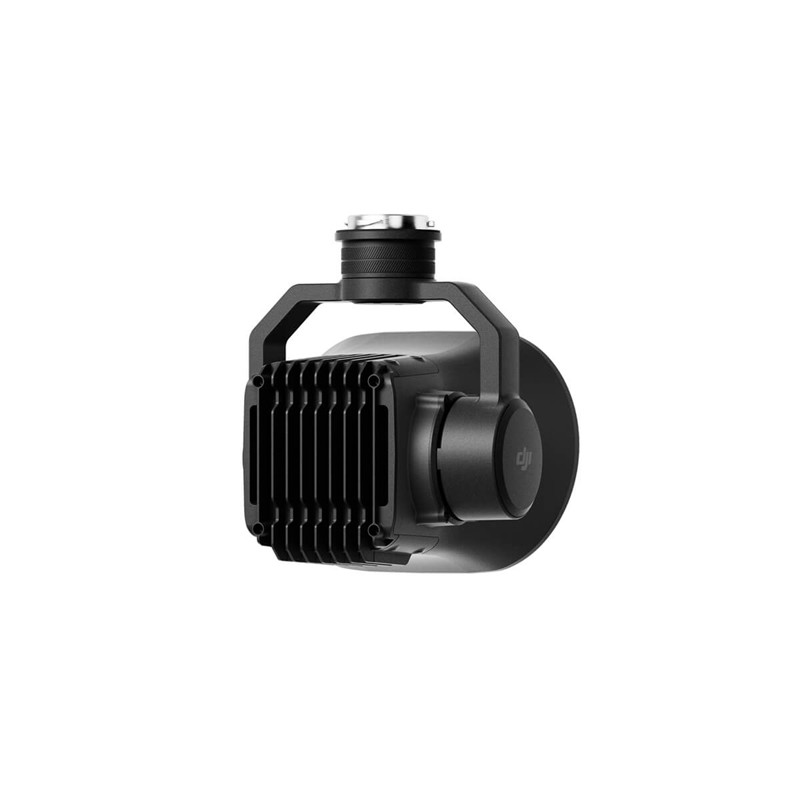

DJI Zenmuse V1

Key Features:

• Powerful Sound, Extended Reach: The Zenmuse V1 delivers a maximum sound pressure level of up to 127 dB at 1 meter (on Matrice 350 RTK/300 RTK), ensuring clear communication.³ Its effective broadcast distance reaches up to 500 meters (700 meters on Matrice 400) for wide-area coverage.
• Multiple Broadcast Modes:
  • Record & Broadcast: Record and instantly transmit messages using the DJI Pilot 2 app, with local playback and storage.
  • Text-to-Speech: Convert input text into clear, adjustable-pitch speech for transmission via the DJI Pilot 2 app.
  • Audio File Playback: Import and play preset content from local MP3, AAC, and WAV files to quickly broadcast specific notices.
  • Real-Time Broadcasting (Matrice 400 only): Supports live voice transmission with an integrated anti-howling algorithm.
• Precise Control: The speaker features a single-axis (tilt) stabilization system and can synchronize its tilt angle with other gimbal-equipped payloads, ensuring the sound is directed precisely toward the target area for enhanced broadcast efficiency.
• Directional Recording: The compatible remote controller (DJI RC Plus) supports directional audio pickup, minimizing environmental noise.
• Rugged Reliability: With an IP54 ingress protection rating for dust and water resistance and a wide operating temperature range of ¹¹$-20^\circ \text{C}$ to ¹²$50^\circ \text{C}$ (¹³$-4^\circ \text{F}$ to ¹⁴$122^\circ \text{F}$), the Zenmuse V1 is built for robust environmental adaptability.
• Lightweight and Flexible: Weighing approximately ¹⁶$0.69 \text{ kg}$, it can be easily mounted to any gimbal connector on compatible Matrice platforms, offering flexibility for various operational needs.

Compatibility

DJI Matrice 400
DJI Matrice 350 RTK
DJI Matrice 300 RTK (Requires RC Plus)
