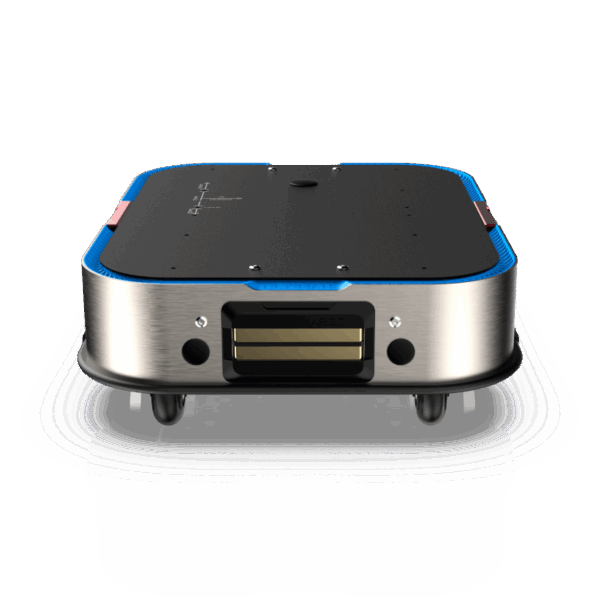

Hexmove ECHO – PLUS

The Hexmove ECHO-PLUS is a professional unmanned ground robot (UGR) built on a robust, six-wheeled chassis, making it suitable for demanding commercial and research applications.

4.150,00  Exc.VAT (4.150,00  Inc.VAT)

Available on backorder

Designed for autonomous movement and heavy-duty tasks, the ECHO-PLUS offers:

  • Six-Wheeled Chassis: Provides stability and mobility in various terrains.

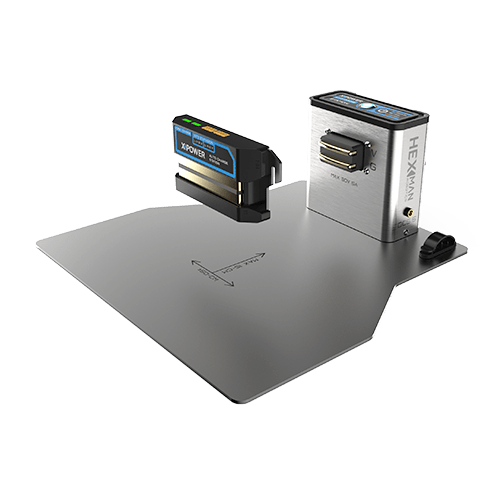

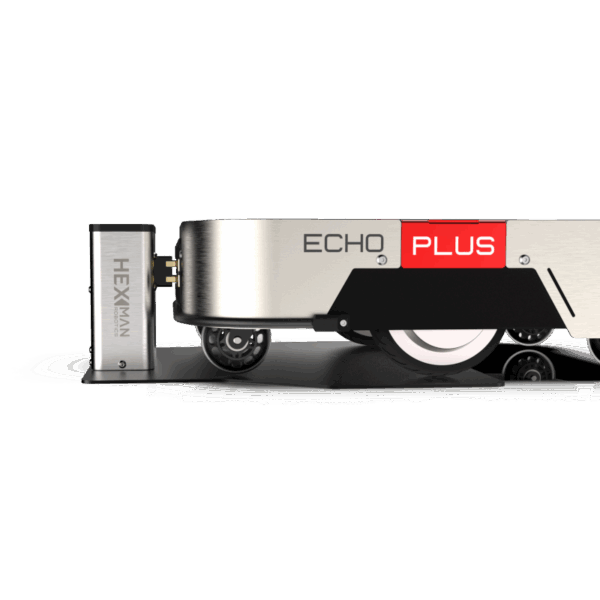

  • Automatic Charging: Ensures continuous operational readiness with minimal manual intervention.
  • High Payload Capacity: Capable of carrying up to 50 kg (according to one source).
  • High-Speed Operation: Achieves speeds up to 2 m/s.
  • Long Autonomy: Provides an operating time of 8–10 hours.

This robot is an ideal platform for advanced research, commercial logistics, or security applications requiring a durable, high-capacity, and autonomous mobile base.




Enhancell Hexmove ECHO-PLUS (Mobile Network Benchmarking Solution)

The Hexmove ECHO-PLUS by Enhancell is an easy-to-use, software-only portable solution for comprehensive mobile network benchmarking and optimization.

Running on commercial off-the-shelf Android tablets, Echo Plus transforms standard hardware into a powerful tool for professional network surveys. It streamlines multi-device testing for maximum efficiency:

  • Multi-Device Control: Control up to seven devices simultaneously (six Echo One handsets plus one scanner) over a single Bluetooth connection.
  • Software-Only & Cloud-Integrated: Runs on commercial Android tablets (Qualcomm chipsets supported), saving costs on custom hardware. Licensing is managed via a powerful Cloud service for easy administration, transferability, remote control, and automated software updates.
  • Seamless Multinetwork Testing: Perform multi-network and service testing with a single set of measurement configurations, enhanced by automatic device discovery.
  • Full 5G Support: Measures a wide range of 5G parameters.
  • Mapping & Analysis: Includes support for indoor and outdoor mapping (including iBwave format support for indoor floor plans) and easy analysis of measurement log files.
  • Scanner Compatibility: Supports various industry-standard scanners like PCTel and DRT, connecting via Bluetooth or USB.

Echo Plus is the intelligent, cost-effective solution for professionals needing to conduct efficient, real-time, large-scale network performance measurements exactly as their customers experience it.



SPECIFICATIONS

Model Echo Plus

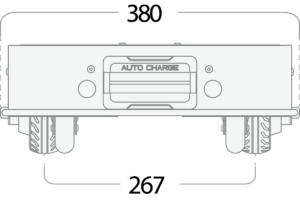

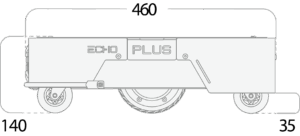

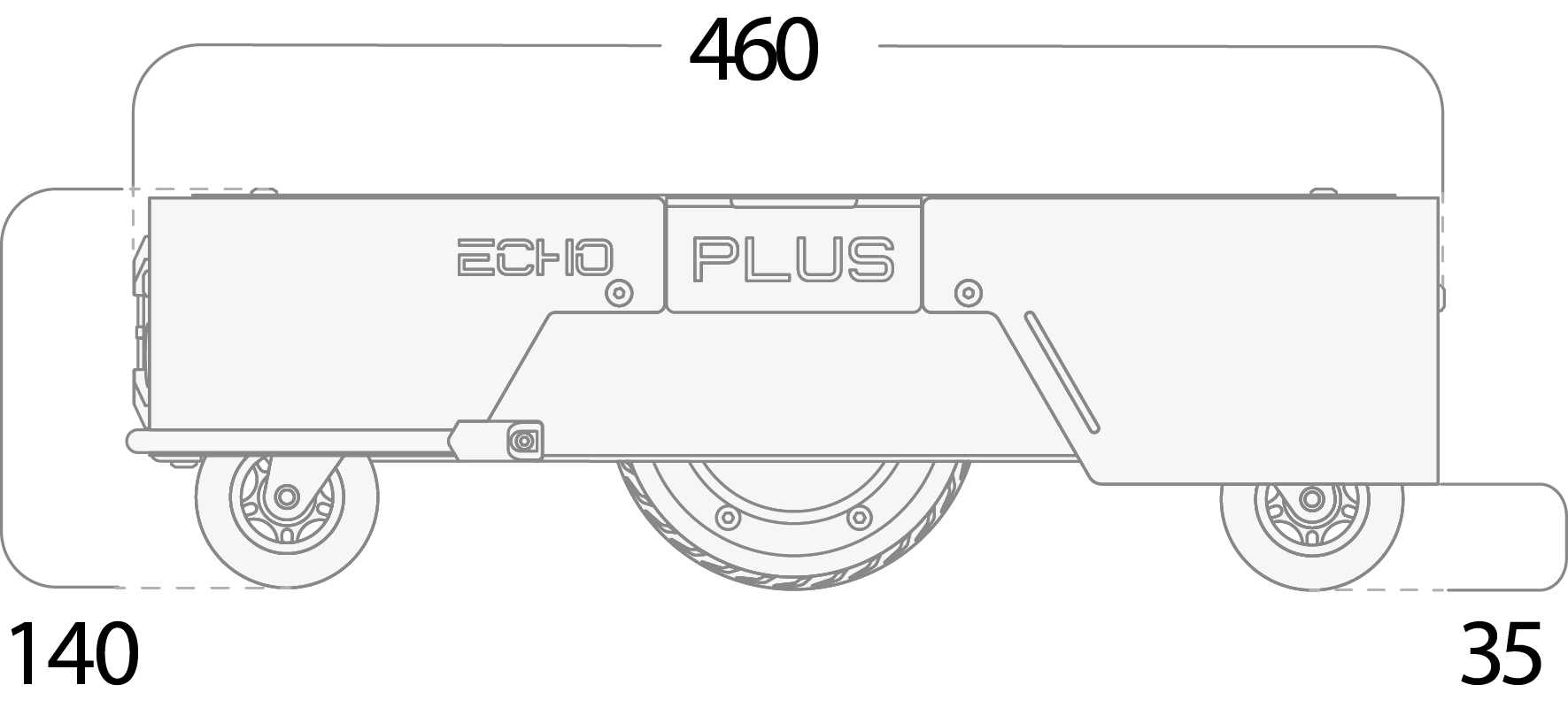

Dimensions L x W x H 460 × 380 × 140 mm

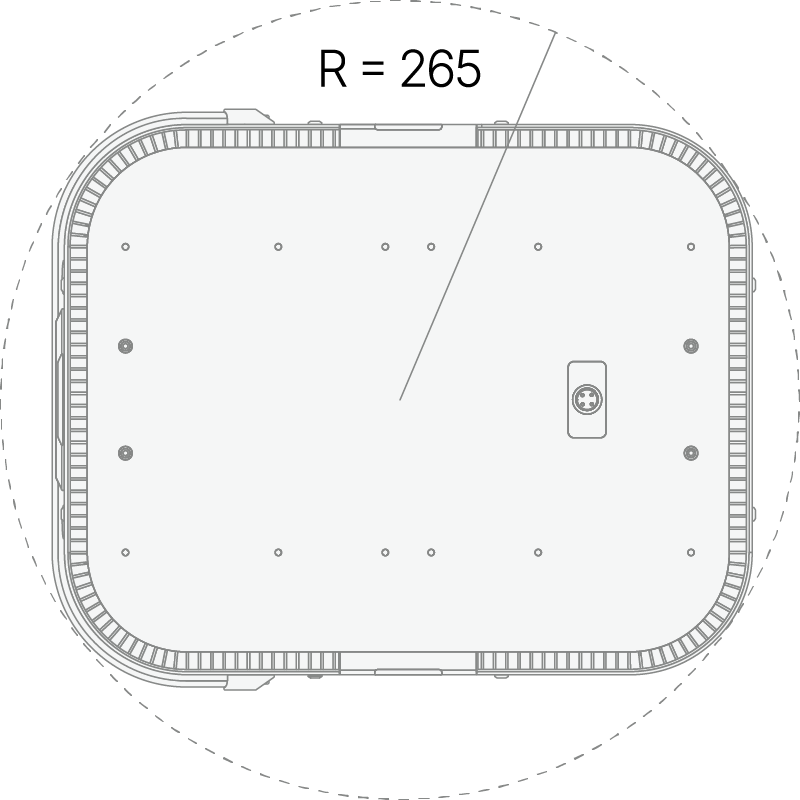

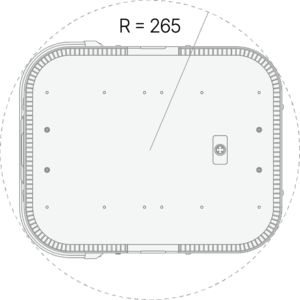

Turning radius 265 mm
Ground clearance 35 mm
Weight 16 kg
Payload 50 kg
Speed 2 m/s
Max slope
Max obstacle height (unloaded) 10 mm
Steering 2 differential wheels,
4 following wheels
Runtime [1] 8 – 10 h
Motors 2 × 100 W
Encoder 4096
Batteries 24 V / 10 Ah
Time to charge 5 h
Interface CAN
Ingress protection IP22
Operating temperature 0 °C to 40 °C

[1] The runtime is strongly influenced by the working conditions. Errors and technical modification subject to change.

Weight 16 kg
