Hexmove MARK 2 – MCNM

Key Features and Capabilities

• Targeted for Education and Research: Developed to be a highly adaptable platform suitable for universities, research labs, and developers.
• ROS Customisable Robotic Chassis: Fully compatible with the Robot Operating System (ROS), providing a powerful framework for development.
• Mecanum Wheels (MCNM): Provides exceptional movement capabilities, allowing for lateral, diagonal, and rotational motion.
• High Customization: The design allows for modifying the wheelbase and axle spacing and supports a variety of motion modes.
• Expandable Module Support: Easily equipped with a wide range of accessories and sensors, including:
  • Lidar and Camera systems
  • GPS and RTK/GNSS modules
  • 4G or 5G connectivity
  • Robotic arms and other custom modules
• Robust Specifications:
  • Payload: Up to 10 kg
  • Max Speed: 1.5 m/s
  • Interface: CAN bus
  • Battery Runtime: 3 to 5 hours (24 V / 5 Ah battery)
  • Suspension: Front wishbone

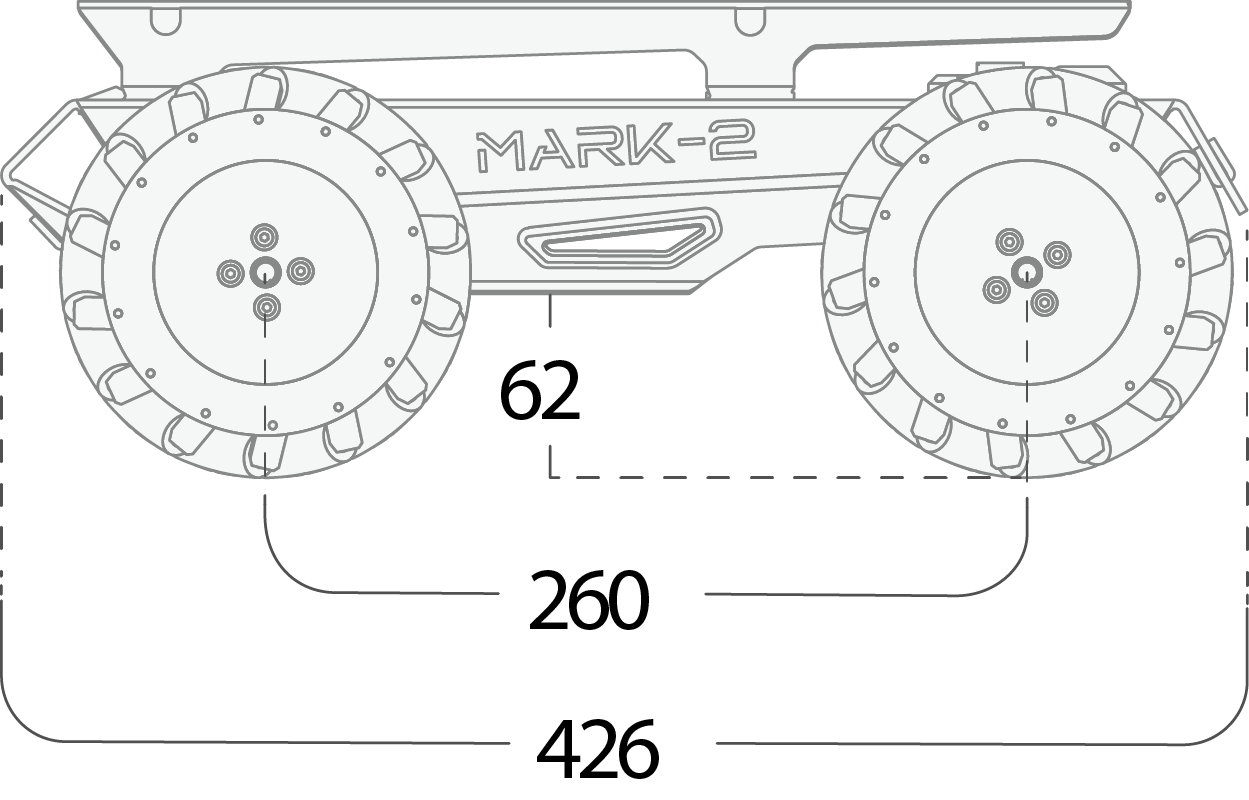

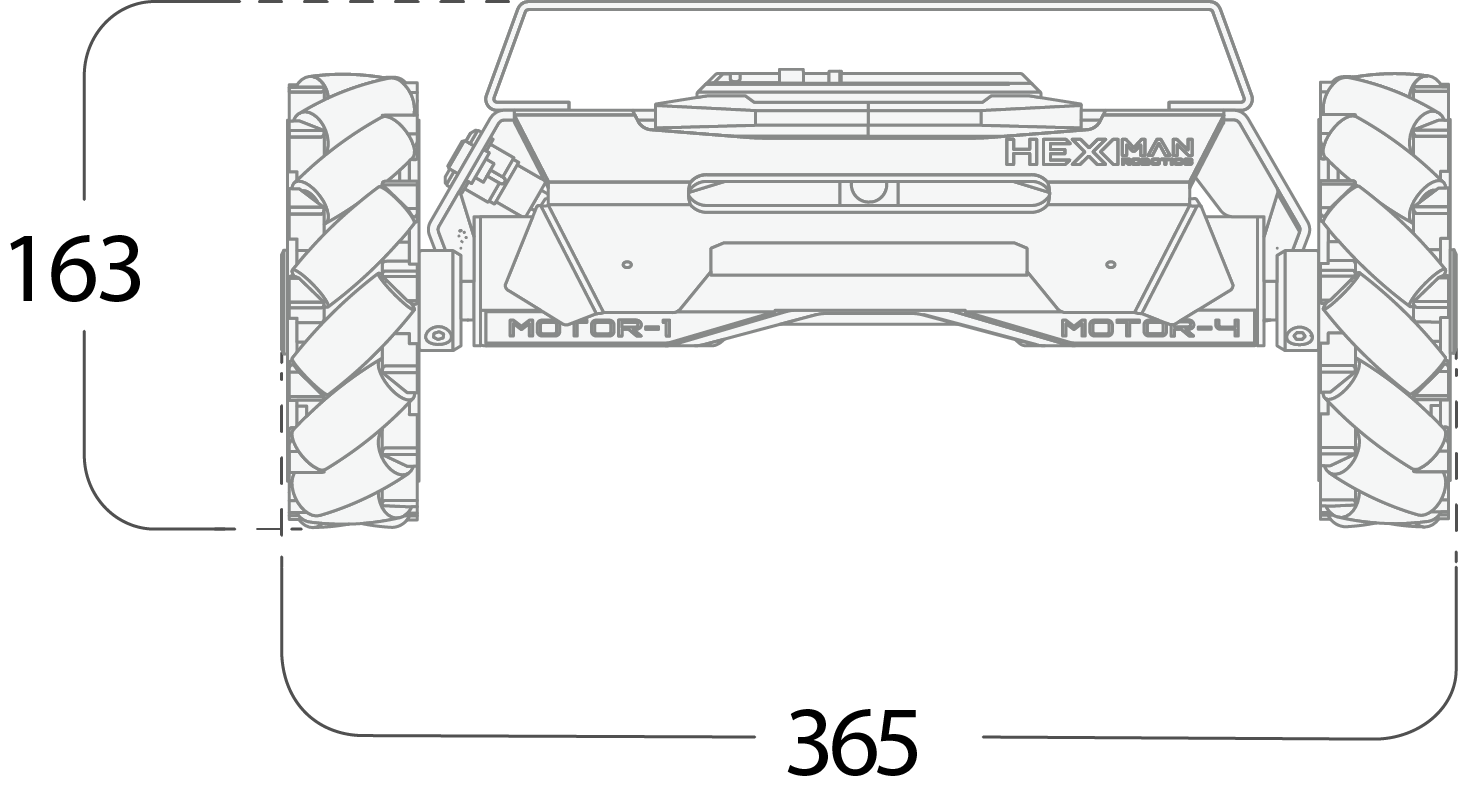

  • Dimensions (L x W x H): 426 × 365 × 163 mm

The Hexmove MARK 2 – MCNM is the ideal foundation for innovators looking to develop and test their own autonomous mobile robotic applications.
