Hexmove NEOS

The Hexmove NEOS is a robust, all-purpose mobile robotic chassis built for professional-grade outdoor applications. Featuring Ackermann steering, the NEOS is highly maneuverable and capable of reaching speeds up to 20 km/h.

(Price on request)

Key Features and Applications

Outdoor Performance: Specifically designed for various outdoor terrains, including urban roads, gravel, and asphalt. It can handle a maximum slope of $10^{\circ}$ and obstacles up to $100\text{ mm}$ (unloaded).
High Payload Capacity: Capable of carrying a useful load of up to $50\text{ kg}$ ( $10^{\circ}$ slope) or $80\text{ kg}$ ( $5^{\circ}$ slope), making it suitable for mounting various modules and sensors.
Versatile Development Platform: An ideal foundation for developing and deploying applications such as outdoor distribution, inspection, unmanned driving, and remote driving. It is designed to be quickly equipped with various modules to build specific functions.
Technical Specifications:
- Steering: Ackermann structure
- Maximum Speed: $20\text{ km/h}$
- Dimensions (L $\times$ W $\times$ H): $840 \times 626 \times 338\text{ mm}$
- Runtime: $5-8\text{ hours}$
- Communication: CAN bus (USB optional)

The Hexmove NEOS provides a reliable, high-speed, and durable platform for advanced robotic development and deployment in demanding environments.

SPECIFICATIONS

Model	Neos

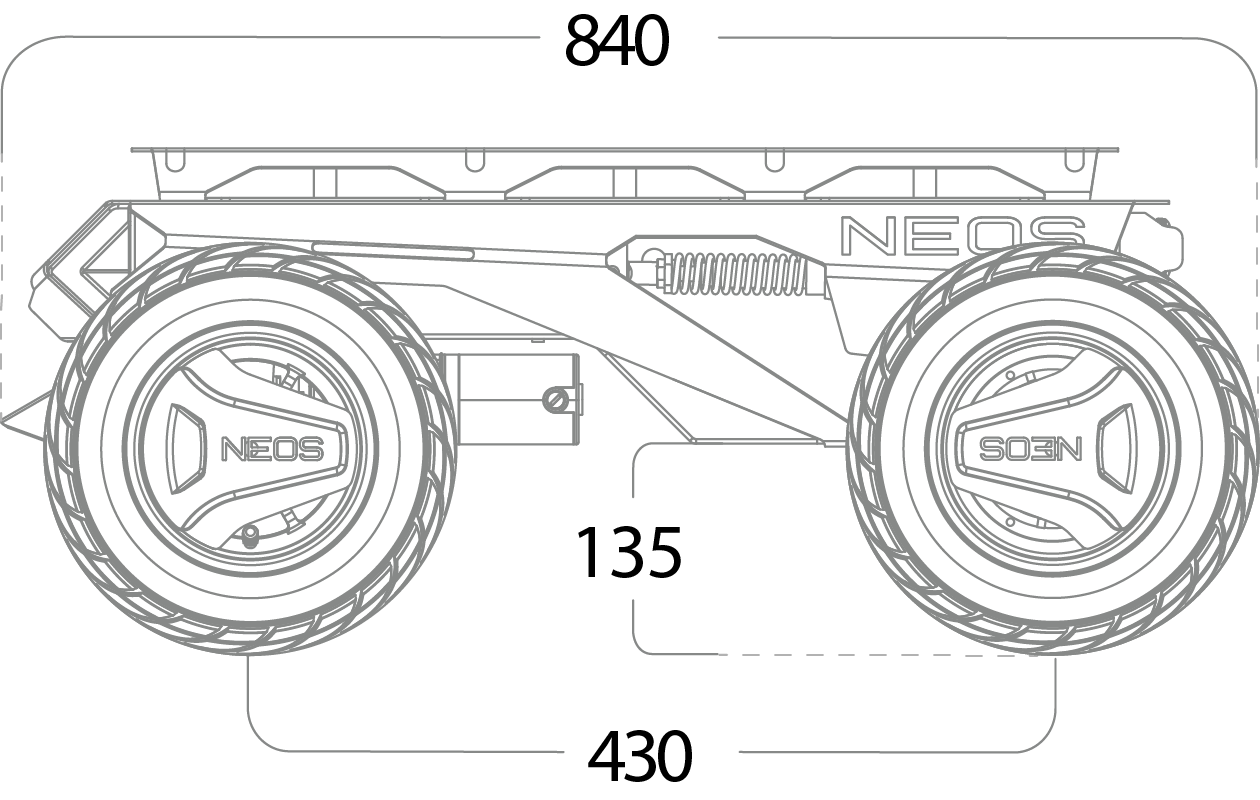

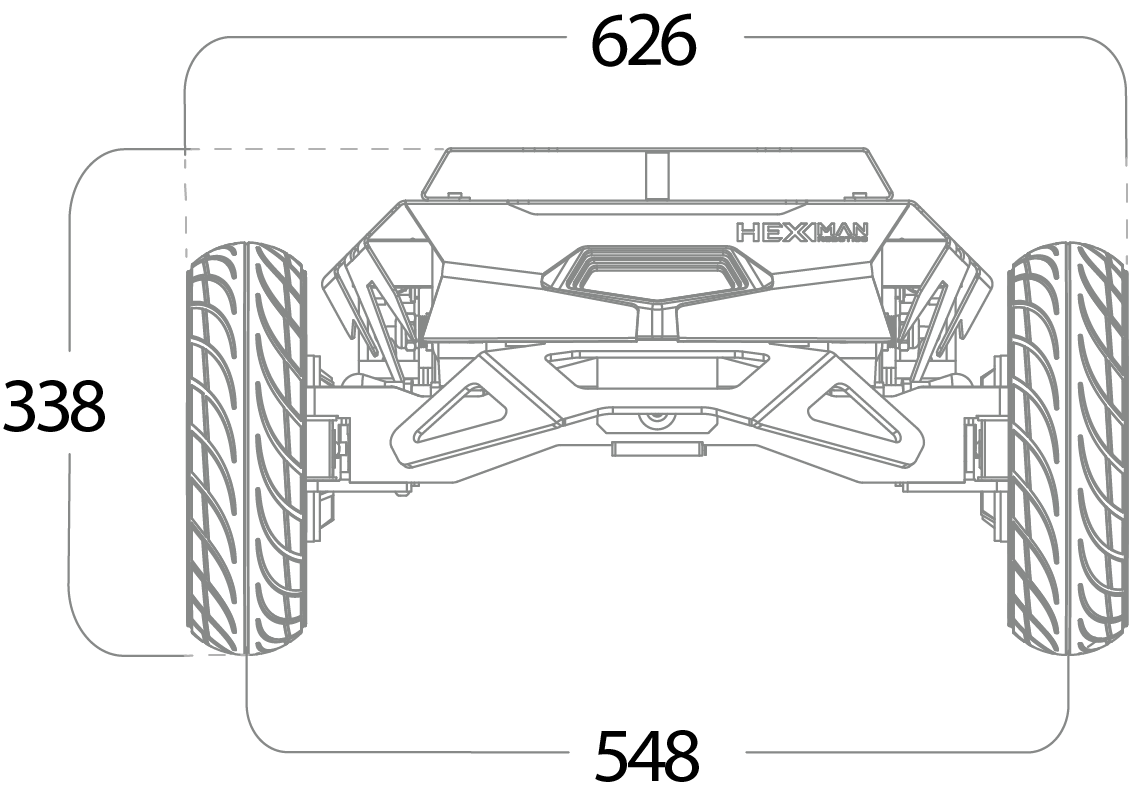

Dimensions L x W x H	840 × 626 × 338 mm

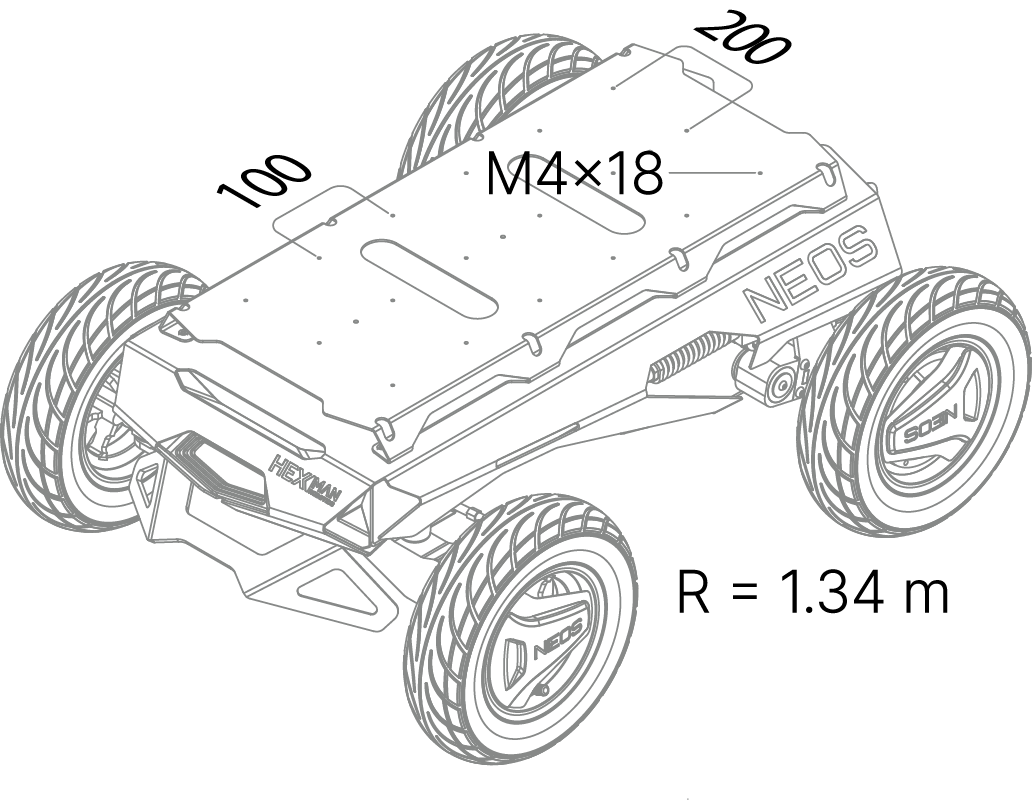

Turning radius	1.34 m
Ground clearance	135 mm
Weight	47 kg
Payload	50 kg (10°) / 80 kg (5°)
Speed	20 km/h
Max slope	10°
Max obstacle height	100 mm (unloaded)
Steering	Ackermann
Runtime [1]	5 – 8 h
Motors	2 × 350 W
Encoder	4096
Batteries	48 V / 15 Ah
Time to charge	3.5 h
Interface	CAN (USB optional)
Ingress protection	IP42 (IP65 optional)
Operating temperature	0 °C to 40 °C
