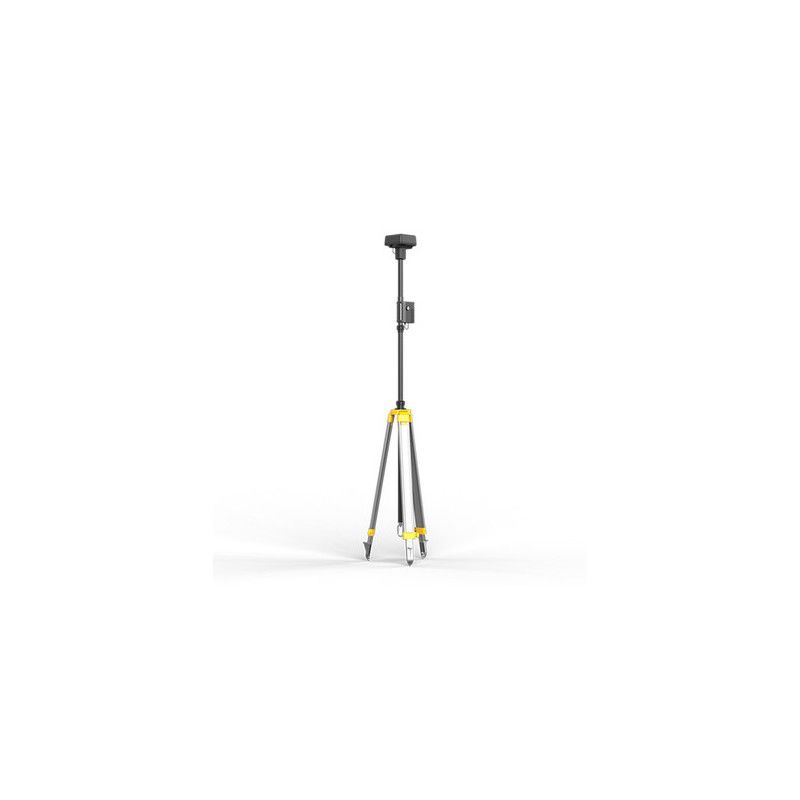

D-RTK 2 High Precision GNSS Mobile Station

Gain improved relative accuracy with centimeter-level precision positioning data using the D-RTK 2 High Precision GNSS Mobile Station, which supports all major global satellite navigation systems and provides real-time differential corrections.

• Supports: GPS: L1 C/A, L2, L5; BEIDOU: B1, B2, B3; GLONASS: F1, F2; Galileo: E1, E5A, E5B
• Connect multiple drones to conduct coordinated operations
• IP65 Ingress Protection

• D-RTK 2 Body × 1
• Extension Rod × 1
• Charging Hub × 1
• AC Power Adapter × 1
• Intelligent Battery (WB37) × 2
• Battery Cover × 1
• AC Power Cable × 1
• USB-C Cable × 1
• USB-C OTG Cable × 1
• Hex Key × 1

• Simultaneously receives: GPS: L1 C/A, L2, L5; BEIDOU: B1, B2, B3; GLONASS: F1, F2; Galileo: E1, E5A, E5B

• Positioning Accuracy:
  • Single Point
  • Horizontal: 1.5 m(RMS)
  • Vertical: 3.0 m(RMS)

• • RTK
  • Horizontal: 1 cm+ 1 ppm(RMS)
  • Vertical: 2 cm+ 1 ppm(RMS)
  • 1 ppm: For every 1 km increase in distance, the accuracy will be 1 mm less. For example, the horizontal accuracy is 1.1 cm when the receiving end is 1 km away from the base station.

• Ingress Protection Rating: IP65
• Operating Temperature: -20° to 55° C (4° to 131° F )
