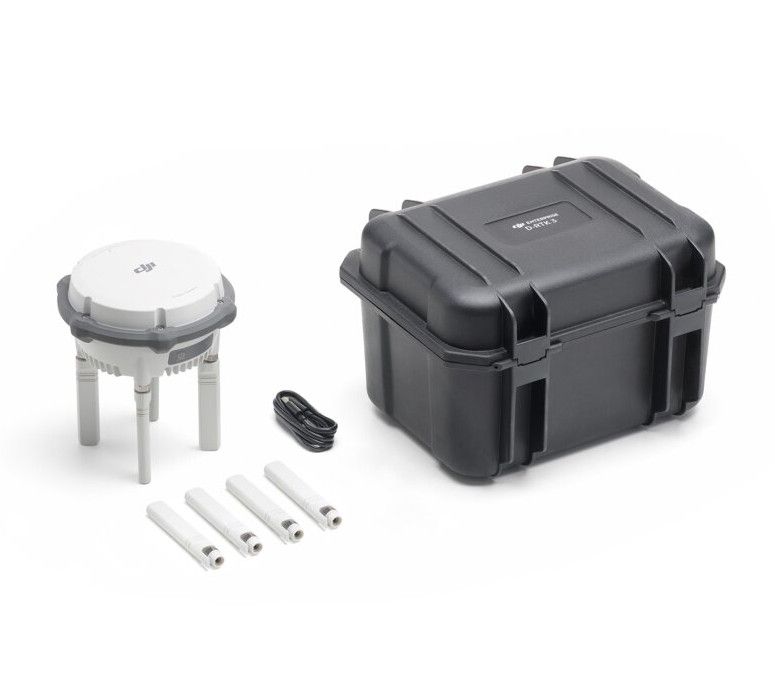

DJI D-RTK 3 Station

The DJI D-RTK 3 Multifunctional Station is a versatile tool for high-precision aerial surveying and mapping operations. It combines the functions of a base station, relay station, and rover station into a single, portable device.

1.321,95  Exc.VAT (1.321,95  Inc. 23% VAT)

Available on backorder

  • High-precision positioning: Provides centimeter-level positioning accuracy for multiple drones simultaneously.
  • Multifunctional capabilities: Operates as a base station, relay station, and rover station.
  • Long battery life: Offers up to 7 hours of operation in base station mode, 4 hours in relay mode, and 10 hours in rover mode.
  • Compact and portable: Weighs just 1.26 kg and features a compact design, making it easy to transport and set up.
  • Rugged and durable: Built to withstand harsh environments with an IP67 rating and operating temperature range of -20°C to 55°C.
  • Enhanced compatibility: Optimized for the DJI Matrice 4 Series, but also compatible with other DJI drones.

Benefits:

  • Improved accuracy: Enables more precise data collection for a wide range of applications, including surveying, mapping, construction, and agriculture.
  • Increased efficiency: Reduces the time and effort required for data collection and processing.
  • Expanded operational range: Extends the range of drone operations by acting as a relay station.
  • Versatility: Adapts to various operational needs with its multifunctional capabilities.

Positioning Accuracy:

  • Base Station Mode:
    • Horizontal: 10 mm + 1 ppm
    • Vertical: 15 mm + 1 ppm
  • Rover Station Mode:
    • Horizontal: 10 mm + 1 ppm
    • Vertical: 15 mm + 1 ppm

Satellite Systems:

  • Supports GPS, GLONASS, Galileo, BeiDou, and QZSS

Communication:

  • Radio: 433 MHz, 900 MHz
  • Cellular: 4G/5G (optional)

Battery:

  • Capacity: 9,960 mAh
  • Operating Time: Up to 8 hours

Physical Dimensions:

  • Size: 215 x 215 x 105 mm
  • Weight: 2.2 kg
Weight 0,25 kg
