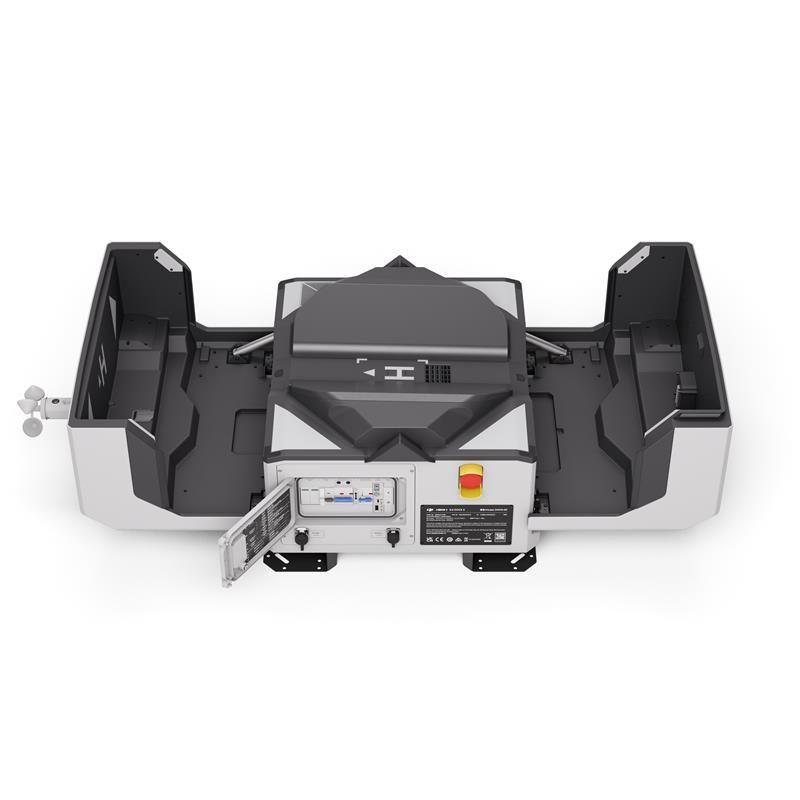

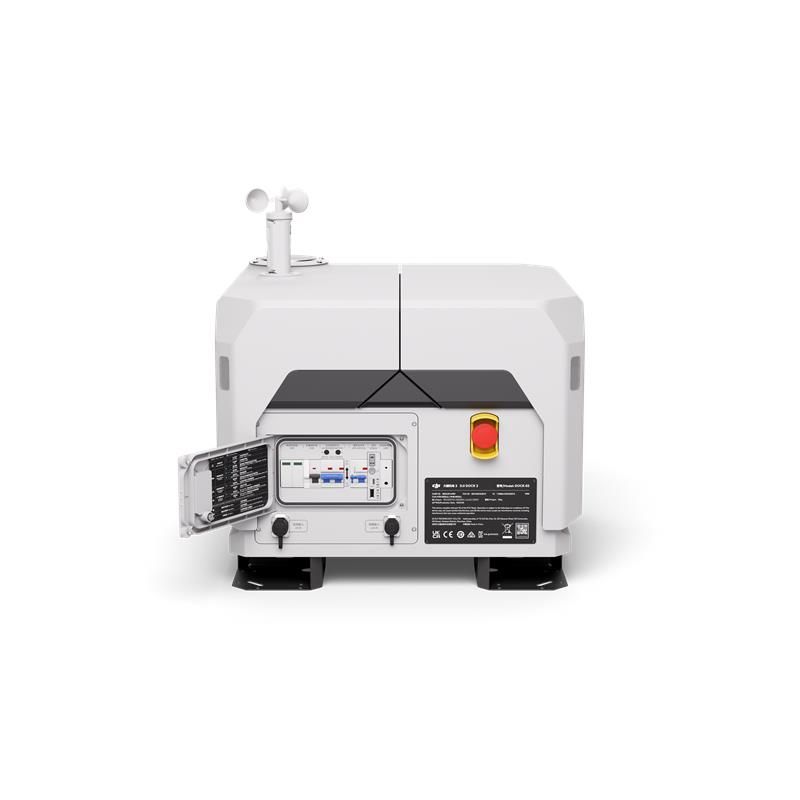

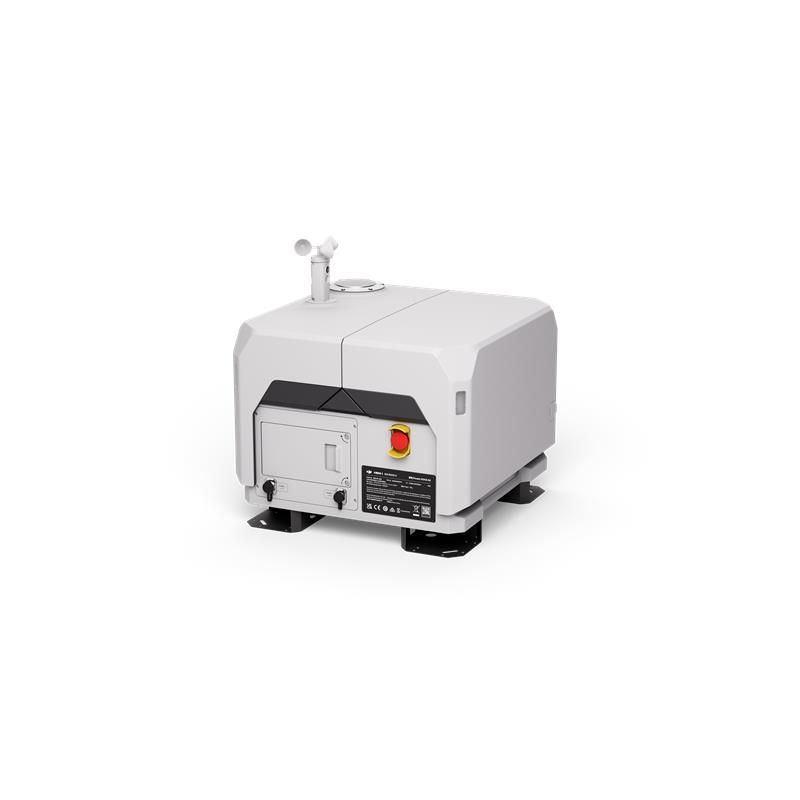

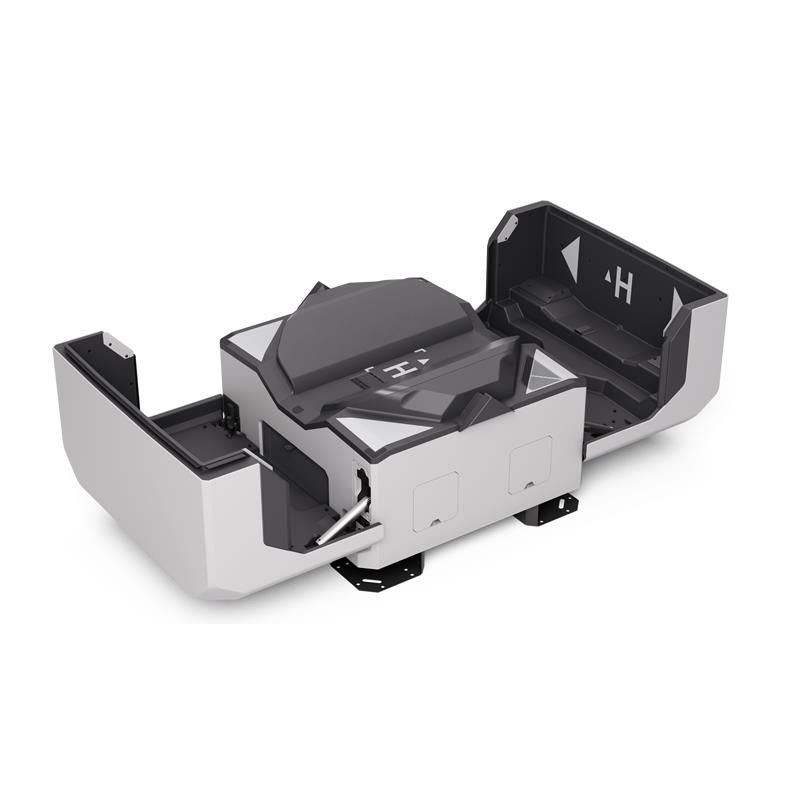

DJI Dock 2

Features

• Compact and Portable: The Dock 2 is considerably smaller and lighter (by 75% and 68% respectively) than its predecessor. This makes it easier to transport and deploy in remote or hard-to-reach locations, requiring only two people for setup.

• Fast and Efficient Operations: The Dock 2 can launch a drone and have it ready for a mission within 45 seconds. It also features a built-in pre-flight check system that inspects the drone’s propellers before takeoff, ensuring safety.

• Automated Missions: The Dock 2 integrates seamlessly with DJI’s FlightHub 2 software, allowing you to schedule and manage automated drone missions remotely. This provides greater efficiency and control over your drone operations.

• All-weather Capable: With an IP55 ingress protection rating, the Dock 2 can withstand dusty and wet environments. It also boasts a wide operating temperature range of -25°C to 45°C.

• Long-lasting Power: The Dock 2 comes with a built-in backup battery that can provide up to 5 hours of power in case of a primary power source outage.

Overall, the DJI Dock 2 is a powerful tool for enterprises looking to enhance their drone operations with features like automated missions, portability, and efficient deployment.

General Specifications

• Product Name

  • DJI Dock 2

• Total Weight

  • 34 kg (without aircraft)

    ^{The actual product weight may vary due to differences in batch materials and external factors.}

• Dimensions

  • Dock Cover Opened: 1228×583×412 mm (L×W×H)
    Dock Cover Closed: 570×583×465 mm (L×W×H)^{The above data does not include the height of the wind speed gauge (145 mm) but includes the height of the mounting base brackets (55 mm).}

• Input Voltage

  • 100-240 V (AC), 50/60 Hz

• Input Power

  • Max 1000 W

• Operating Temperature

  • -25° to 45° C (-13° to 113° F)

    ^{When the ambient temperature is below -20° C (-4° F), the dock is in standby status, and the aircraft cannot perform flight tasks.}

• Ingress Protection Rating

  • IP55

• Number of Drones Accommodated

  • 1

• Max Allowable Landing Wind Speed

  • 8 m/s

• Max Operating Altitude

  • 4000 m

• Receiving Frequency of RTK Base Station Satellite

  • Simultaneously receive:
    GPS: L1 C/A, L2
    BeiDou2: B1l, B2l, B3l
    BeiDou3: B1l, B3l
    GLONASS: L1, L2
    Galileo: E1, E5B

• Positioning Accuracy of RTK Base Station

  • Horizontal: 1 cm + 1 ppm (RMS)
    Vertical: 2 cm + 1 ppm (RMS)
