Bluemark DB121 (external battery)

The DroneBeacon db121 is a so-called direct or broadcast Remote ID long-range transponder, equipped with its own GPS receiver and needs to be powered by the drone. A transponder is also called add-on, tracker, tag or (wireless) number plate.  The db121 has two flavors: a transponder with enclosure or a PCB only. It is compliant with the (upcoming) standards in the EU and USA. The FAA has approved the db121/db121pcb for usage in the USA. Furthermore, the transponder is optimized for long range due to its transmit power and antenna design. It also supports all transmission protocols for maximum flexibility.

EASA – Declaration of conformity

105,00  (Exc.VAT)

3 in stock (can be backordered)

Db121: DoC RID000000088

Db121pcb: DoC RID000000089

EU Declaration Of Conformity

Specifications

FAA approval: RID000000088

Short-range radio: Bluetooth and WiFi 2.4GHz, output power (ERP): + 20 dBm (100 mW)

Positioning: GPS, GLONASS, 2.5m positioning precision

Antennas: 0 dBi WLAN/BLE antenna (internal omni-directional high-performance PCB antenna)

0 dBi GLS antenna

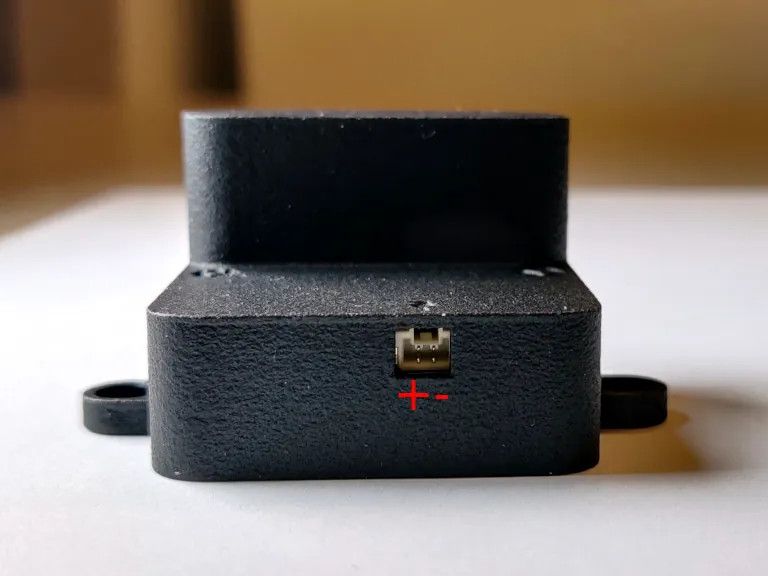

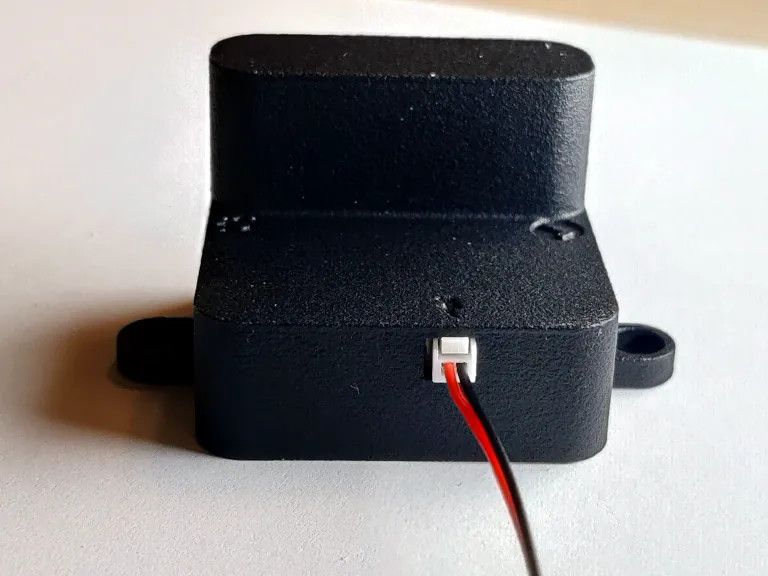

Power: 2-pin JST-GH 1.25mm connector 5 – 14 V

LED lights: status, configuration mode

Enclosure: plastic (nylon)

Fastening mechanism: 3M dual-lock or M5 screws using the screw noses

IP rating: IP43

Operating temperature: -5°C to +40°C

Dimensions: 36 x 38 x 28 mm. With screw nodes the dimensions are 36 x 55 x 28 mm

Weight: 11 grams

Weight 0,1 kg
