Bluemark DB122 (external battery & external GPS)

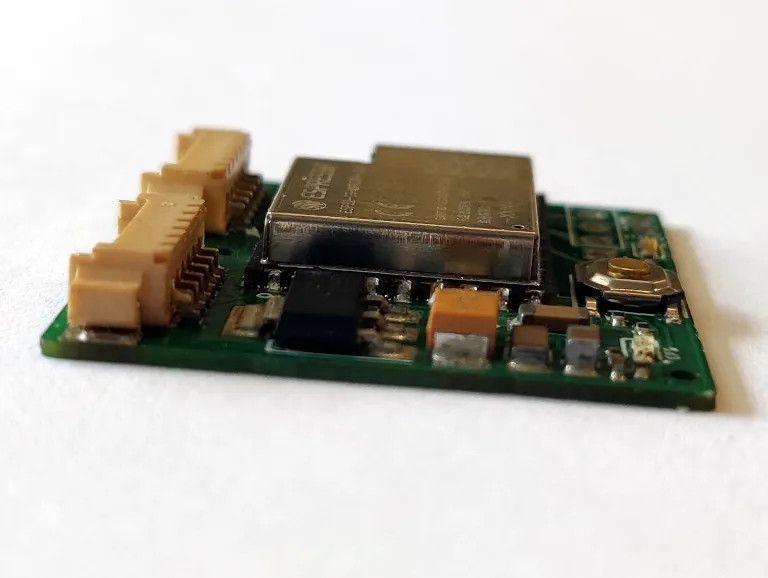

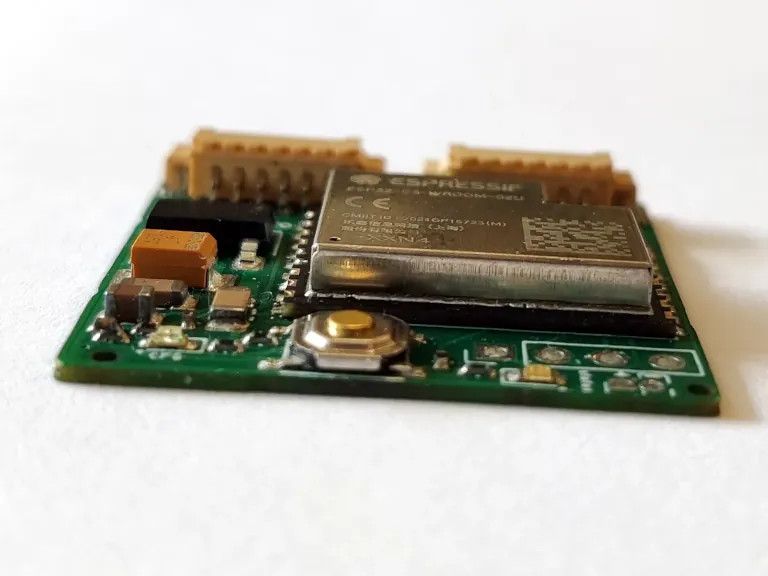

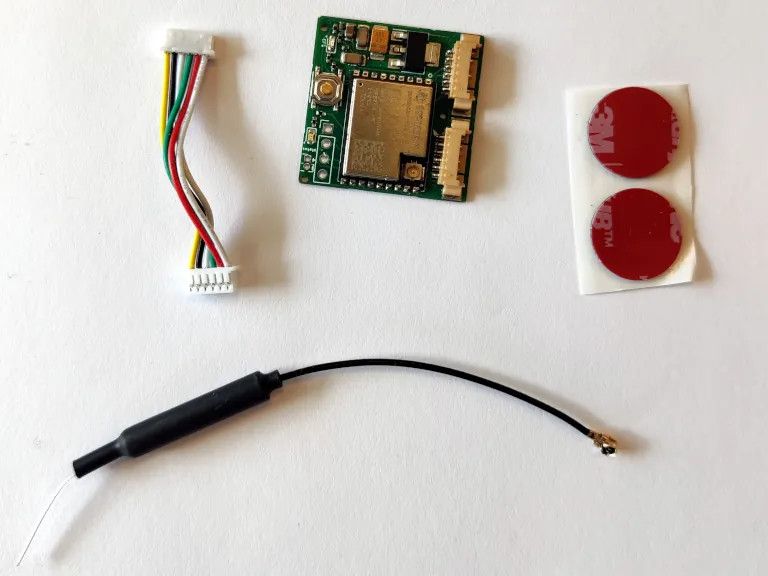

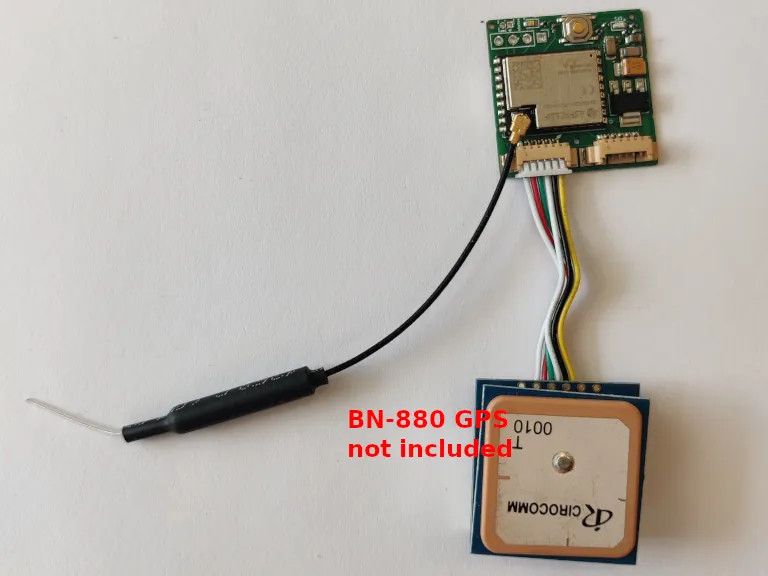

The DroneBeacon db122fpv is a so-called direct or broadcast Remote ID long-range transponder, that needs both an external GPS receiver and needs to be powered by the drone. It is low weight and designed for the FPV market, but can of course also be used for other drone applications as well. The db122fpv has two 6-pin Molex PicoBlade connectors. You need to connect a GPS receiver to the GPS IN port, such as the BN-880 GPS receiver. The module supports GPS receivers that output the NMEA GPS protocol. The GPS OUT connector needs to be connected to the drone for power. The board will also relay the received GPS data to this GPS OUT port.

The db122fpv is compliant with the (upcoming) standards in the EU and USA. The FAA has approved the db122fpv for usage in the USA. Furthermore, the transponder supports all transmission protocols for maximum flexibility.

EASA – Declaration of conformity

67,50  (Exc.VAT)

3 in stock (can be backordered)

Db122fpv: DoC RID000000175

EU Declaration Of Conformity

Specifications

FAA approval: RID000000175

Short-range radio: Bluetooth and WiFi 2.4GHz, output power (ERP): + 20 dBm (100 mW)

Positioning: external GPS receiver

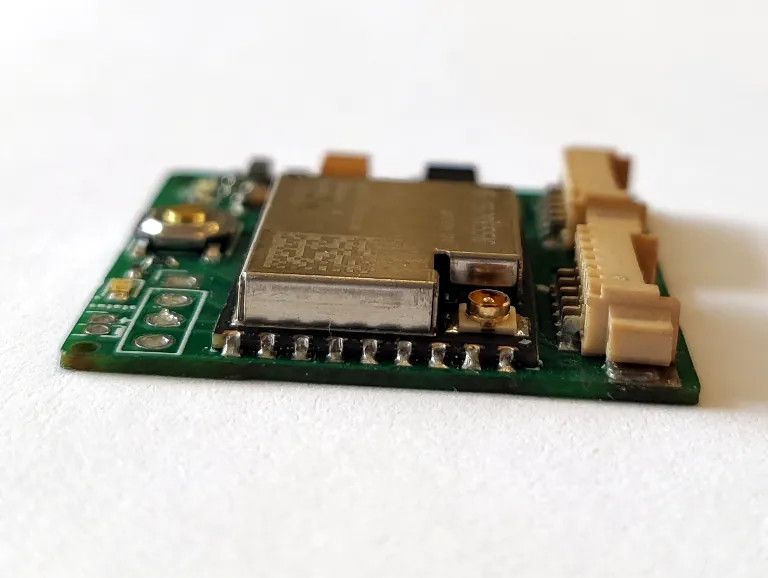

Antennas: 3 dBi WLAN/BLE antenna (IPEX connector)

Power: 6-pin Molex PicoBlade connector; voltage range: 4.5 – 15 V

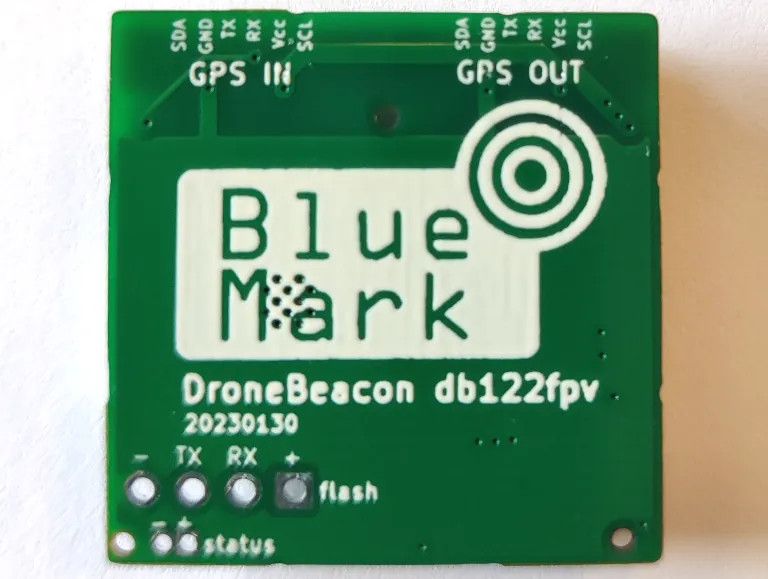

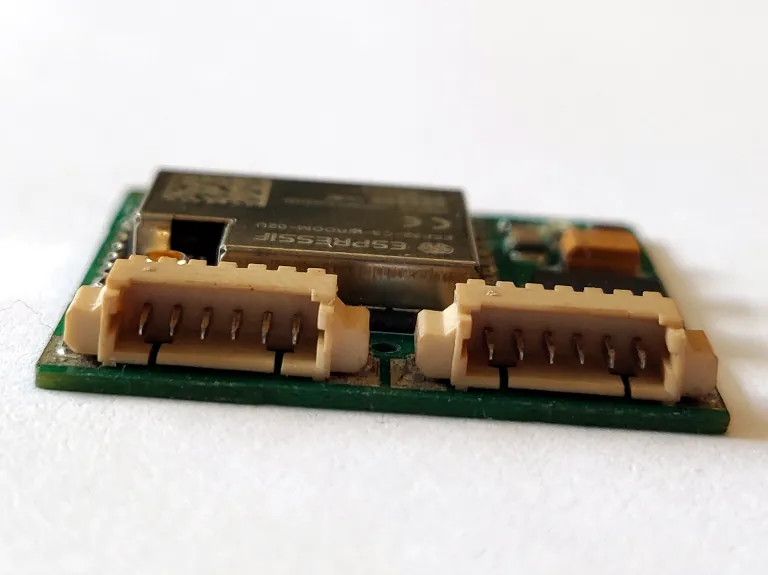

GPS connectors: 2x 6-pin Molex PicoBlade connectors: GPS IN and GPS OUT: SDA, GND, TX, RX, Vcc, SCL

LED lights: status, configuration mode

Fastening mechanism: double sided 3M sticker

Operating temperature: -5°C to +40°C

Dimensions: 28 x 28 x 4 mm

Weight: 4 grams (including antenna, excluding other cables)

Weight 0,1 kg
