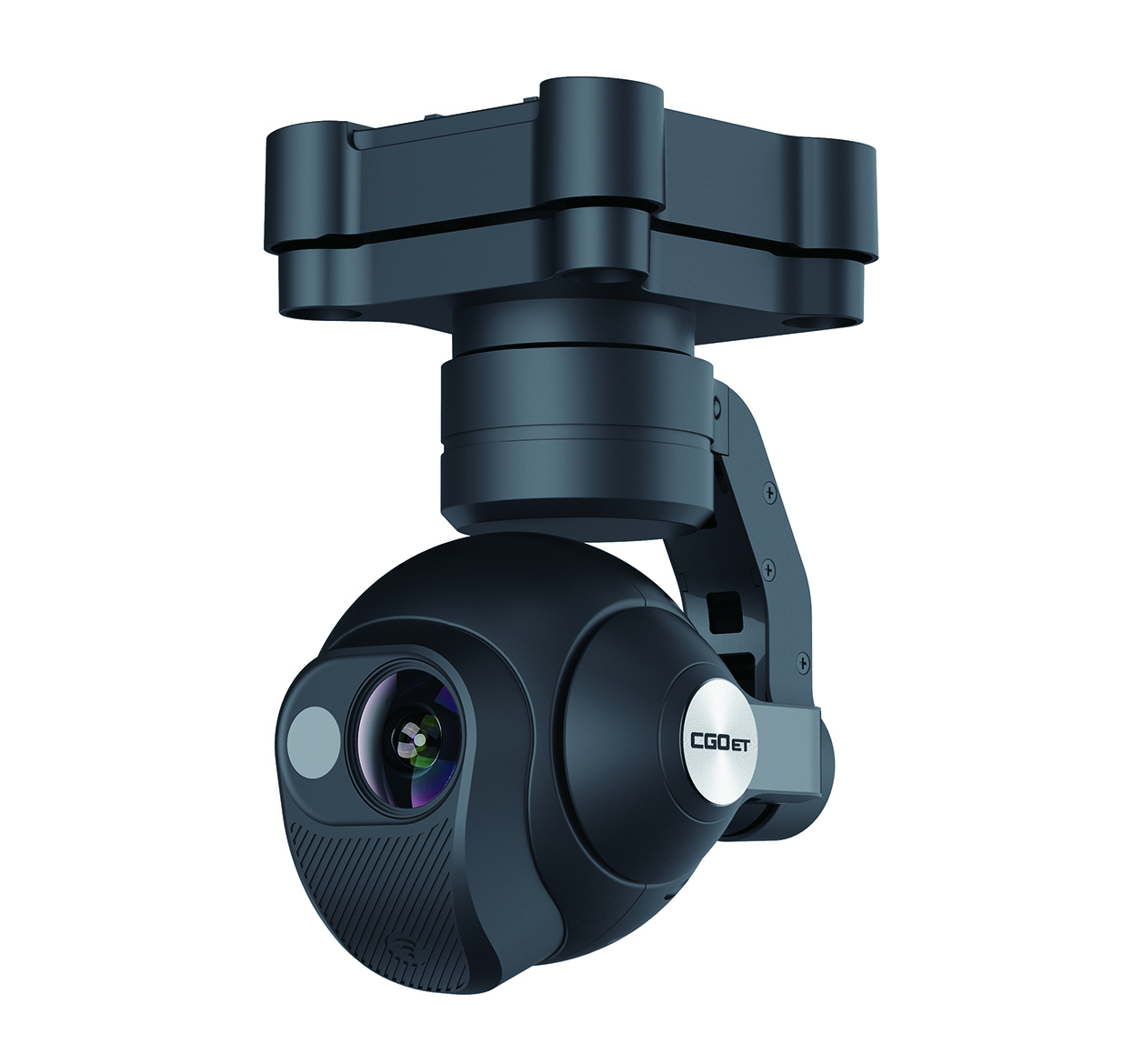

CGOET Thermal Imaging Camera (H520 only)

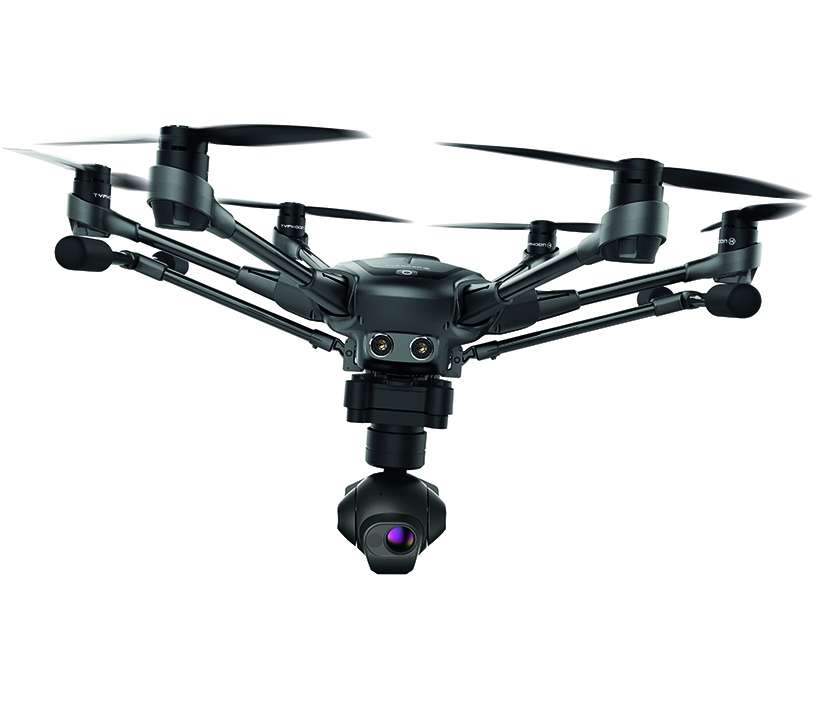

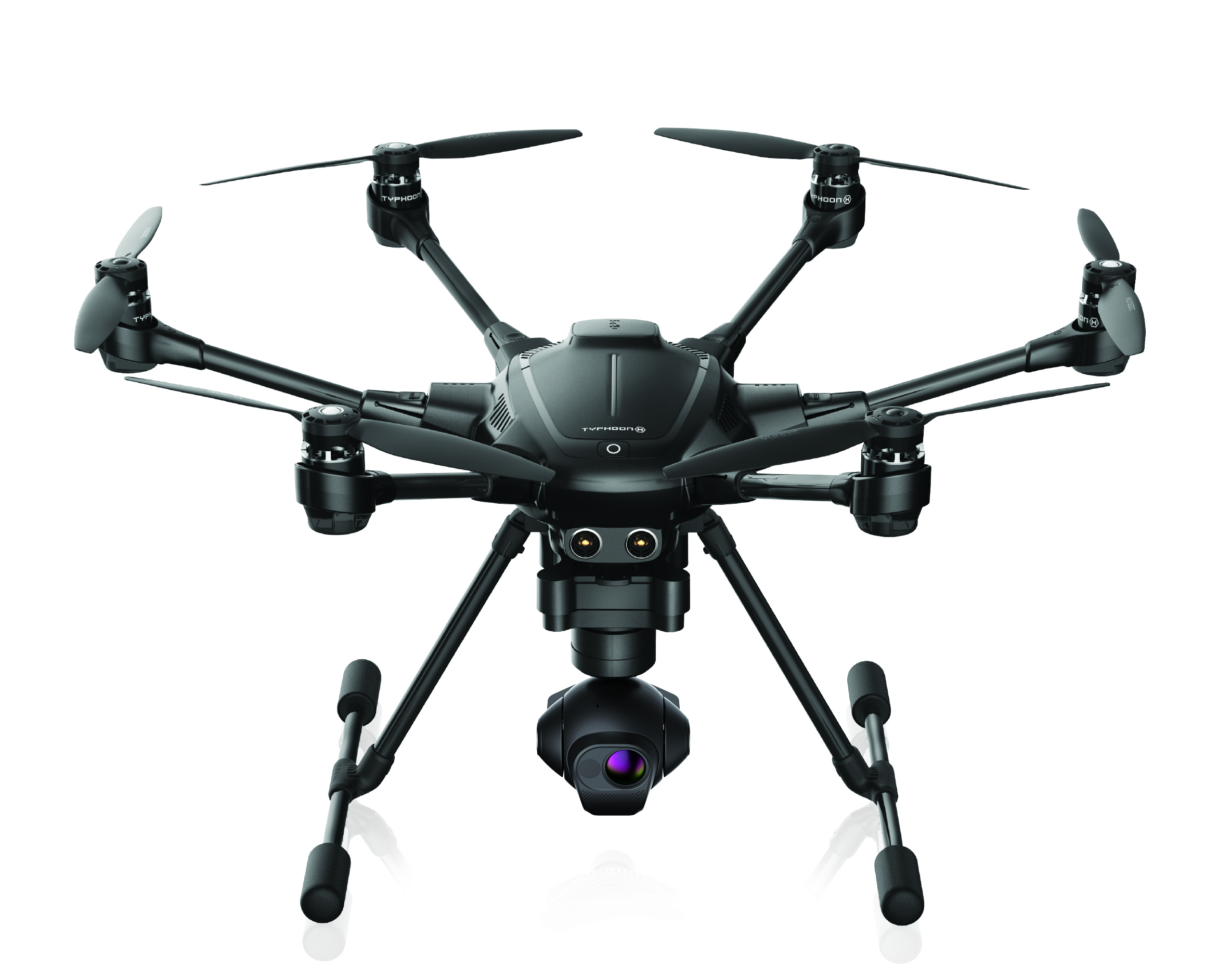

The CGOET is an innovative combination of 3-axis gimbal, thermal imaging camera and low-light camera. While the thermal imaging camera selectively measures the temperature in the image enabling it to display relative temperature differences, the low-light RGB camera has a 20 times higher sensitivity than the human eye and can still take excellent shots even in low light conditions. Both images are streamed live on your remote control at the same time, and can be viewed separately as a picture-in-picture or as an overlay. The CGOET gimbal is capable of continuous 360° yaw axis rotation. This unique feature, when combined with the H520 retractable landing gear, provides the operator with continuous 360 unobstructed camera view and the ability to continuously pan the camera without yawing the airframe.

(Price on request)

The CGOET is a cost-effective, safe and easy-to-use solution for countless application areas:

  • Building construction and inspection
  • Inspecting photovoltaic systems
  • Agriculture and forestry
  • Fire fighting
  • Police and customs applications
  • Search and rescue


  • Temperature measurement and display
  • Various color spectra allow an accurate visualization of heat sources
  • Adjustable temperature detection scale to focus on relevant areas
  • Gimbal mounted IR for smooth detection display
  • Large IR sensor detects greater detail in the dark than the human eye and is ideal for surveillance
  • Dual HD and infrared simultaneous recording
  • Thermal and available light recorded simultaneously, so video is frame-accurate in playback with embedded timecode
  • Compatible with Typhoon H


Dimensions: 81 x 108 x 138 mm
Weight: 275 g
Sensor: 1/3″ 2M
ISO Range: 100 – 12800
Shutter Speed: 1/30 – 1/8000s
Video Resolution: 1920 x 1080p / 30 FPS
Photo Format: JPEG, TIFF (14bit RAW)
Video Format: MP4
FOV, diagonal: Low-light camera: 90° // thermal imaging camera: 71°
FOV, horizontal: Thermal imaging camera: 56°
Sensitivity: < 50 mK
Thermal Imaging Camera: uncooled VOx microbolometer
LWIR Wave Length: 8 – 14 μm
Temperature Equalisation: automatic
Temperature Measuring Range: -10° – 180°
Weight 0,5 kg
