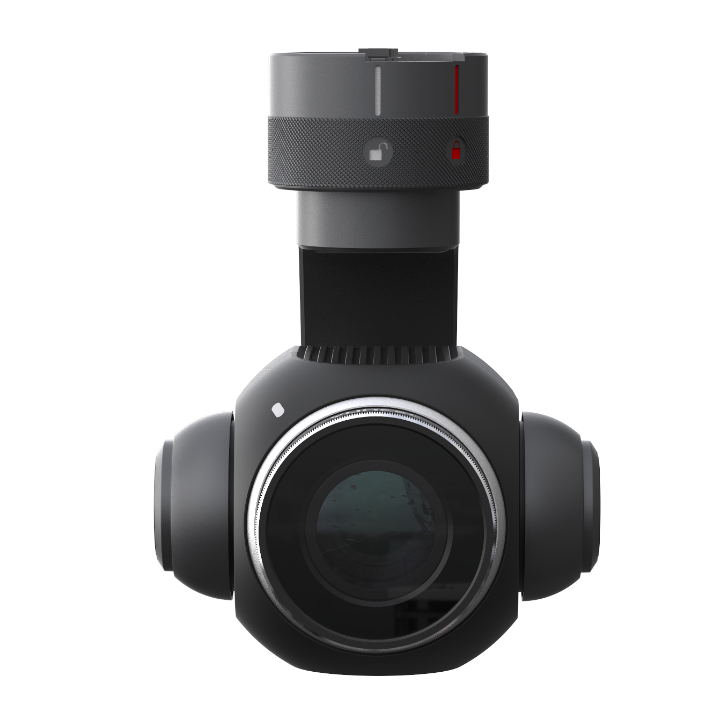

E90X Camera for H520E & H850-RTK

The E90x camera for the H520E/H520E-RTK & H850-RTK is a wide-angle, high resolution, gimbal stabilized imaging system perfectly suited for use in applications that require high quality photo and video. The E90x utilizes a 20 MP 1-inch sensor and the high speed image processing chip. The digital zoom feature allows the user to digitally zoom in and out with two finger gesture. Zoom factor is up to 8x, whereas the view on the ST16E is lossless up to 4x.


1.056,90  Exc.VAT (1.299,99  Inc. 23% VAT)

Available on backorder


  • 20 megapixel / 4K resolution at 60 frames per second
  • 1“ CMOS sensor
  • Digital zoom up to 8x
  • 23 mm lens with low distortion
  • 30 pin X-connector
  • 320° rotation of the gimbal for perfect image stabilization
  • Ideally suitable for professional film applications, 3D mapping / modeling and search and rescue
  • Compatible with H520E/H520E-RTK & H850

Technical Specs:

Weight: 300g
Operating Temperature: -10°C – 40°C
GIMBAL: —————
Angular vibration range: ±0.02°
Mount: Detachable
Max. Angular velocity: Tilt:30°/s, Pan:120°/s
Controllable range: Tilt:+30°to-120°,Pan:±165°
CAMERA: —————
Sensor: CMOS 1″ Effective Pixels:20MP
Camera Lens: FOV 91° F/2.8,23mm format equivalent
Photo Resolution: 3:2 (5472 x 3648); 4:3 (4864 x 3648); 16:9 (5472 x 3080)
Video Resolution: H.264 4096×2160(24/25/30/48/50/60p) 3840×2160(24/25/30/48/50/60p) 2720×1530(24/25/30/48/50/60p) 1920×1080(24/25/30/48/50/60/120p) 1280×720(24/25/30/48/50/60/120p)
Photo Format: JPG, JPEG+DNG
Video Format: MP4
Photo Modes: Single, Time Lapse
Exposure Modes: Auto Exposure, Manual Exposure
Exposure Compensation: ±3.0
Metering Mode: Spot Metering, Center Metering, Average Metering
Electronic Shutter: 4–1/8000s
White Balance: Auto,Incandescent,Sunrise,Sunset,Sunny,Cloudy, Fluorescent,Lock
ISO Range: 100 – 6400
Weight 0,5 kg
