The 5th Generation of the Swellpro Waterproof Drones has arrived – and it’s better than ever.
The SD4 represents over seven years of design improvements and experience, resulting in Swellpro’s most powerful all-digital floating & flying platform to date.
Without doubt a new benchmark for Waterproof Drones has again been set, quite simply there is no drone in the world like it.
- IP67 Rated Waterproof Drone
- IP66 Rated Controller – Now With The Option To Mount A Smart Phone Or Tablet
- 5KM Image Transmission Range On The Standard Antennas
- Upgraded 30 Minute Flight Time
- 2KG Payload Capacity
- Slide-in Smart Battery
The SD4 comes packed with loads more features and an even bigger range of payloads including the established three axis gimbal camera, which now shoots RAW files.
A collection of payload release mechanisms are still available as well as a gamechanging thermal imaging camera option. The Splashdrone 4 also comes equipped with a new and improved powerful mobile APP.
Characteristics
Seawater-proof body with IP67 protection, Waterproof remote control with IP66 protection, Image transmission up to 5 km, Automatic power change, Payload capacity up to 2 kg, Flight autonomy up to 30 min, Removable Smart Battery, and features like Dynamic Return to Pilot and more.
SplashDrone 4 is the 5th generation waterproof drone that represents SwellPro’s 7 years of knowledge in drone waterproofing technology.
SplashDrone 4 is designed to have the best waterproofing technology in the industry.
The rigid and strong fuselage is made of industrial grade ABS. Every SplashDrone 4 is factory sealed down to the finest detail and air pressure tested for our exclusive 100% waterproof guarantee with IP67 protection. The waterproof motors and internal electronics are also coated with a corrosion-resistant coating that adds an extra layer of protection.
New SplashDrone 4 remote control
Waterproof remote control, you can even throw it into the water or rinse off the accumulated sand, the remote control floats, you will be safe with its IP66 protection. Built-in GPS offers a variety of new features, including real-time tracking, dynamic return to pilot, and more. In addition, it is now capable of offering connection to multiple devices.
The innovative, patented Smooth+ flight control allows the pilot to fine-tune the SplashDrone 4’s roll and yaw.
Multifunctional payload options
New multifunctional modular payload system and its open interface design, the SplashDrone 4 can be quickly adapted to different missions.
The SD4 allows adding one of the camera modules (GC3-S or GC3-T or GC2-S or GC1-S or FAC) and at the same time the payload release module (PL1-S), which is used to transport and release a float, bait, vest, … with a total load capacity of up to 2kg.
This means that the PL1-S module (load release) can be coupled with any of the camera modules (GC3-S or GC3-T or GC2-S or GC1-S or FAC) at the same time.
Unmatched performance drive system
With more powerful 740Kv motors, 40A ESC coupled with an optimized aerodynamic design allow for tight, responsive and full control of the SplashDrone 4 in any weather conditions. The SD4 is resistant to force 7 beaufort winds (33 knots – 60 km/h – 31 mph). And with the capacity to load up to 2Kg of weight.
Smart Battery (IB4)
The new IB4 battery is removable allowing quick battery replacement. The new IB4 battery has an internal management system to manage energy (both charging and discharging). High performance 6600 mAh lithium technology cells provide the SD4 with up to 30 minutes of flight time.

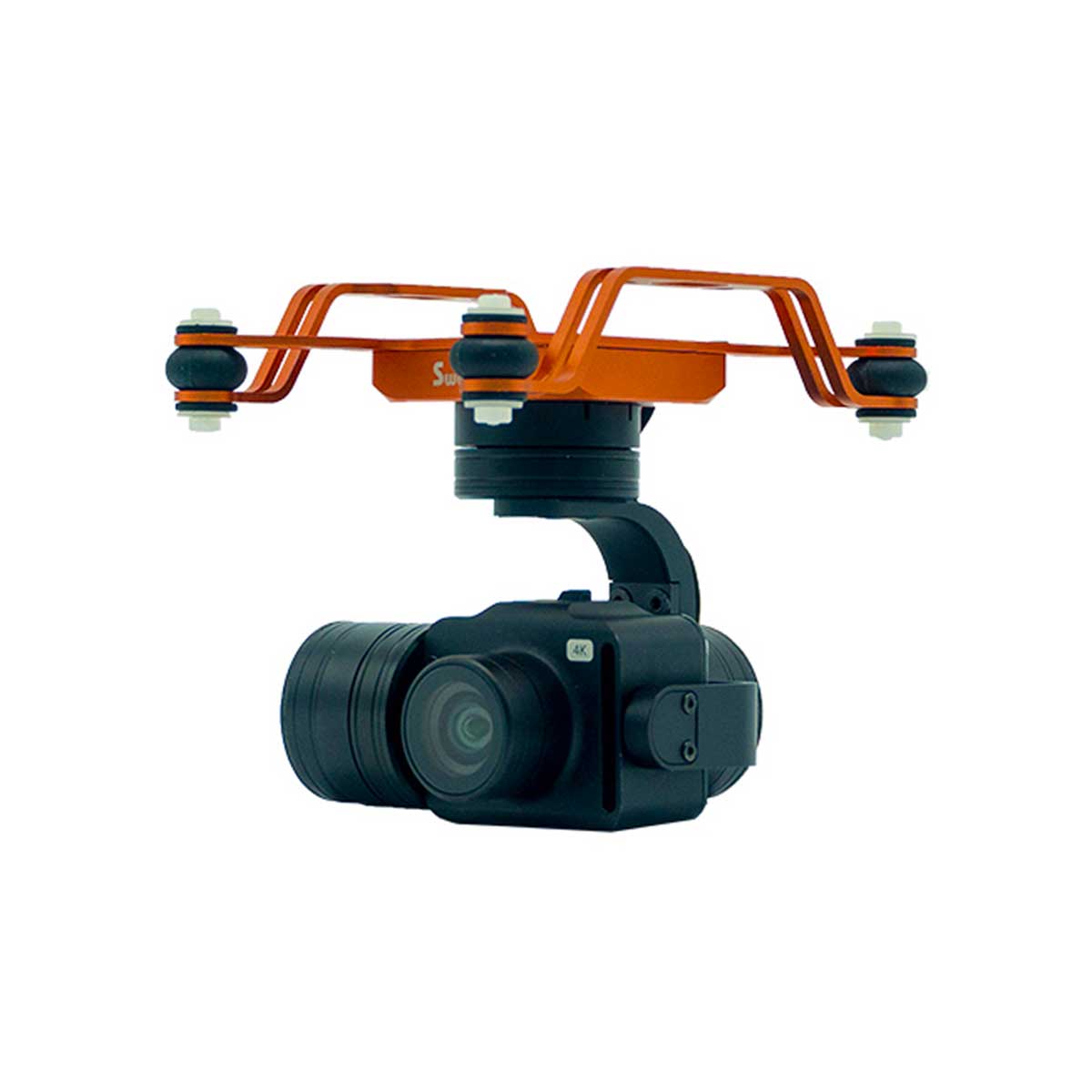

GC3-S 4K 3 AXIS GIMBAL 4K WATERPROOF CAMERA
Camera | |
Max Video Bitrate: | 64 mbps |
Photo Formats: | JPEG / DNG |
Photo Resolutions: | 4:3/16:9 12M pixel |
Video Formats: | MP4, MOV |
Video Resolution: | 4K: 3840*2160/30P | 2.7K: 2704*1520/60P | FHD: 1920*1080 30/60/120p | HD: 1280*720/240p |
Weight: | Approx. 310g |
Working Temperature: | -10℃ to 40℃ |
IP Rating: | IP67 |
Sensor: | 1/2.3″ 12M SONY CMOS |
Lens: | F4.53mm f/2.65, FOV: 92.6° |
ISO Range: | 100 – 3200 |
Shutter Speed: | 16 – 1/16000 s |
Size: | 113 * 92 * 110mm |
Supported SD Card Types: | Micro-SD card with a maximum capacity of 128GB, write speed ≥15 MB/s, supports Class 10 or above & UHS-1 rating |
Photo Modes: | Single shot, Burst Photo: 3/5/10 pcs. Interval Photo: 1/3/5/10s |
Gimbal | |
Axis: | 3 axis (pitch, roll, yaw) |
Pitch: | -90° to 0° |
The Splash Drone 4 includes the following items:
- ×1 Splash Drone 4 Drone
- ×1 GC3-S 4K 3 Axis gimbal 4K waterproof camera
- ×1 SD4 Remote Control
- ×2 Pair of Propellers
- ×1 Smart Battery (IB4)
- ×1 Charger for IB4
- ×1 AC Power Cable
- ×1 Power Cable for Remote Control
- × 1 Micro USB Cable
- ×1 Hex Screwdriver
- ×2 Hex Screws
- ×1 Barometric Vent (extra)
- ×1 User Manual
- ×1 Certificate
- ×1 Maintenance Guide
- ×1 Carrying Case.
