Yuneec Typhoon H3 w/ ION L1 Leica Camera

1.625,00  (Exc.VAT)

UNLIMITED PERSPECTIVES AND NEW, CREATIVE POSSIBILITIES

With the Typhoon H3 and the ION L1 Pro camera developed in partnership with Leica, Yuneec and Leica Camera AG bring the best of their respective worlds together to bring Leica photography to the skies. The H3 has been specially developed for photographers and videographers who want to rediscover the world from above in a new look. Thanks to the use of high-quality materials and the implementation of a wide range of flight functions in combination with a 1” CMOS camera sensor, it offers you a sophisticated and perfectly coordinated overall system for you to realize your photographic ambitions. The safe and reliable hexacopter design featuring 6 rotors remains stable in the air – even when it’s windy outside. Furthermore, with the aid of the stabilized 3-axis gimbal, you can take perfectly stabilized and sharp 20 MP photos and up to 4K videos at 60 frames per second.


Available on backorder

New standards in aerial photography
User-defined image mode and focus settings, lossless digital zoom and superior image quality make the ION L1 Pro the camera of choice in its class for all aspects of aerial photography. A wide range of functions that come in the top-level quality for which Leica is known enable you to fully tap into the photographic potential of the ION L1 Pro. The Cruise Control feature keeps the speed of the drone constant, so that you can fully concentrate on your camera shot. With the integrated 3-axis gimbal and the drone’s retractable landing gear, the camera can rotate through 360° unrestrictedly and produce flowing panoramic shots. Thanks to the short JPEG intervals, hyperlapse videos can also be created without problems.

Typhoon H3 – Drone data at a glance

  • Sturdy hexacopter with 6 rotors & up to 25 minutes flight time
  • Retractable landing gear
  • PX4-based flight controller
  • Cruise control for controlled shots
  • Intelligent auto flight modes: Follow Me, Orbit, Journey, Curve Cable Cam
  • Return Home and Auto Landing functions
  • Obstacle detection
  • 5-rotor mode activation in the event of rotor failure
  • Redundant control signal & Geo Fence setting
  • Additional safety mechanism to detect proper battery engagement
  • Rechargeable and changeable battery
  • Retractable arms for ease of transportation
  • Team mode option for separate copter and camera control (additional ST16S required; sold separately)

ION L1 Pro – Camera data at a glance

  • Developed in cooperation with Leica Camera AG (co-engineered with LEICA)
  • 1” CMOS sensor, 20 MP, up to 4K @ 60 FPS, up to 100Mbit

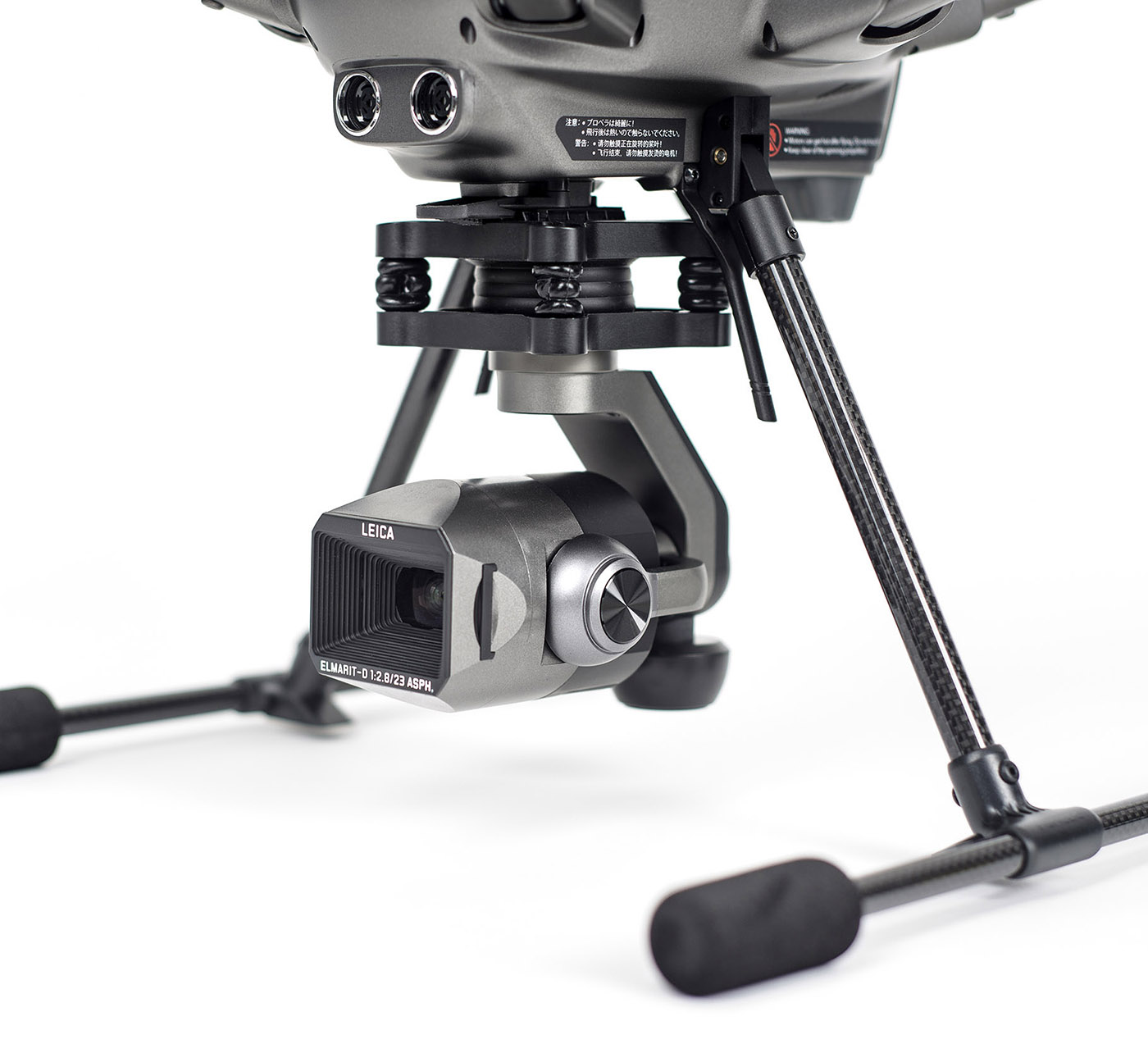

  • Integrated 3-axis gimbal with unrestricted 360° view
  • Leica optimized and calibrated image modes (AWB, color reproduction, sharpening, de-noising, etc.)
  • Leica calibrated DNG with corresponding ADOBE profile
  • Lossless digital zoom
  • 10-bit YLog video mode based on Leica specifications
  • Semi-automatic ISO/shutter & 1/3 step setting of EV/ISO/shutter
  • Wide Dynamic Range (WDR)
  • Auto Exposure Bracketing (AEB)
  • Short JPEG intervals for hyperlapse videos
  • User-defined picture mode & sharpness settings
  • Professional histogram
  • Panorama shots

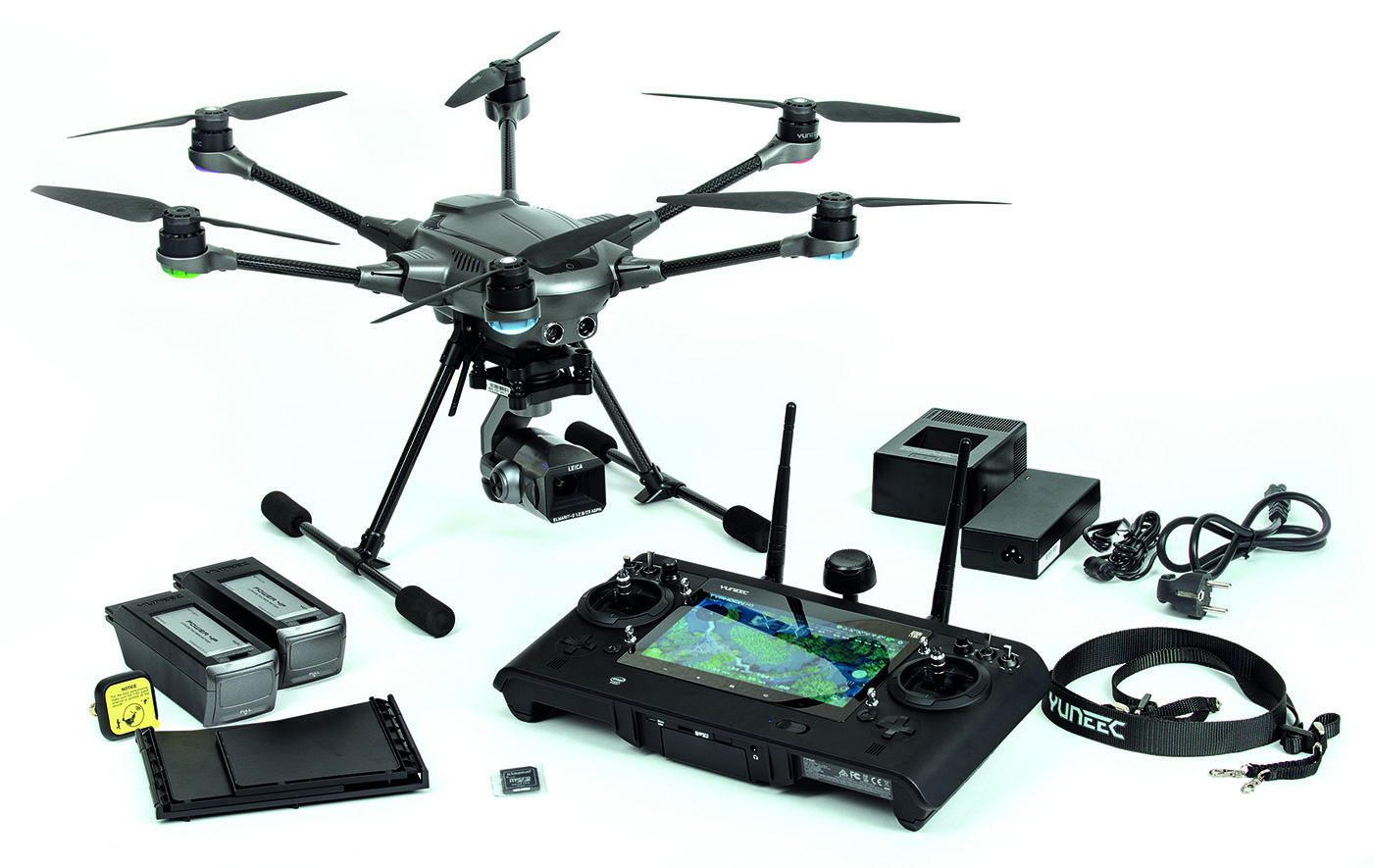

Box Content:

  • Typhoon H3 Hexacopter
  • ION L1 Pro camera co-engineered with Leica
  • ST16S remote control
  • 2 batteries
  • charger
  • neck strap for ST16S
  • optional patch antenna
  • SD card
  • USB and power cable
AIRCRAFT
TAKEOFF WEIGHT 1985 g (incl. camera)
FLIGHT TIME up to 25 min
DIAGONAL LENGTH (WITHOUT ROTOR BLADES) 520 mm
MAXIMUM FLYING ALTITUDE 500 m
MAX TAKEOFF ABOVE SEA LEVEL 5000 m
MAXIMUM RATE OF ASCENT 5 m/s
MAXIMUM RATE OF DESCENT 3 m/s
MAXIMUM FLIGHT SPEED 20 m/s
MOTORS 730 kV
BATTERY 4S 5250mAh LiPo
OPERATING TEMPERATURE 0°C – 40°C
STORAGE TEMPERATURE -10℃ to 50℃



OBSTACLE AVOIDANCE
SENSOR Ultrasonic Sensor
FLIGHT SPEED 4 m/s
OPERATING ENVIRONMENT Height>1.5m, Distance to obstacles<5m



REMOTE
OPERATING SYSTEM Android™
NUMBER OF CHANNELS 16
TRANSMISSION DISTANCE RANGE (OPTIMUM CONDITIONS) 1.6 km (Europe) / 2 km (FCC)
FREQUENCY BAND 2.4 GHz
VIDEO LINK FREQUENCY BAND 5.8 GHz
VIDEO LINK RESOLUTION 720p
LCD SCREEN SIZE 7″
FLIGHT SYSTEM TELEMETRY DATA ON SCREEN Yes
BATTERY 3.6V 8700mAh 31.32Wh Li-ion
WORKING TEMPERATURE 0°C – 40°C



CAMERA
DIMENSIONS 129 x 80 x 130 mm
WEIGHT 375 g
SENSOR SIZE 1″ CMOS
EFFECTIVE PIXELS 20 Megapixel
CAMERA LENS F2.8, 23 mm equivalent
VIEW FIELD 91°
ISO RANGE 100 – 6400
SHUTTER SPEED 4 – 1/8000s
PHOTO FORMAT JPEG, DNG, JPEG+DNG
VIDEO FORMAT MP4
PHOTO RESOLUTION 3:2 (5472×3648) / 4:3 (4864×3648) / 16:9 (5472×3080)
VIDEO RESOLUTION 4096×2160 & 3840×2160 (H.264: 24/25/30/48/50/60fps / H.265: 24/30fps) // 2720×1530 (24/25/30/48/50/60fps) // 1920×1080 & 1280×720 (24/25/30/48/50/60/120fps)
PHOTO MODES Single, Burst, Interval, AEB, Panorama
PICTURE MODES Normal, Vivid, WDR, 10 Bit Log, B&W
WHITE BALANCE Auto, Lock, Daylight, Cloudy, Shade, Incandescent, Sunrise, Custom (2000K-12000K)
EXPOSURE MODE Auto, Manual, ISO Priority, Shutter Priority
EXPOSURE COMPENSATION ± 3.0°
OPERATING TEMPERATURE -10°C – 40°C
Weight 0,5 kg
