New standards in aerial photography
User-defined image mode and focus settings, lossless digital zoom and superior image quality make the ION L1 Pro the camera of choice in its class for all aspects of aerial photography. A wide range of functions that come in the top-level quality for which Leica is known enable you to fully tap into the photographic potential of the ION L1 Pro. The Cruise Control feature keeps the speed of the drone constant, so that you can fully concentrate on your camera shot. With the integrated 3-axis gimbal and the drone’s retractable landing gear, the camera can rotate through 360° unrestrictedly and produce flowing panoramic shots. Thanks to the short JPEG intervals, hyperlapse videos can also be created without problems.

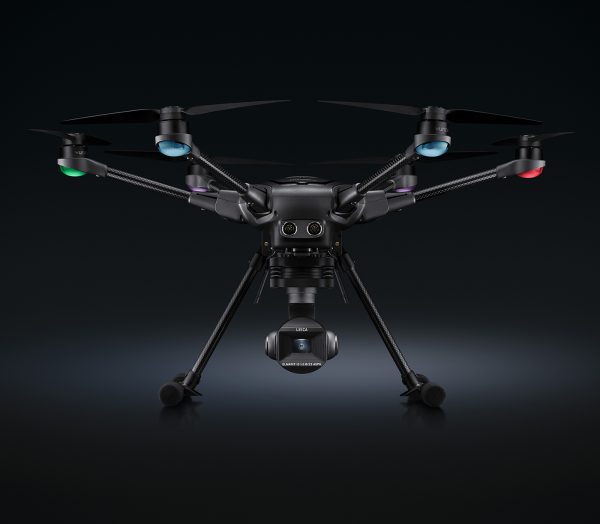

Typhoon H3 – Drone data at a glance
- Sturdy hexacopter with 6 rotors & up to 25 minutes flight time
- Retractable landing gear
- PX4-based flight controller
- Cruise control for controlled shots
- Intelligent auto flight modes: Follow Me, Orbit, Journey, Curve Cable Cam
- Return Home and Auto Landing functions
- Obstacle detection
- 5-rotor mode activation in the event of rotor failure
- Redundant control signal & Geo Fence setting
- Additional safety mechanism to detect proper battery engagement
- Rechargeable and changeable battery
- Retractable arms for ease of transportation
- Team mode option for separate copter and camera control (additional ST16S required; sold separately)

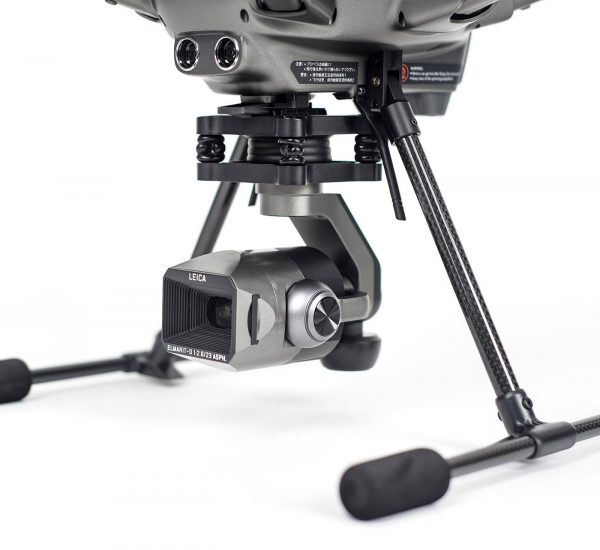

ION L1 Pro – Camera data at a glance
- Developed in cooperation with Leica Camera AG (co-engineered with LEICA)
- 1” CMOS sensor, 20 MP, up to 4K @ 60 FPS, up to 100Mbit
- Integrated 3-axis gimbal with unrestricted 360° view
- Leica optimized and calibrated image modes (AWB, color reproduction, sharpening, de-noising, etc.)
- Leica calibrated DNG with corresponding ADOBE profile
- Lossless digital zoom
- 10-bit YLog video mode based on Leica specifications
- Semi-automatic ISO/shutter & 1/3 step setting of EV/ISO/shutter
- Wide Dynamic Range (WDR)
- Auto Exposure Bracketing (AEB)
- Short JPEG intervals for hyperlapse videos
- User-defined picture mode & sharpness settings
- Professional histogram
- Panorama shots

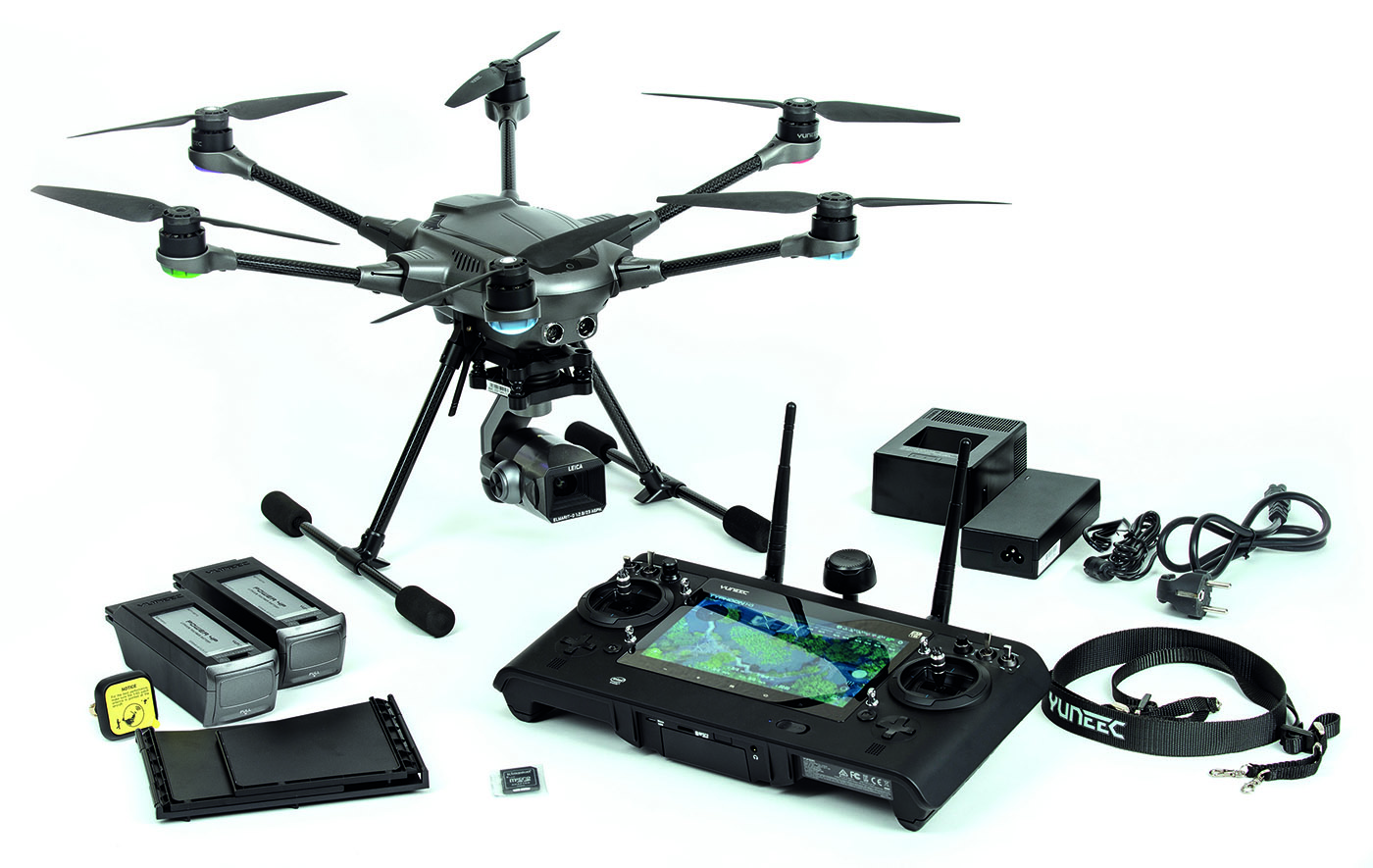

Box Content:
- Typhoon H3 Hexacopter
- ION L1 Pro camera co-engineered with Leica
- ST16S remote control
- 2 batteries
- charger
- neck strap for ST16S
- optional patch antenna
- SD card
- USB and power cable
| AIRCRAFT | |
| TAKEOFF WEIGHT | 1985 g (incl. camera) |
| FLIGHT TIME | up to 25 min |
| DIAGONAL LENGTH (WITHOUT ROTOR BLADES) | 520 mm |
| MAXIMUM FLYING ALTITUDE | 500 m |
| MAX TAKEOFF ABOVE SEA LEVEL | 5000 m |
| MAXIMUM RATE OF ASCENT | 5 m/s |
| MAXIMUM RATE OF DESCENT | 3 m/s |
| MAXIMUM FLIGHT SPEED | 20 m/s |
| MOTORS | 730 kV |
| BATTERY | 4S 5250mAh LiPo |
| OPERATING TEMPERATURE | 0°C – 40°C |
| STORAGE TEMPERATURE | -10℃ to 50℃ |
| OBSTACLE AVOIDANCE | |
| SENSOR | Ultrasonic Sensor |
| FLIGHT SPEED | 4 m/s |
| OPERATING ENVIRONMENT | Height＞1.5m, Distance to obstacles＜5m |
| REMOTE | |
| OPERATING SYSTEM | Android™ |
| NUMBER OF CHANNELS | 16 |
| TRANSMISSION DISTANCE RANGE (OPTIMUM CONDITIONS) | 1.6 km (Europe) / 2 km (FCC) |
| FREQUENCY BAND | 2.4 GHz |
| VIDEO LINK FREQUENCY BAND | 5.8 GHz |
| VIDEO LINK RESOLUTION | 720p |
| LCD SCREEN SIZE | 7″ |
| FLIGHT SYSTEM TELEMETRY DATA ON SCREEN | Yes |
| BATTERY | 3.6V 8700mAh 31.32Wh Li-ion |
| WORKING TEMPERATURE | 0°C – 40°C |
| CAMERA | |
| DIMENSIONS | 129 x 80 x 130 mm |
| WEIGHT | 375 g |
| SENSOR SIZE | 1″ CMOS |
| EFFECTIVE PIXELS | 20 Megapixel |
| CAMERA LENS | F2.8, 23 mm equivalent |
| VIEW FIELD | 91° |
| ISO RANGE | 100 – 6400 |
| SHUTTER SPEED | 4 – 1/8000s |
| PHOTO FORMAT | JPEG, DNG, JPEG+DNG |
| VIDEO FORMAT | MP4 |
| PHOTO RESOLUTION | 3:2 (5472×3648) / 4:3 (4864×3648) / 16:9 (5472×3080) |
| VIDEO RESOLUTION | 4096×2160 & 3840×2160 (H.264: 24/25/30/48/50/60fps / H.265: 24/30fps) // 2720×1530 (24/25/30/48/50/60fps) // 1920×1080 & 1280×720 (24/25/30/48/50/60/120fps) |
| PHOTO MODES | Single, Burst, Interval, AEB, Panorama |
| PICTURE MODES | Normal, Vivid, WDR, 10 Bit Log, B&W |
| WHITE BALANCE | Auto, Lock, Daylight, Cloudy, Shade, Incandescent, Sunrise, Custom (2000K-12000K) |
| EXPOSURE MODE | Auto, Manual, ISO Priority, Shutter Priority |
| EXPOSURE COMPENSATION | ± 3.0° |
| OPERATING TEMPERATURE | -10°C – 40°C |
