DJI Mavic 3 Enterprise Series Battery Kit

1. It is recommended to use the DJI USB-C Power Adapter (100W) to provide power supply for the DJI Mavic 3 Battery Charging Hub (100W).
2. The charging hub is only compatible with BWX260-5000-15.4 Intelligent Flight Batteries. DO NOT attempt to use the charging hub with other battery models.
3. Place the charging hub on a flat and stable surface when in use. Make sure the device is properly insulated to prevent fire hazards.
4. DO NOT attempt to touch the metal terminals on the battery case.
5. Clean the metal terminals on the battery case with a clean, dry cloth if there is any noticeable buildup.

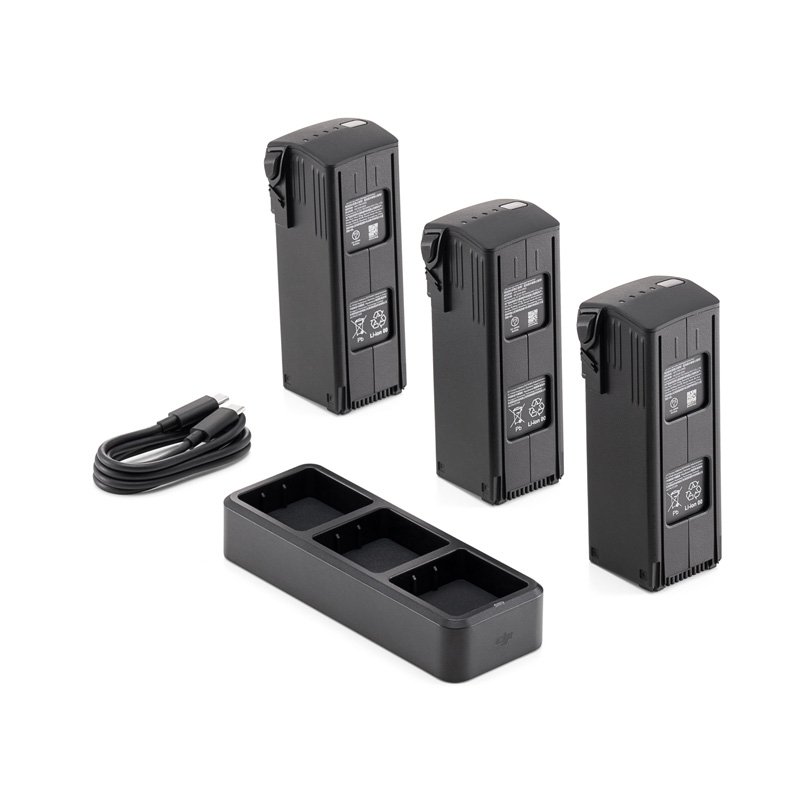

• DJI Mavic 3 Intelligent Flight Battery ×3
• DJI Mavic 3 Battery Charging Hub (100W) ×1

• Intelligent Flight Battery:
  • Model: BWX260-5000-15.4
  • Capacity: 5000 mAh
  • Weight: 335.5 g
  • Battery Type: LiPo 4S
  • Charging Temperature: 5° to 40°C (41° to 104°F)
• DJI Mavic 3 Battery Charging Hub (100W):
  • Model: CHX265-100
  • Dimensions: 150×55×28 mm (L×W×H)
  • Weight: 116 g
  • Operating Temperature: 5° to 40° C (41° to 104° F)
  • Input: 5-20 V, max 5 A
  • Compatible Power Adapter: DJI USB-C Power Adapter (100W)
  • Charging Time: Approx. 1 h 10 mins (single battery)*

* Tested using the DJI USB-C Power Adapter (100W).

• DJI Mavic 3 Enterprise Series aircraft
