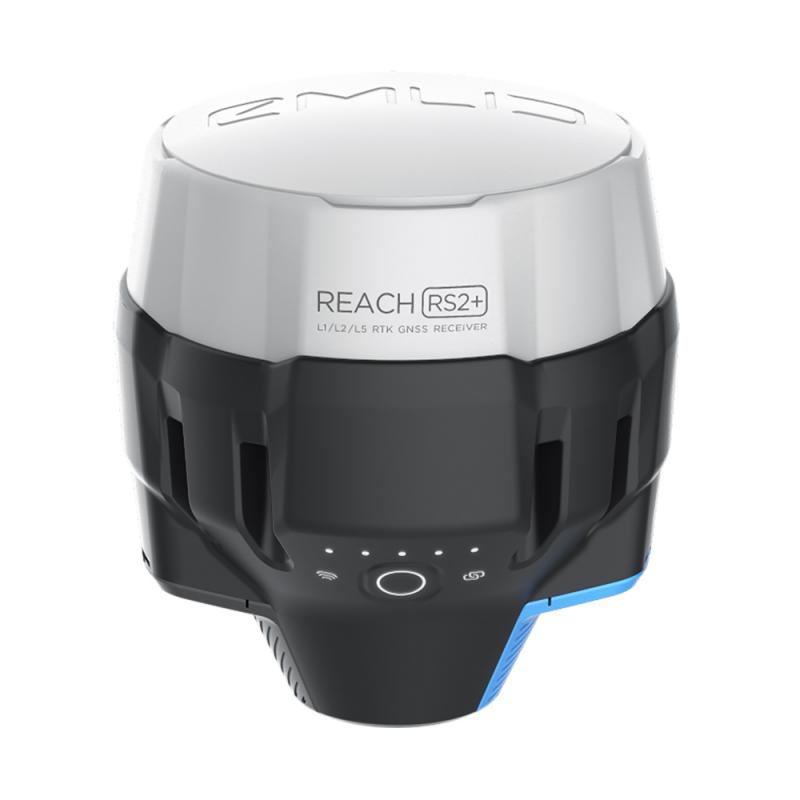

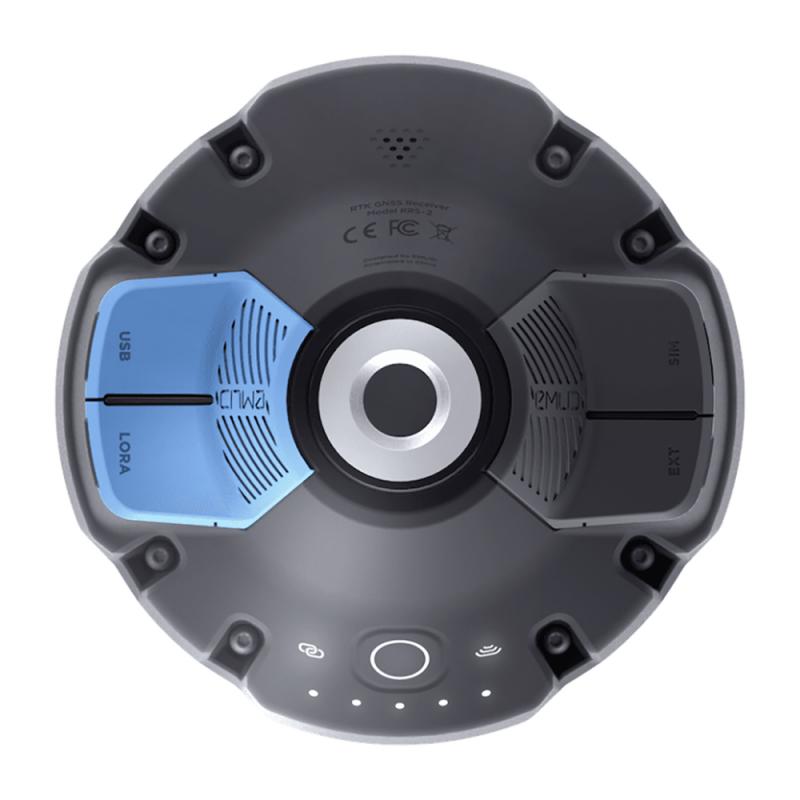

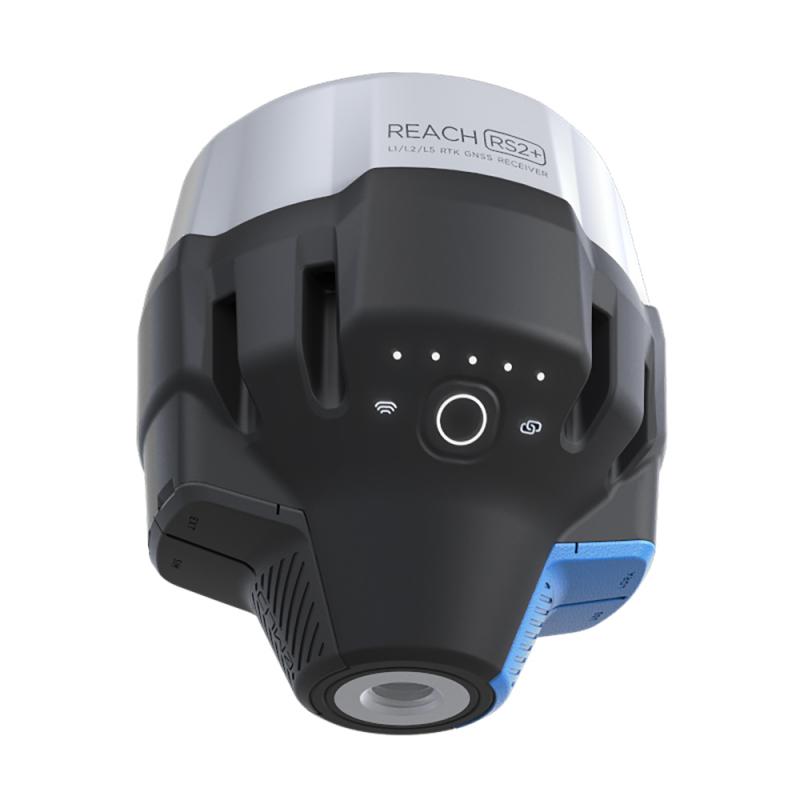

The new RS2+ from Emlid is the successor model of the RS2 and has a 4G modem. The GNSS receiver allows you to perform the measurement in different ways: RTK through SIM card or WiFi hotspot, PPK or static measurements – control via field computer, laptop, tablet or smartphone – the Reach RS2+ offers maximum flexibility.
The survey kit includes two Reach RS2+ receivers. These can then be used in parallel as a Rover or as a Rover and Base.
Technical Specifications
- Control via smartphone app (iOS and Android), web interface or data collection apps
- Make WiFi and Bluetooth connections
- Supports multiple positioning Providers (with update rates up to 10 Hz):
- GPS/QZSS L1C/A, L2C
- GLONASS L1OF, L2OF
- BeiDou B1I, B2I
- Galileo E1-B/C, E5b
- Fix solution in seconds
- Post-processing through RINEX raw files (PPK)
- Precise Point Positioning (PPP) – Precise measurements anywhere in the world
- Integrated 4G modem (use with Nano SIM)
- Battery life up to 22 hours (rechargeable via USB-C over mains or Powerbank)
- Export to various GIS or CAD software (formats: DXF, CSV, GeoJSON, ESRI, Shapefile)
- Positioning mode (import formats: CSV, DXF, GeoJSON)
- Position streaming in NMEA Format
- Use as Rover or Base
- LoRa up to 8km (long range communication between Base and Rover)
- Maximum ranges to Base:
- 60km in RTK
- 100km in PPK
- 8 through PPP
- Correction input and output via TCP, LoRa, Bluetooth, RS-232, NTRIP, VRS in RTCM3 Format
- IP67 protected
- Temperature resistant from -20°C to 65°C
- Shock resistant case
- Dimensions: 128mm x 142mm
- Weight: 950g
- Internal memory: 16 GB
- Accuracies:
- Static: H: 4mm + 0.5ppm | V: 8mm + 1ppm
- PPK: H: 5mm + 0.5ppm | V: 10mm + 1ppm
- RTK: H: 7mm + 1ppm | V: 14mm + 1ppm

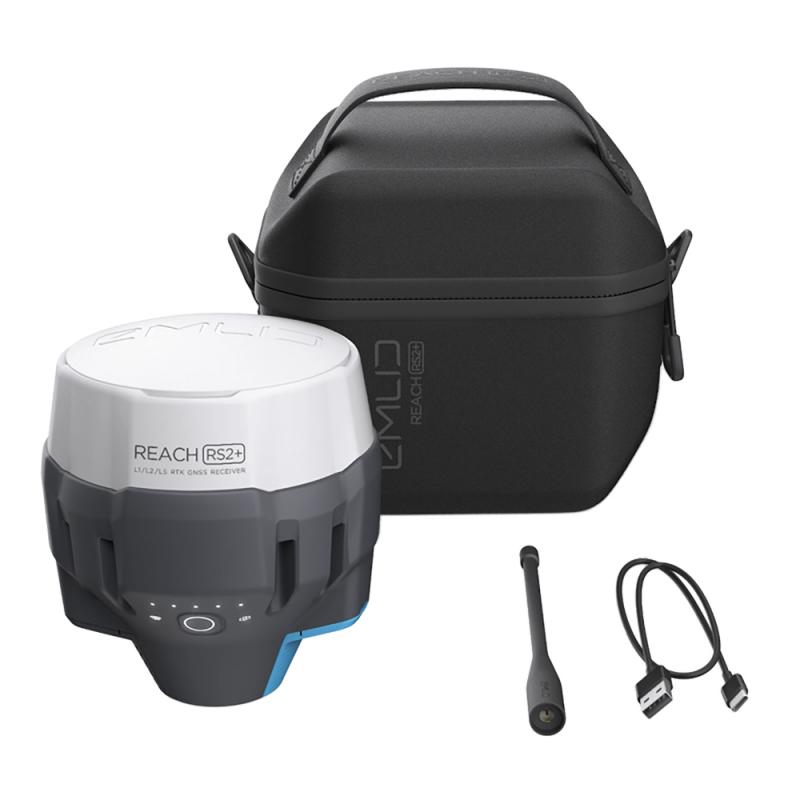

In the Box
- 2x Reach RS2 Multi-Band GNSS-Empfänger
- 2x carrying case with strap
- 2x LoRa antenna for RS2
- 2x charging cable USB-A to USB-C
