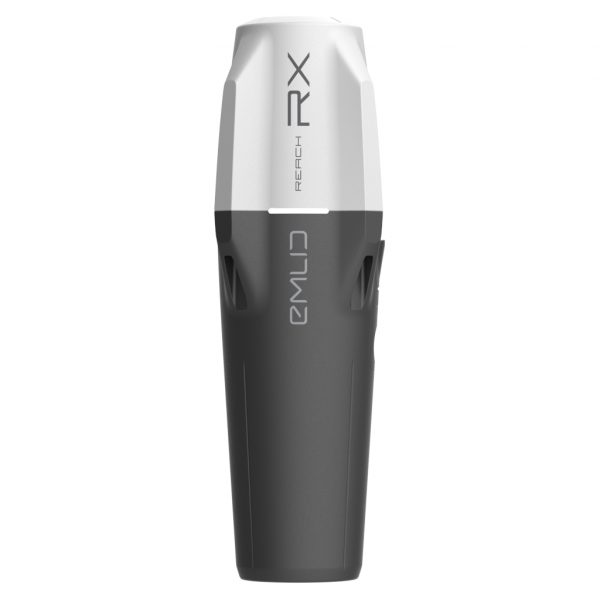

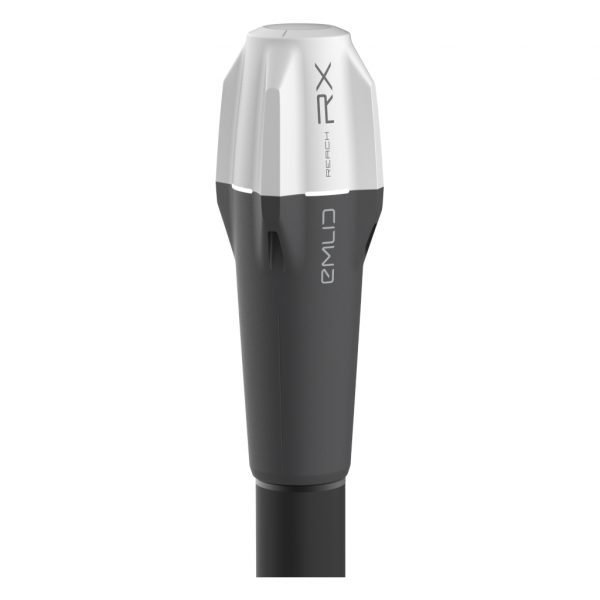

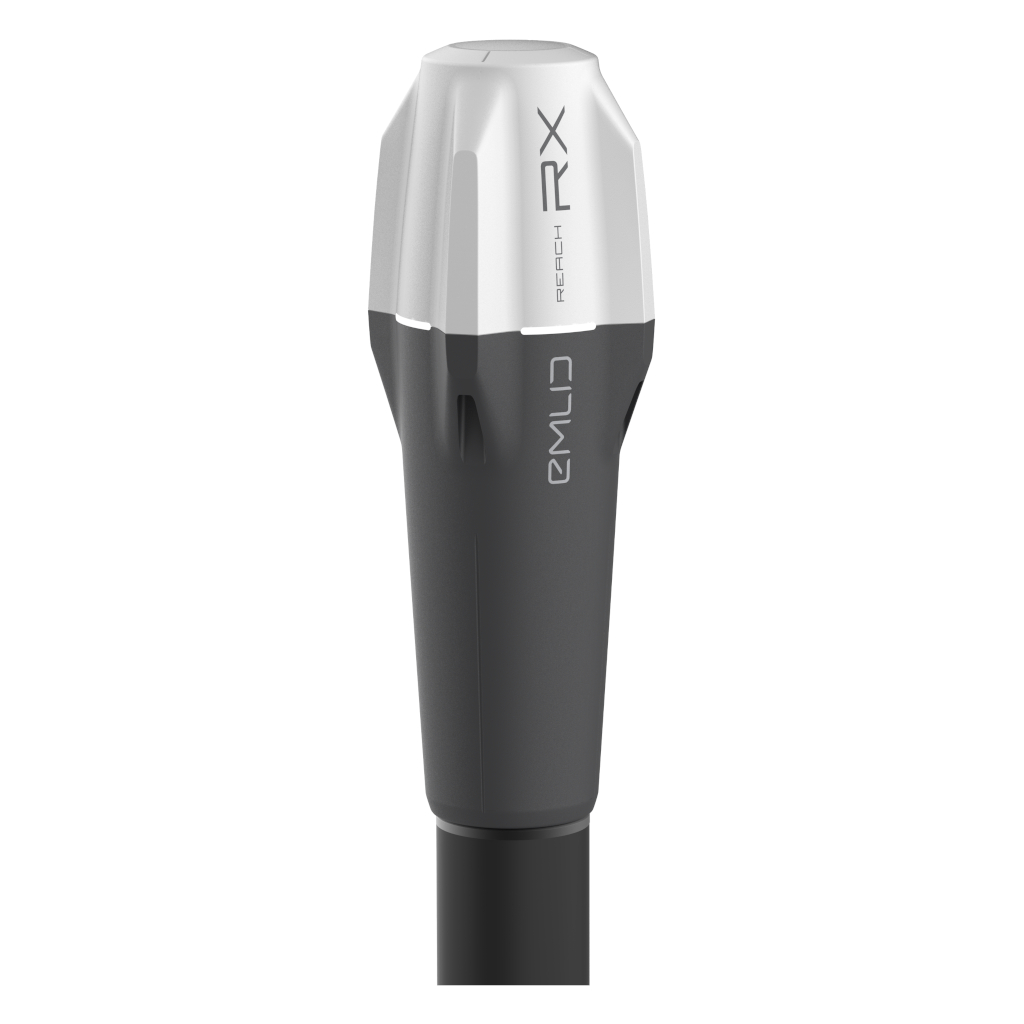

Emlid Reach RX

Emlid Reach RX, the lightweight and easy-to-use GNSS RTK receiver for surveying points with centimeter accuracy

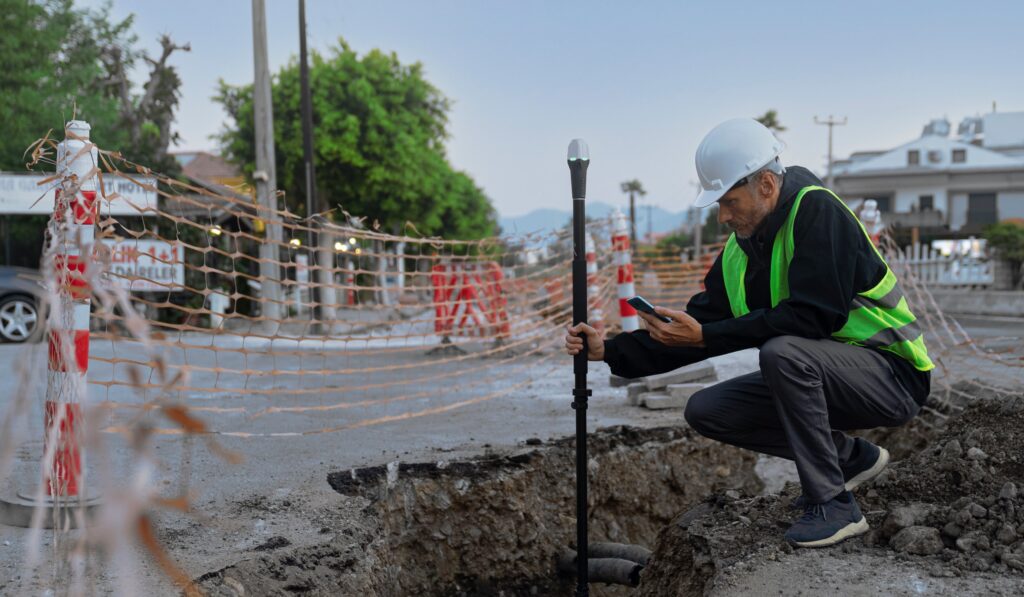

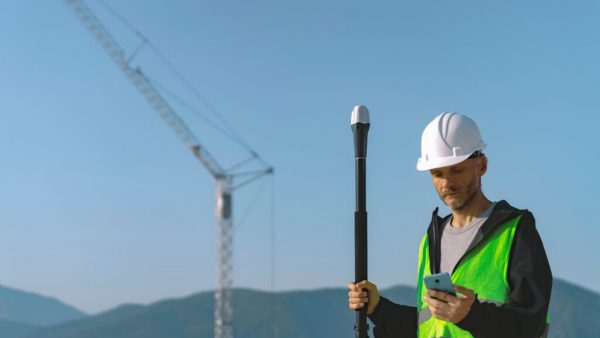

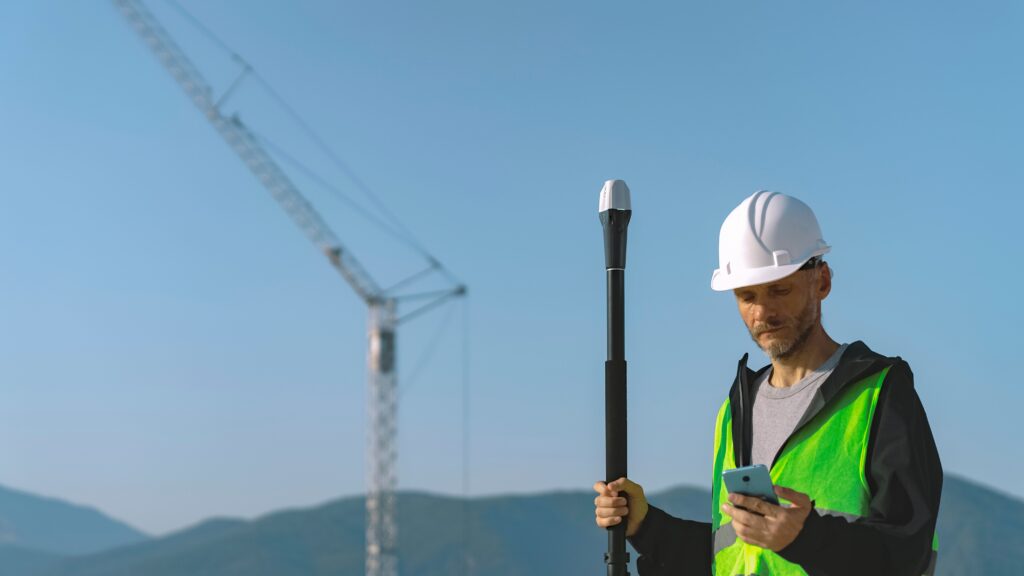

Designed specifically for work with NTRIP corrections, EMLID Reach RX is the ideal pocket-sized solution for surveying, topographic stakeouts and data collection with centimeter precision.

1.725,00  Exc.VAT (2.121,75  Inc. 23% VAT)

1 in stock

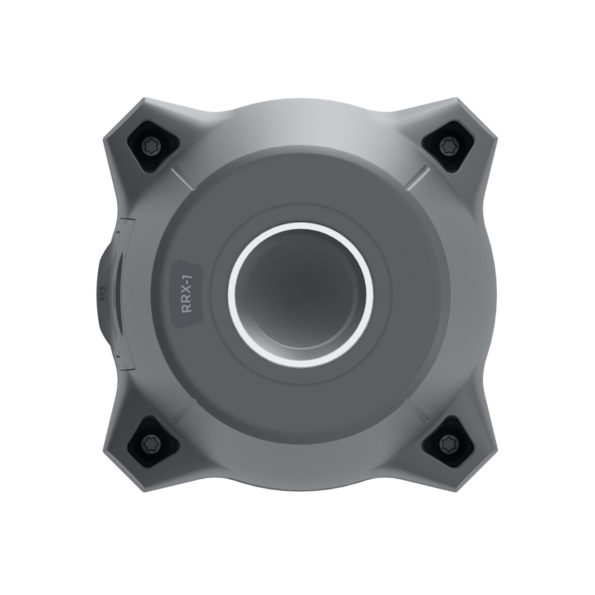

Compact and rugged

  • 250 grams
  • 172 mm x 51 mm x 51 mm

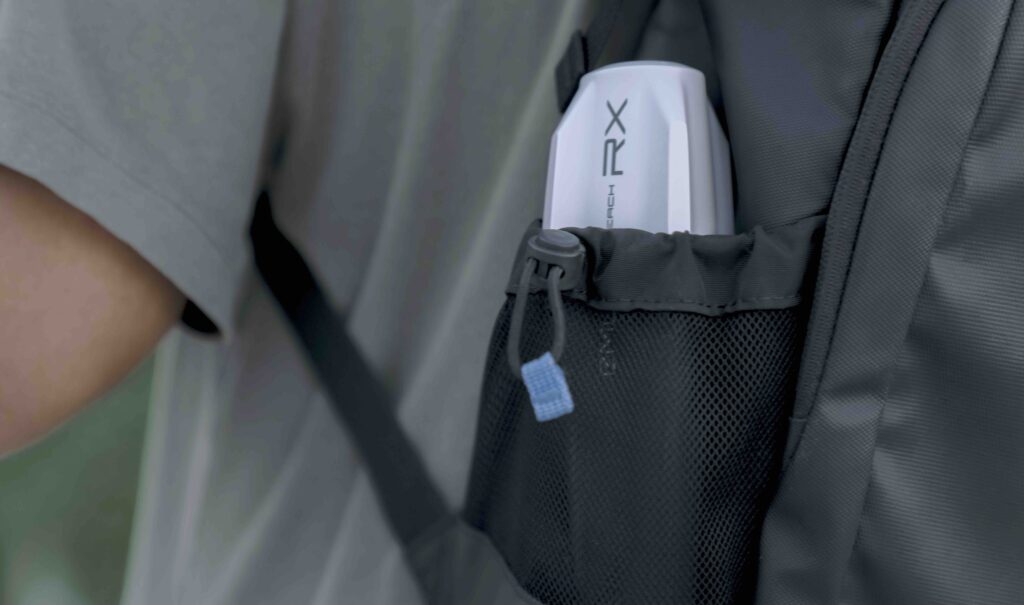

Weighs like a TV remote controller and can be carried in your pocket.

  • -20 to +65 °C (-4 to 149 °F)

We extensively tested Reach RX in conditions
that simulate the coldest winters and hottest
summers.

  • IP68
RX is waterproof up to a 1.5 m depth. The connector is sealed and protected from water and dust with a silicone plug.

Reliable battery

  • 16 hours of work

2 days of work for less than 3 hours of charging. You can charge on-the-go from any USB port or power bank.

  • Li-Ion battery

An industrial battery that handles both high and low temperatures well.

  • 2000+ cycles of charging and discharging while maintaining original capacity.

Specifications

Mechanical

Dimensions: 172 x 51 x 51 mm

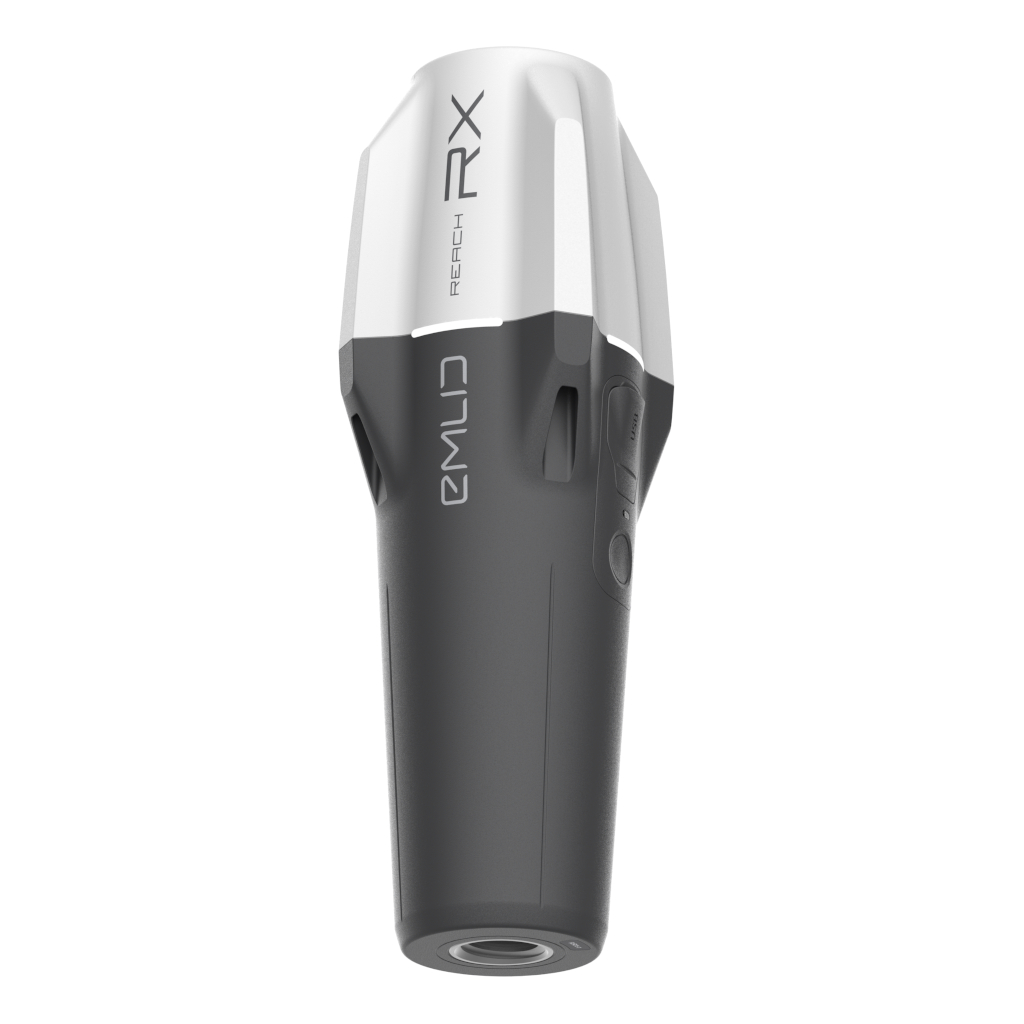

Mount: 5/8”-11 UNC
Weight: 250 g (8.81 oz)
Operating tº: -20 to +65 ºC
Ingress protection: IP68 (maximum depth of 1.5 meters up to 30 minutes)

Electrical

Autonomy: Up to 16 hrs
Battery: Li-Ion 5200 mAh, 3.6V, 18.72 Wh
Charging: USB Type-C, 5V, 2A
Certification: FCC, CE, IC

Positioning

RTK: H: 7 mm + 1 ppm / V: 14 mm + 1 ppm
Convergence time: ~5 s typically

Connectivity

Communication interface: Bluetooth 4.2
Ports: USB Type-C

Data

Input data format: RTCM3
Input data protocol: NTRIP
Position data format: NMEA

GNSS

Signal tracked: GPS/QZSS L1C/A, L2C, GLONASS L1OF, L2OF, BeiDou B1I, B2I, Galileo E1-B/C, E5b
Number of channels: 184
Update rate: 5 Hz

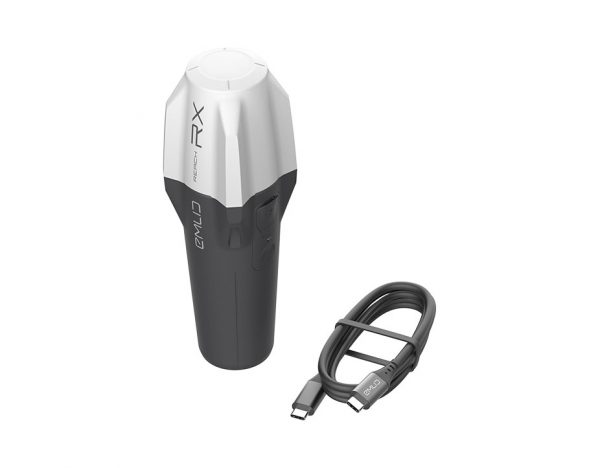

Package includes

– Reach RX
– USB Type-C cable

Weight 0,5 kg
