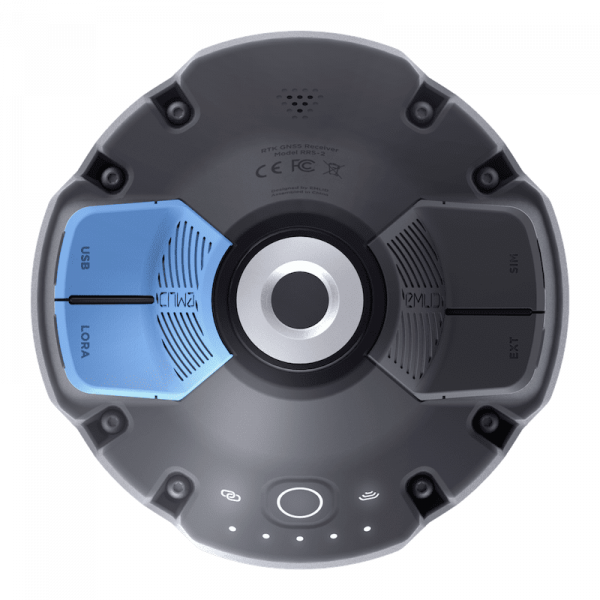

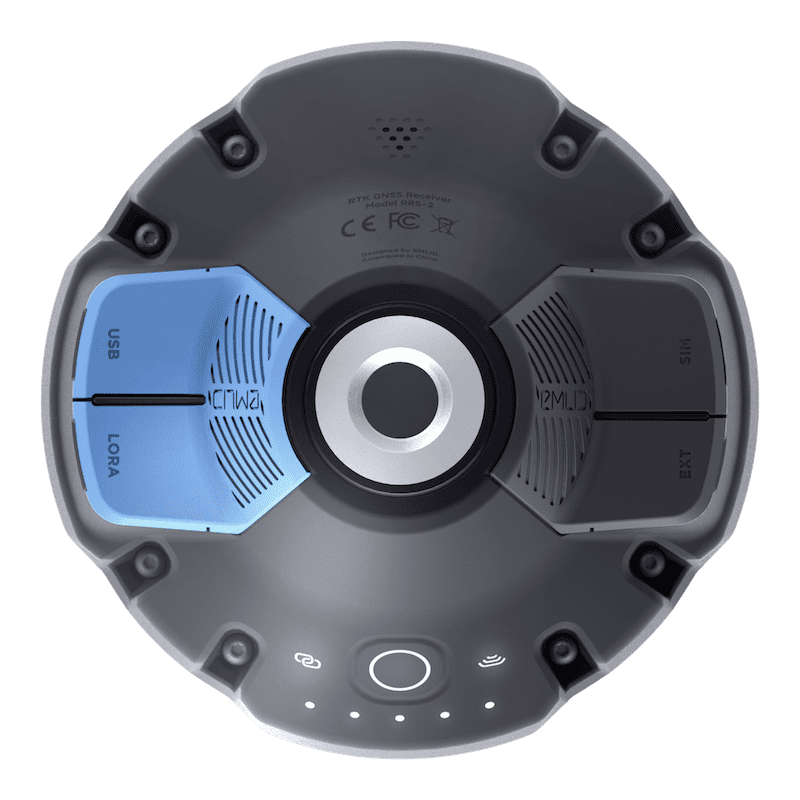

Emlid Reach RS2+ GNSS Receiver

2.149,00  (Exc.VAT)

Multi-band RTK GNSS receiver with centimeter precision

For surveying, mapping and navigation. Comes with a mobile app, ReachView3.

  • GNSS -GPS/QZSS, GLONASS L1, L2; BeiDou B1, B2; Galileo E1, E5
  • Long range radio – LoRa 868/915 MHz, range up to 8 km
  • 16 hrs as LTE RTK rover – LiFePO4 battery, 6–40V input, USB Type-C charging
  • Wi-Fi and Bluetooth – For connection with other devices

Available on backorder

Categories: , Tags: ,

TECHNICAL SPECIFICATIONS

Mechanical

  • Dimensions: 126 x 126 x 142  mm
  • Weight: 950 g
  • Operating tº: -20 to +65 ºC
  • Ingress protection: IP67

Electrical

  • Autonomy: 16 hrs as LTE RTK rover,
    22 hrs logging
  • Battery: LiFePO4 6400 mAh, 6.4 V
  • External power input: 6–40 V
  • Charging: USB Type-C 5 V, 2 A
  • Certification: FCC, CE

Positioning

  • StaticH: 4 mm + 0.5 ppm
    V: 8 mm + 1 ppm
  • PPKH: 5 mm + 0.5 ppm
    V: 10 mm + 1 ppm
  • RTKH: 7 mm + 1 ppm
    V: 14 mm + 1 ppm
  • Convergence time~5 s typically

Connectivity

  • LoRa radio
  • Frequency range: 868/915 MHz
  • Power: 0.1 W
  • Distance: Up to 8 km
  • LTE modem
  • Regions: Global
  • Bands: FDD-LTE: 1,2,3,4,5,7,
    8, 12, 13, 18, 19, 20,
    26, 28, 66
    TD-LTE: 38,40,41
    UMTS (WCDMA/FDD):
    1,3,2,4,5,6, 8,19
    Quad-band, 850/1900,
    900/1800 MHz
  • SIM: card Nano-SIM
  • Wi-Fi 802.11 b/g/n
  • Bluetooth: 4.0/2.1 EDR
  • Ports: RS-232, USB Type-C

Data

  • Corrections: NTRIP, RTCM3
  • Position output: NMEA, LLH/XYZ
  • Data logging: RINEX
  • Internal storage: 16 GB
    160+ days of logging at 1 Hz

GNSS

  • Signal tracked: GPS/QZSS L1C/A, L2C
    GLONASS L1OF, L2OF
    BeiDou B1I, B2I
    Galileo E1B/C, E5b
  • Number of channels: 184
  • Update: rate sup to 10 Hz
  • IMU9DOF

IN THE BOX

– Reach RS2+
– Carrying case with a strap
– Radio antenna
– USB Type-C cable

Weight 1 kg
