Emlid Survey Pole with a smartphone mount

The three-section construction delivers reliable stability with the help of solid flip locks. It comes equipped with a smartphone mount that fits most control devices and a carrying bag.

Closed length Maximum height Total weight
0.74 m
1.8 m
900 g

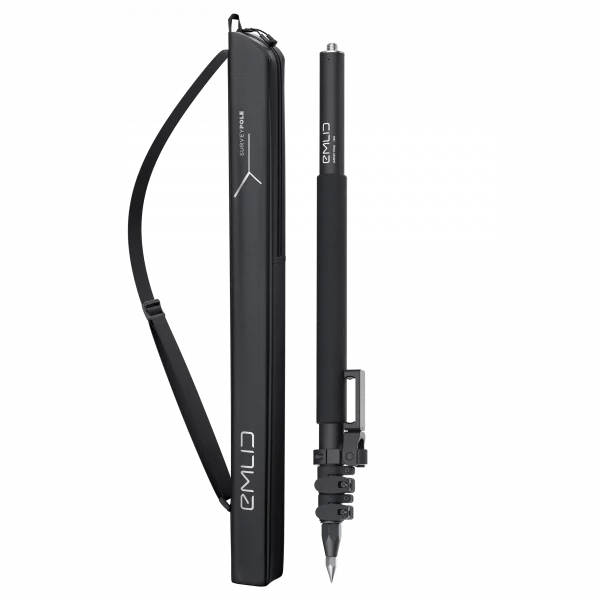

Package includes

— 1 x Survey Pole
— 1 x Carrying bag

297,00  (Exc.VAT)

Available on backorder

Survey Pole with a smartphone mount.
Get all the advantages of surveying with Emlid



0.74 m folded

Lightweight and compact construction at only 0.74 m in closed length is handy for field trips.

1.8 m expanded

The three-section construction easily extends to 1.8 m and delivers reliable stability with the help of solid flip locks.

5/8″ thread

The industry-standard 5/8″ thread provides compatibility with the majority of geodesic equipment.

Evenly distributed weight

Lightweight and stable to bending. You can carry your pole with a receiver attached without worrying about dropping it.

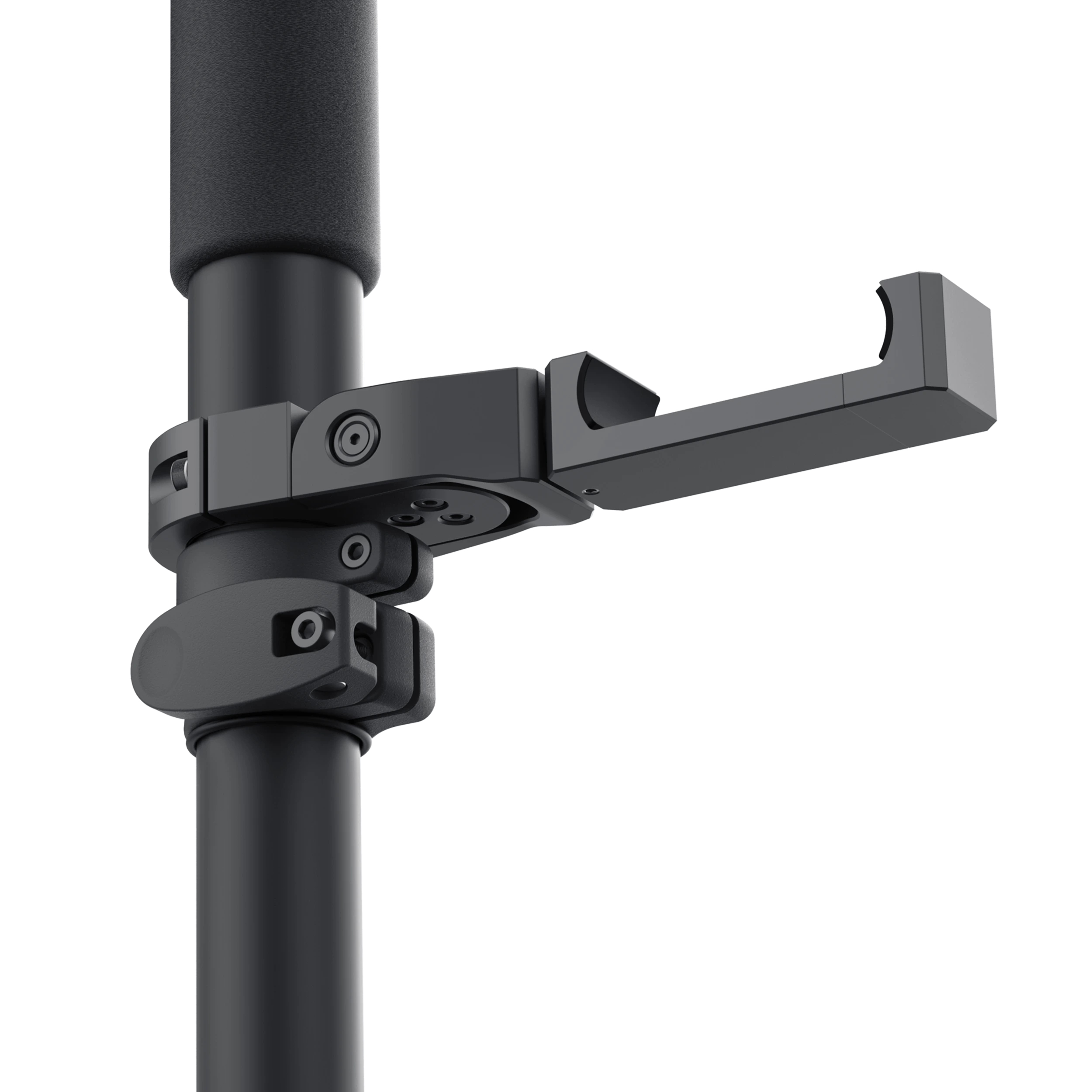

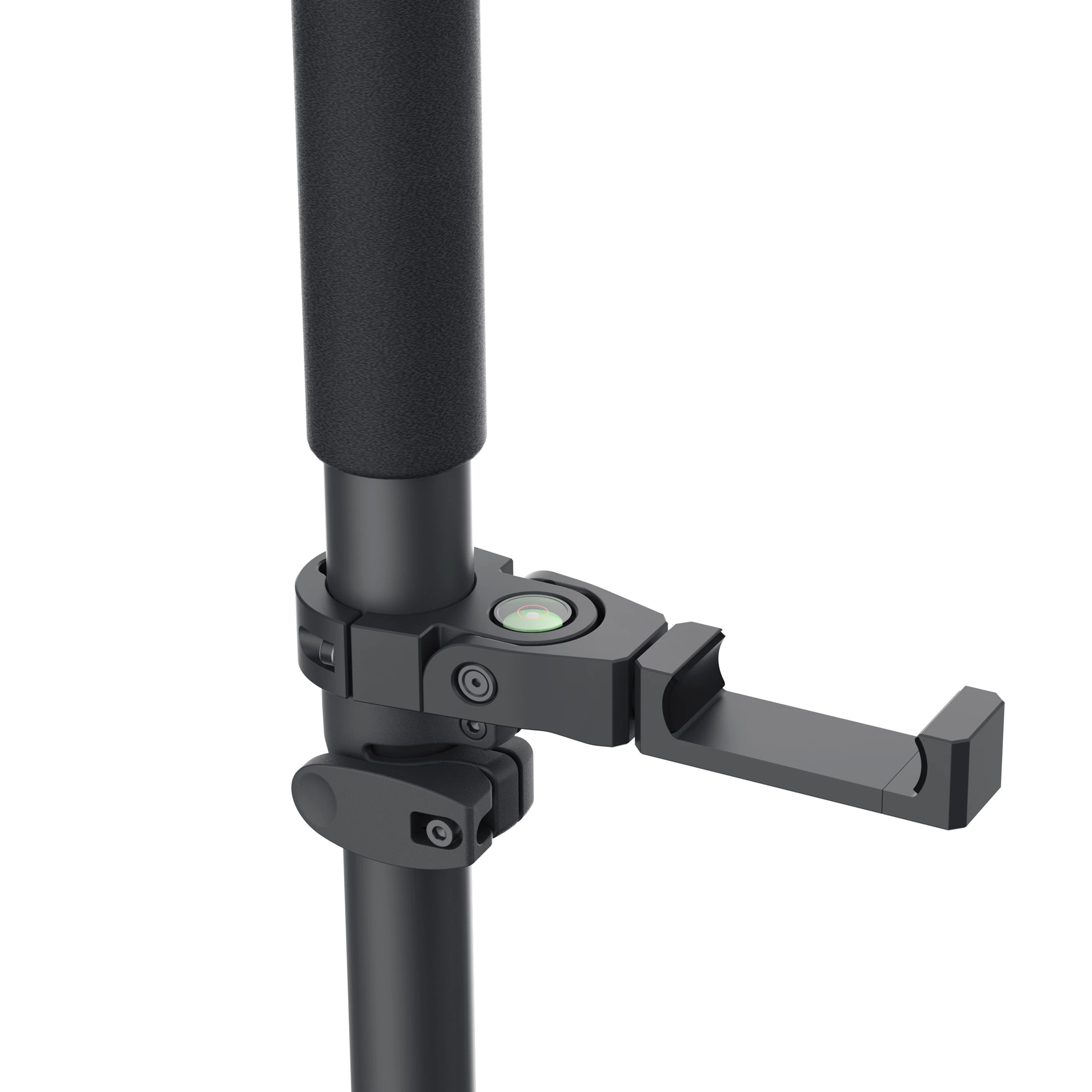

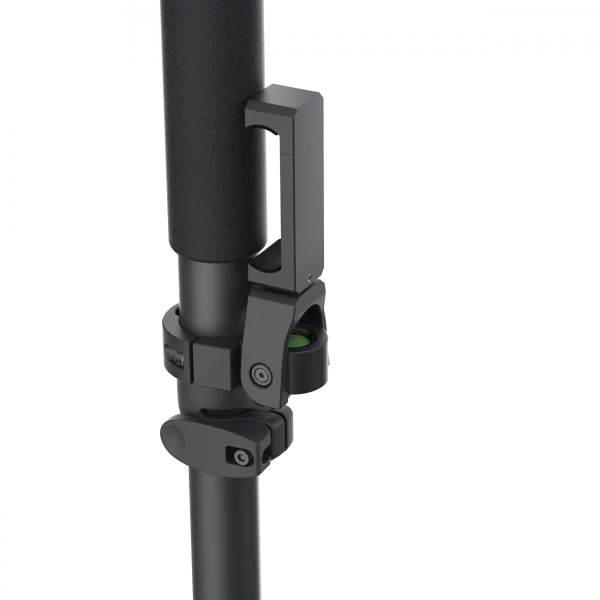

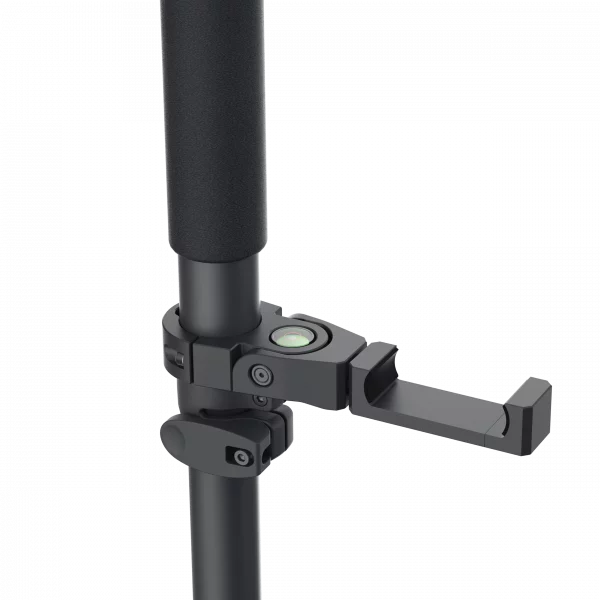

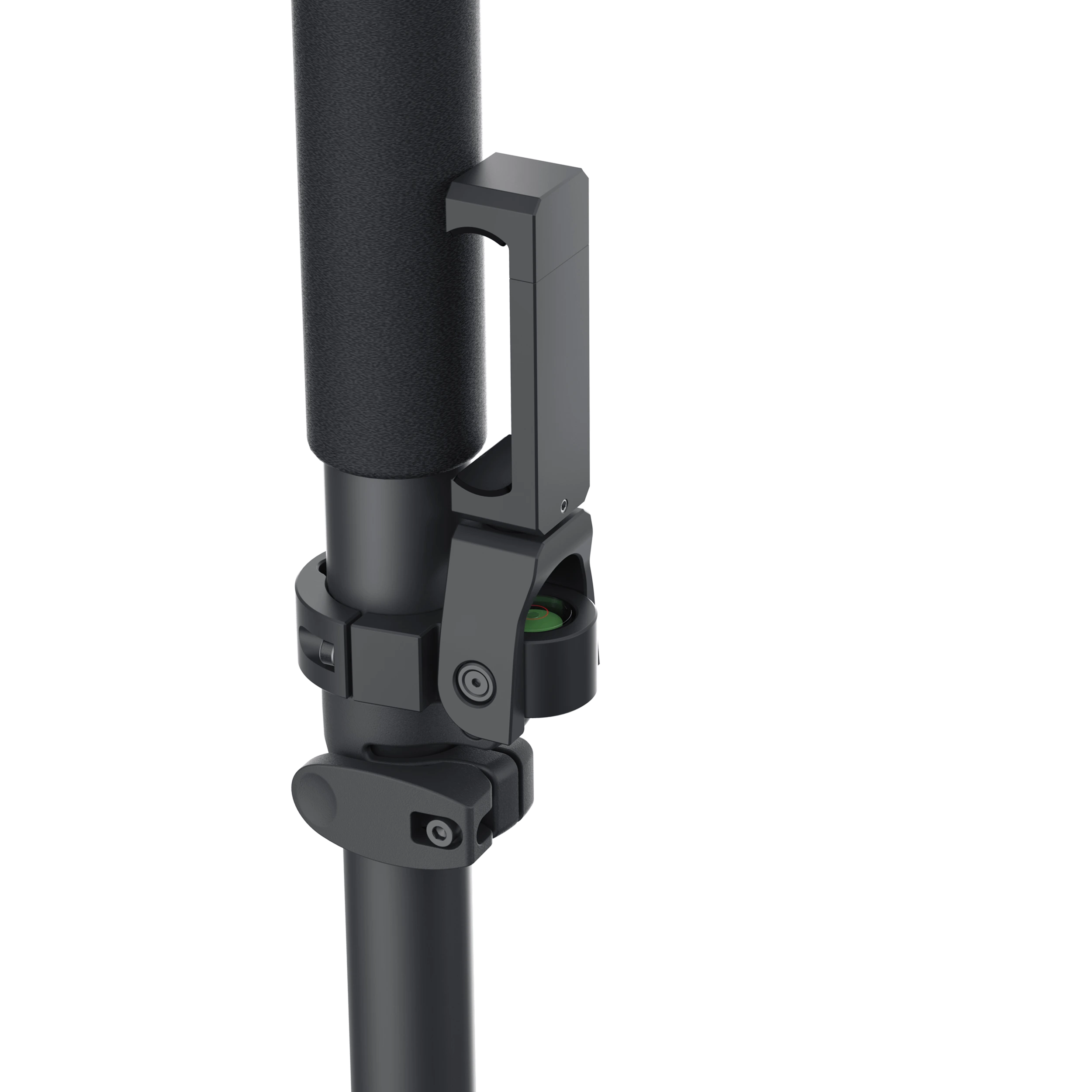

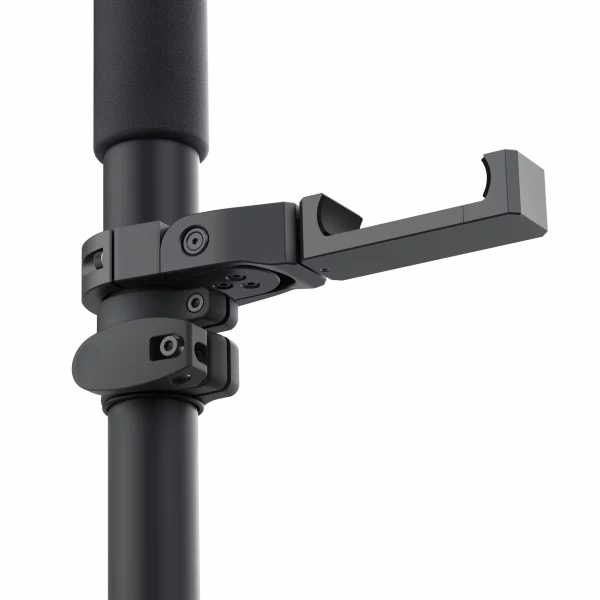

Phone mount

The smartphone mount only needs to be set up on your survey pole once, as you don’t need to remove it. Just fold it when the work is completed and fit your survey pole into its carrying bag.



Get started



1.
Take out survey pole and a tip from the package
2.
Using a 24 mm wrench, screw the tip to the survey pole in a clockwise direction up to the stop

Apply LOCTITE® to the thread to prevent loosening from vibration and shock.
3.
Fully extend and close the flip locks

Make sure all the flip locks are closed. Watch your fingers when closing the flip locks.
4.
Mount the receiver using the 5/8″ thread on the survey pole and carefully tighten it by hand up to the stop

If it is necessary to replace the sharp end of the survey pole, use a 14 mm wrench.
5.
Set up a smartphone mount

  1. Unfold the smartphone mount.
  2. Open the clamp arm and put your control device in the mount.
  3. Rotate the mount to the required position.
Make sure the control device is properly balanced in the mount.
Weight 0,5 kg
