Yuneec ATL 102S V3 Oblique

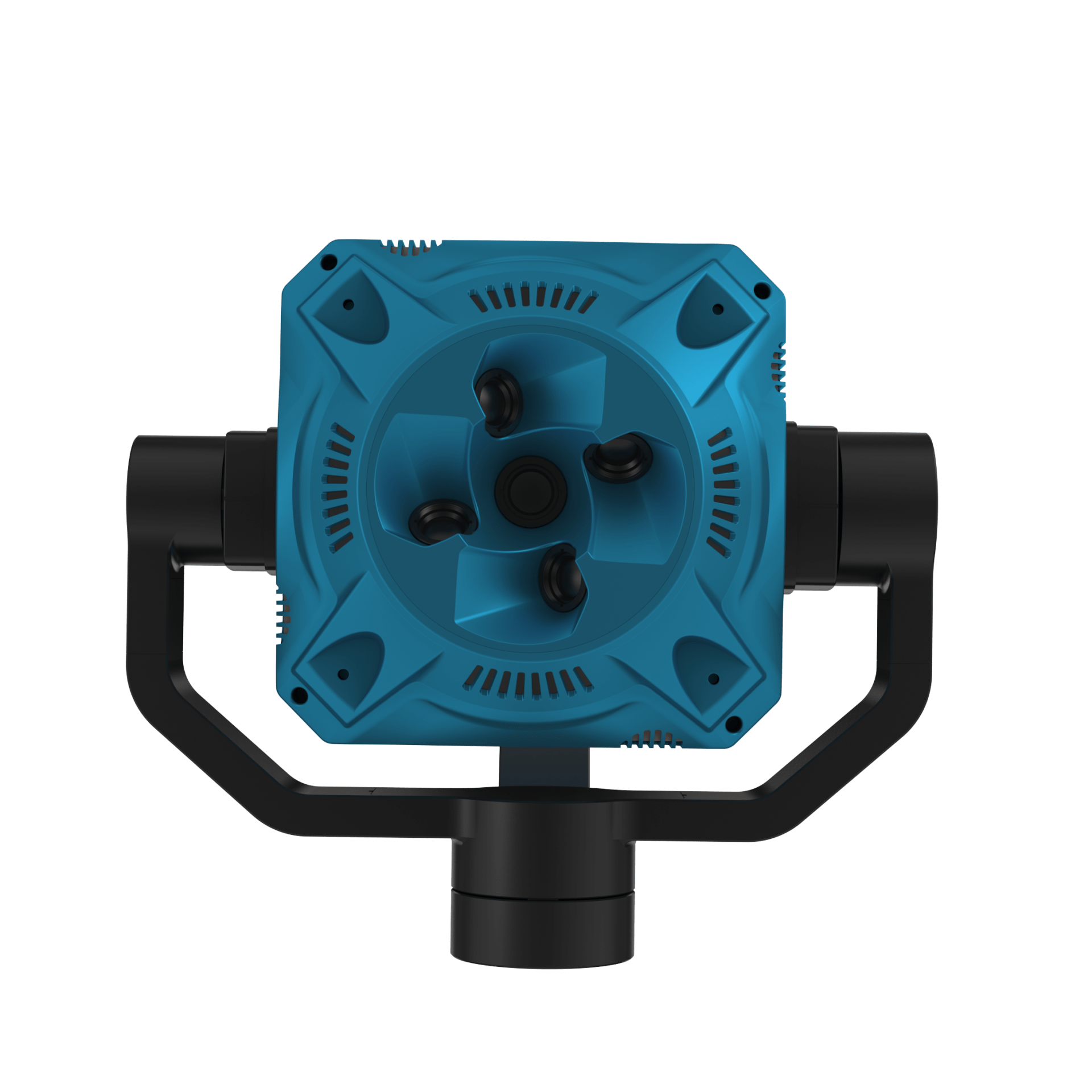

ATL 102S V3 oblique camera uses a mechanical rig with five cameras in fixed positions in a cross configuration; one camera in the centre is surrounded by four other cameras (25MP per lens, 125 MP in total), front, back, left and right, equally spaced at 90-degree intervals. This system positions the central camera at an oblique angle where the ‘nadir’ angle (the point directly below the camera at ground level) is at a known, fixed point in the frame.

(Price on request)

REQUEST A QUOTE

Categories: Cameras Yuneec, Drones, Yuneec Tags: ATL 102S V3, Oblique, psdk 102s v3, shareuav, yuneec, Yuneec H850 RTK

Multiple cameras for oblique view

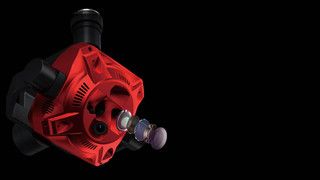

Unlike regular drone cameras that capture straight down, the ATL 102S V3 uses five cameras in a fixed position. One camera points straight down (nadir), while the other four capture images at oblique angles – forward, backward, left, and right. This allows for capturing more detail on objects that might be obscured from a vertical view, such as those under foliage or behind tall buildings.

Designed for H850 drone

The ATL 102S V3 is specifically designed for use with the Yuneec H850 drone. This pairing is marketed as a complete surveying solution for capturing high-precision data for 3D models.

High-resolution images

While specific details about the sensor aren’t publicly available, the camera is designed to capture high-resolution images suitable for creating detailed 3D models.

Removable storage

The camera features a removable data storage module with a capacity of 1280 GB. This allows for storing a significant amount of image data captured during drone flights.

Applications

Here are some common applications of the ATL 102S V3:

Creating high-resolution 3D models of terrain, buildings, and other structures
Surveying for construction projects, land development, and other purposes
Mapping for infrastructure inspection, environmental monitoring, and other applications

Overall, the ATL 102S V3 is a specialized camera system designed for professional use in surveying and GIS applications. Its oblique camera design and high-resolution imaging capabilities make it a valuable tool for capturing detailed data for 3D modeling and mapping projects.

If you’re looking for more information on the ATL 102S V3, you can try contacting the manufacturer, ATL, or searching for reviews from surveying and GIS professionals.

Specifications

Dimensions: 120*120*83 mm; 171*192*185 mm (with gimbal)
Weight: 1100 gram, incl. gimbal
IP class: IP5X
Operating temperature: -10 °C – 40 °C
Storage temperature:-20 °C – 50 °C
Power supply of camera extern: DC 12-50 V
Effective pixel single lens: ≥ 25 million pixels (125 million pixels in total)
Sensor size: 23,1 x 15,4 mm
Pixel size: 3,76 um
Image size: 6144 × 4096 px
Data storage: photo/POS file containing GPS information and camera parameter information
Focal length diagonally: 35 mm (normal incidence: 25 mm)
Oblique angle: 45 degrees
Shutter speed: 1/500, 1/640, 1/800, 1/1000 & 1/1250
Opening size: F 5.6
Storage capacity: The data storage module is pluggable and removable with a capacity of 1‘280 GB.
Operating mode: flight control trigger, isometric trigger & isochronous trigger
Stabilization: 3-Axes (Pitch, roll, yaw)
Rotation range of the gimbal: pitch: -120°-+45°, roll: ±45° & yaw: ±160°
