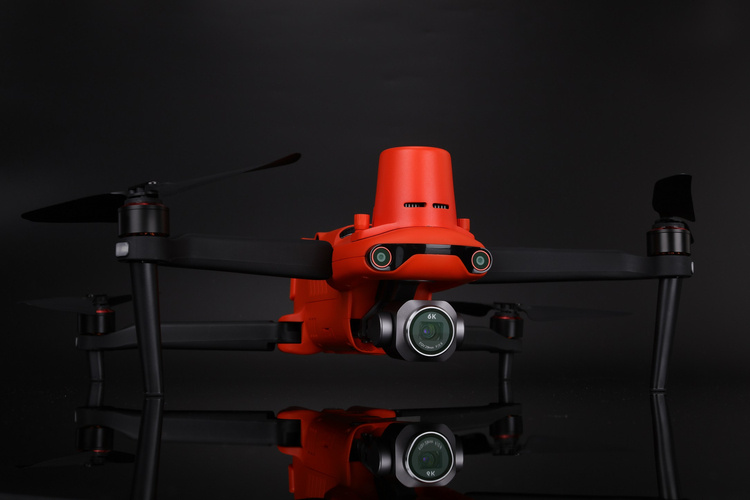

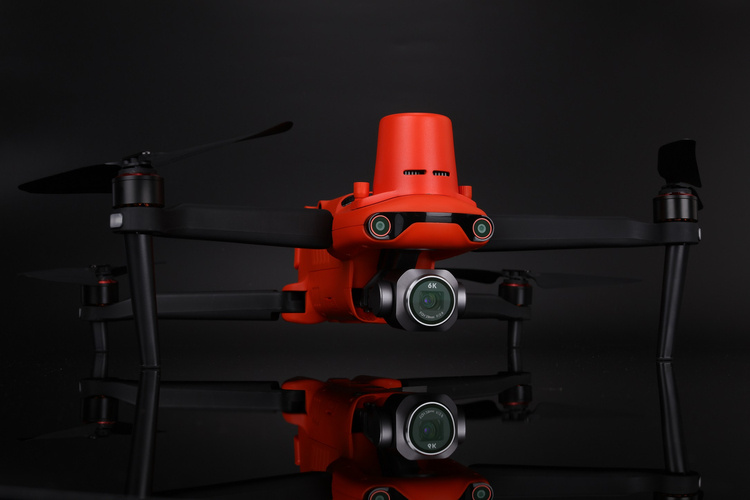

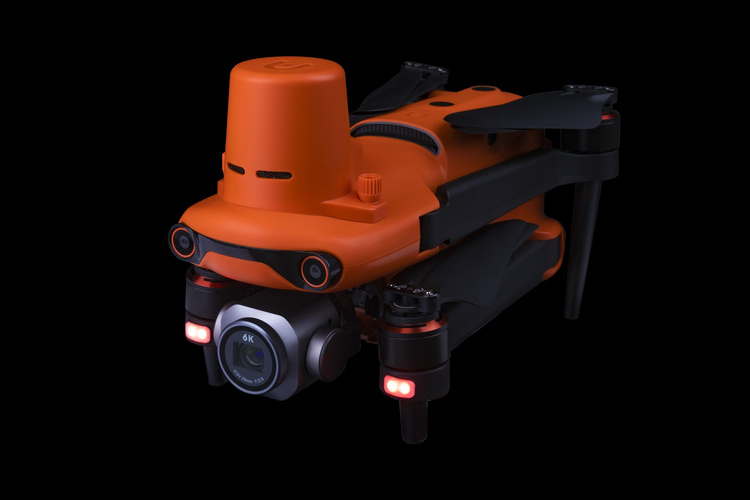

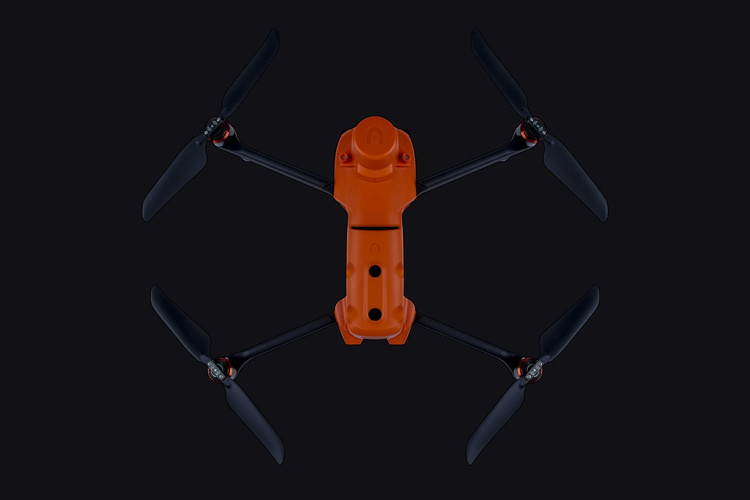

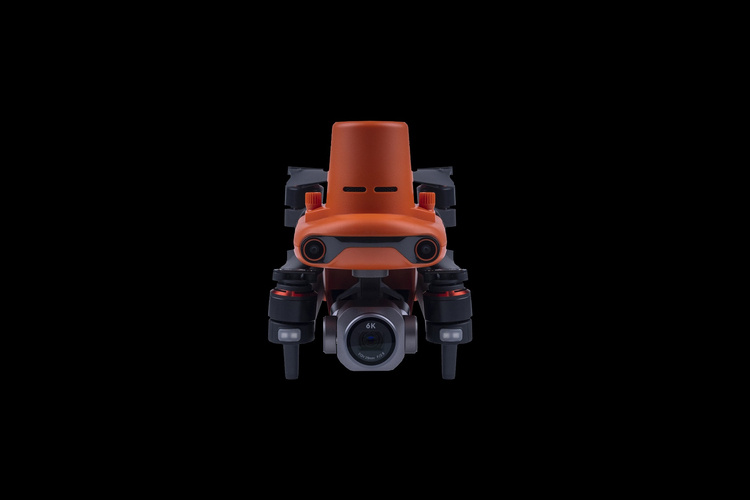

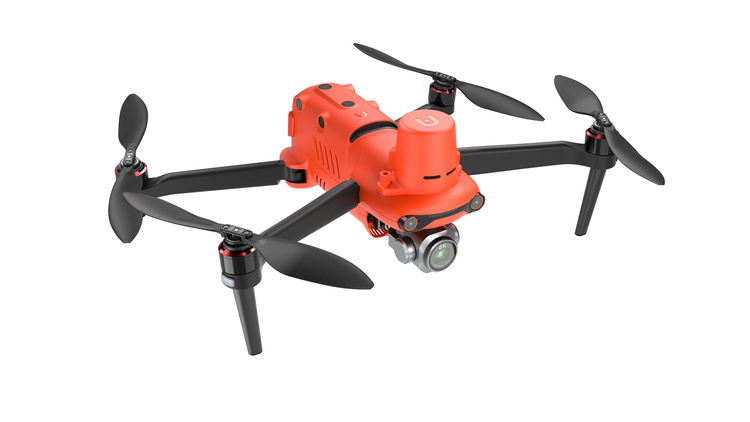

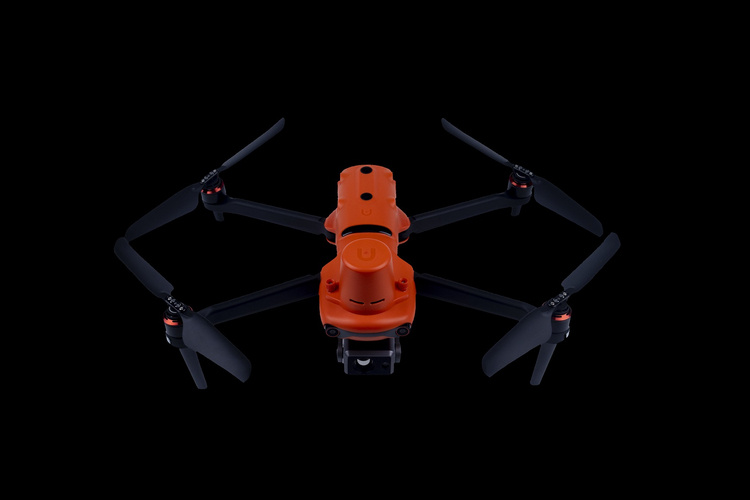

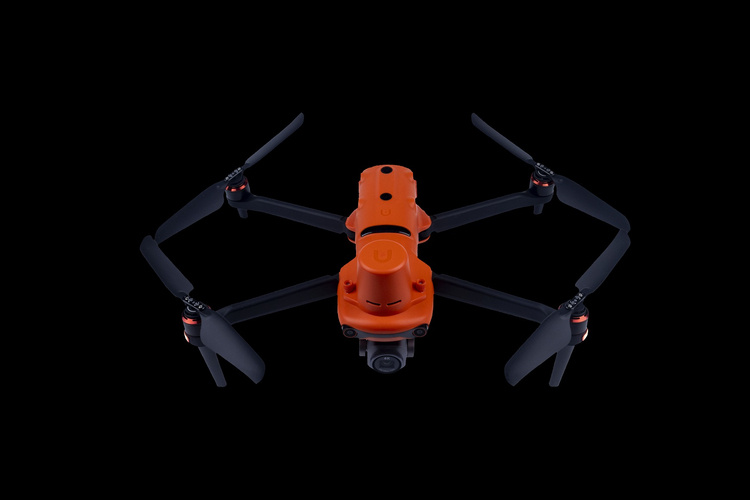

Autel EVO II RTK PRO Rugged Bundle

Serie EVO II RTK

Unrivaled Accuracy and Control

SKU: 8006 Categories: , , Tags: , ,

CENTIMETER-LEVEL POSITIONING

The EVO II RTK series integrates an entirely new RTK module, which provides real-time centimeter-level positioning data and supports Post-Processing Kinematic (PPK). The aircraft can record the original satellite observation data, camera exposure parameters and various other data. The positioning system supports A-RTK base station and RTK network, which helps to achieve accurate and stable data acquisition in complex operation environments.



  • Centimeter-level, high-precision positioning system

  • No need for ground control points

  • Omnidirectional obstacle avoidance

  • A-RTK base station



DUAL CAMERAS, ACCURATE

TEMPERATURE MEASUREMENT

EVO II Dual 640T RTK is equipped with a high resolution thermal imaging camera and 8K visible light camera, enabling you to capture highly detailed imagery to achieve optimal insights.

Precise temperature measurement

  • The EVO II Dual 640T RTK can accurately detect heat sources within a distance of 2-5 meters. By leveraging the compensation algorithm of infrared temperature measurement, the 640T RTK can regulate temperature deviations within 3 degrees Celsius.

High-resolution Thermal imaging sensor

  • The 640T RTK has a 13mm focal length combined with a 640*512 thermal imaging sensor, and an 8K ultra-high-definition visible camera. Together, these sensors provide you with dual vision to give you the crisp and clear imagery you need to accomplish your missions.



MULTIPLE COLOUR MODES

10 colour schemes for more vivid scene recognition

CAPTURE EVERY DETAIL

EVO II Pro RTK has high dynamic range and powerful low light performance, enabling users to capture clear imagery without missing any detailed information.

High resolution camera

  • The 1 inch CMOS sensor coupled with 20 MP and F/2.8-F11 aperture, gives you the versatility and ability to capture the best in a variety of mission scenarios.

6K Ultra HD video

  • The 6K resolution ultra-high-definition lens, supported by a 1-inch sensor, makes it easy to achieve professional shooting results.



LIGHTWEIGHT, EFFICIENT AND RELIABLE

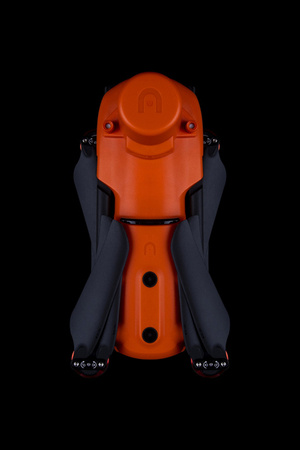

The EVO II RTK series inherits the folding design of the original EVO II series, making it compact, lightweight, portable and ready to fly in just seconds. Together with a 9km maximum transmission range, the aircraft offers a flight time of up to 36 minutes and can reach a top speed of up to 20m/s, making it the ideal flying companion for your daily missions.

Maximum flight time

  • 36min

Maximum transmission range

  • 9km

Max. speed

  • 20m/s



MISSION ACCOMPLISHMENT THROUGH ADVANCED INTELLIGENCE

The EVO II RTK series provides users with a full range of intelligent features and solutions to meet a variety of mission needs. Using advanced flight control and the latest AI technology, the aircraft can significantly improve mission workflow and help reduce operational costs.

Mission_planning_RTK_Autel_aeroMind

MISSION PLANNING



Once a flight path has been created, the EVO II RTK Series can fly the designated flight path autonomously, allowing for a smooth, safe and more efficient flight.

-> Waypoint mission
-> Rectangular mission
-> Polygon mission
-> Diagonal images



PHOTO REPLICATION

For repeatable data collection missions, you can record your drone’s previous positions. All gimbal, camera and aircraft movements will be replayed, creating a complete record of the entire mission.

Proto_replication_Autel_RTK_aeroMind



OMNIDIRECTIONAL OBSTACLE DETECTION AND AVOIDANCE

The EVO II RTK series has a built-in 6-way sensing system that provides the aircraft with the ability to avoid obstacles in all directions for safer flight.

OMNIDIRECTIONAL_SENSING_amp_OBSTACLE_AVOIDANCE



NO NEED FOR GROUND CONTROL POINTS

The EVO II RTK series uses a high precision RTK module, supports PPK, time synchronisation and is not limited by communication links or network coverage.

No_ground_points_need_Autel_RTK_aeroMind



RTK / PPK

An A-RTK base station and RTK network service are supplied with the EVO II series aircraft.

RTK__PPK_Autel_aeroMind



A-RTK HIGH PRECISION
GNSS BASE STATION

The EVO II RTK series supports high-precision GNSS A-RTK base station for real-time differential data to provide accurate coordinates of the designated target point.

A-RTK_Autel_aeroMind



AREA OF APPLICATION

  • Inspection of power lines
  • Law enforcement
  • Fire service
  • Photogrammetry



SPECIFICATION


DRONE

  • Weight (with propeller and battery): 1250g±0.5g(EVO II Dual 640T RTK); 1237g±0.5g(EVO II Pro RTK))
  • Wheel base: 397 mm
  • Maximum service ceiling height: 3,7 mil (6000 m) MSL
  • Maximum climb rate: 5 m/s (automatic flight); 8 m/s(manual control)
  • Max. descent speed: 4 m/s
  • Max. horizontal flight speed: 72 km/h(positioning mode )
  • Max. pitch angle: 33°(positioning mode)
  • Max. angular velocity: 120°/s
  • Max. flight time: 36 min
  • Operating temperature range: -10℃ do 40℃
  • Maximum wind resistance: Level 8
  • Operating frequency: 2.4~2.4835GHz
  • Transmission power: 2.4~2.4835GHz
  • FCC/ISED:≤27dBm
  • SRRC/CE/MIC/RCM:≤20dBm

Hover accuracy:

  • gwhen RTK is enabled and operating normally: vertical: ±0,1 m; horizontal: ±0,1 m
  • when RTK is not enabled:
  • Vertical: ±0.1 m (when visual positioning is operating normally); ±0,5 m (when GNSS positioning is operating normally)
  • Horizontal: ±0,3 m (when visual positioning is operating normally); ±1,5 m (when GNSS positioning is operating normally)
  • Image attitude compensation: Position of camera centre relative to the phase centre of the A-RTK antenna in air, in the body axis
  • system: (-2.63, 0.31, 83.5) mm, and the EXIF coordinates of the image have been compensated. The positive XYZ axis of the body axis
  • system points to the front, right and bottom of the aircraft respectively.



CAMERA

Gimbal:

Three-axis stabilisation

Mechanical range:

  • Tilt: -135° do +45°;
  • Direction: -100° do +100°

Controlled rotation range

  • Tilt: -120° do +30°;
  • Heading: -90° do +90°.
  • Maximum control speed (tilt): 300°/s
  • Angle jitter: ±0.005°

Remote controller and video transmission

  • Operating Frequency: 2.4~2.4835GHz
  • Transmission Power: 2.4~2.4835GHz
  • FCC/ISED:≤27dBm
  • SRRC/CE/MIC/RCM:≤20dBm

Maximum effective signal distance

  • FCC:5,5 mile (9 km) (without interference or obstruction)
  • CE:3,1 mile (5 km) (bez zakłóceń i przeszkód)
  • Real-time video transmission quality: 720p@30fps / 1080p@30fps
  • Maximum real-time video transmission speed: 40Mbps
  • Display screen: 3,26” OLED (854(W) * 480(H)Pixel)
  • Direct video preview without connecting mobile phone
  • Remote control battery: 5000mAh
  • Operating time: 3 godziny
  • Charging time: 2 godziny (szybkie ładowanie)
  • Operating current/voltage: 1.7A@3.7V



SENSOR SYSTEM

Type of sensor system: Omnidirectional sensing system

Forward

  • Precise measuring range: 0.5-20 m
  • Detection range: 0.5-40 m
  • Effective detection speed: < 15m/s
  • Viewing angle: Horizontal: 60°, Vertical: 80°

To the rear

  • Accurate measuring range: 0.5-16 m
  • Detection range: 0.5-32 m
  • Effective detection speed: < 12m/s
  • Viewing angle: Horizontal: 60°, Vertical: 80

Upwards

  • Precise measuring range: 0.5-12 m
  • Detection range: 0.5-24 m
  • Effective detection speed: < 6m/s
  • Viewing angle: horizontal: 65°, vertical: 50°

Downward

  • Accurate measuring range: 0.5-11 m
  • Detection range: 0.5-22 m
  • Effective detection speed: < 6m/s
  • Viewing angle: horizontal: 100°, vertical: 80°

Left and right side

  • Accurate measuring range: 0.5-12 m
  • Detection range: 0.5-24 m
  • Effective detection speed: < 10m/s
  • Viewing angle: horizontal: 65°, vertical: 50°

Effective working environment

Above: The surface has rich textures and sufficient lighting conditions (>15 lux, normal indoor fluorescent lighting environment); the surface is made of diffuse reflective material and the reflectivity is >20% (such as walls, trees, people, etc.).

Below: The substrate has a rich texture and sufficient lighting conditions (> 15 lux, normal indoor fluorescent lighting environment); the surface is made of diffuse reflective material and the reflectance is > 20% (such as walls, trees, people, etc.).



CAMERA RTK EVO II Pro

Image sensor: 1 cal CMOS; 20 million effective pixels
Lens: FOV 82°
Aperture: f/2,8 – f/11
Focus range: 1 m to infinity (with auto focus)

ISO range

  • Video: 100-6400
  • Photo: 100-12800″
  • Electronic shutter: 8 – 1/8000 s
  • Zoom: 1 – 8 razy

Shooting mode

  • Single shot;
  • Continuous shooting (AEB/Burst): 3, 5, 3 by default
  • Continuous shooting: 2S, 5S, 7S, 10S, 20S, 30S, 60S, default 5S
  • Clear Night Photography: 4K Jpeg support
  • HDR: 4K Jpeg support
  • Long exposure: do 8s
  • Photo resolution: 5472*3648 (3:2); 5472*3076 (16:9); 3840*2160 (16:9)
  • Video resolution: 6K 5472*3076 p30/p25/p24; 4K 3840*2160 p60/p50/p48/p30/p25/p24; 2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24; 1080P 1920*1080 p120/p60/p50/p48/p30/p25/p24
  • Effective Frame Rate: 5472×3648
  • Maximum video stream: 120 Mbps
  • Photo format: JPG(domyślnie); DNG
  • Video format: MOV(default);MP4
  • Supported file system: FAT32(≤ 32 GB)exFAT(> 32 GB)
  • Supported memory card type: Class4 / Class10 / U3
  • Capacity:4G / 8G / 16G / 32G / 128G



EVO II Dual 640T RTK INFRARED CAMERA SPECYFICATIONS

Image sensor: Uncooled infrared vanadium oxide focal plane detector

Lens:

  • Viewing angle: H33°V26°
  • Focal lenght: 13mm
  • Zoom: 1-8x
  • Sensor resolution: 640×512
  • Pixel size: 12μm
  • Wavelength range: 8 – 14μm

Temperature range

  • High gain mode: -20° do +150°
  • Low gain mode: 0° do +550°
  • Temperature measurement accuracy: ±3℃ of reading (whichever is greater)
  • Ambient temperature: -20℃~60℃
  • Video resolution: 640×512@30fps
  • Transmission speed: 6Mbps
  • Video format: MOV / MP4 (H.264/H.265 support)

Camera resolution:

  • Infrared mode: 640*512
  • Picture-in-picture mode: 1920*1080, 1280*720
  • Photo mode
  • Single photo
  • Continuous shooting: 3, 5, 3 default
  • Time-lapse photography: 2S, 5S, 7S, 10S, 20S, 30S, 60S, default 5S
  • Photo format: TIFF+JPG (z plikiem irg)



EVO II Dual 640T RTK Visible Light Camera Specification

  • Image sensor: 1/2 cala CMOS; 48M effective pixels
  • Lens: FOV:79°
  • 35mm format equivalent focal length: 25.6 mm
  • Aperture: f/1.8
  • Focus range: 0,5 m to infinity (with autofocus)
  • Zoom: 1-8x (up to 4x lossless zoom)
  • ISO range: Video: 100-6400Photo: 100-3200
  • Maximum photo size: 8000×6000(4:3)7680×4320(16:9); 4000*3000 (4:3); 3840*2160 (16:9)
  • Photo mode
  • Single shot;
  • Continuous shooting (AEB/Burst): 3, 5, 3 default;
  • Continuous shooting: 2S, 5S, 7S, 10S, 20S, 30S, 60S, default 5S;
  • Clear Night Photography: 4K Jpeg support;
  • HDR: 4K Jpeg support;
  • Long exposure: do 8s;
  • Image format: JPG (default); DNG
  • Video format: MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
  • Video resolution: 8K 7680*4320 p25/p24; 6K 5760*3240 p30/p25/p24; 4K 3840*2160
  • p60/p50/p48/p30/p25/p24; 2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24; 1080P 1920*1080 p120/p60/p50/p48/p30/p25/p24
  • Maximum video bit rate:120Mbps



INTELLIGENT BATTERY

  • Capacity: 7100 mAh
  • Voltage: 11.55 V
  • Battery type: LiPo 3S
  • Energy: 82 Wh
  • Weight: 365 g
  • Charging temperature range: 5 ℃ do 45 ℃
  • Storage temperature and humidity: -10~30℃,65±20%RH
  • Recommended storage temperature: 22-28℃
  • Maximum charging power: 93W
  • Charging time: 90 minut

Battery charging concentrator

  • Voltage: 13.2 V
  • Charging temperature range: 5 ℃ do 45 ℃

Charger

  • Input: 100-240 V, 50/60 Hz, 1,5 A
  • Output: 13,2 V ⎓ 5 A; 5V⎓3A 9V⎓2A 12V⎓1,5A
  • Voltage: 13.2±0.1V
  • Rated Power: 66W
Weight 0.5 kg
