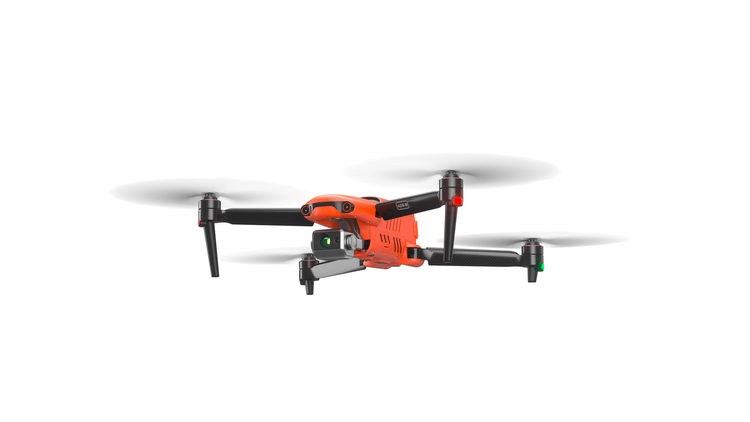

Autel Robotics EVO II Dual 640T V3 Enterprise Thermal Drone

Feature-Packed

The Autel EVO 2 Pro 6K Enterprise Bundle comes packed with everything you need to perform enterprise field operations.
– SkyLink2.0 Video Transmission
– 360° Obstacle Avoidance
– Moonlight Algorithm 2.0
– Included Modular Accessories
– Centimeter-level Positioning with RTK
– ADS-B Signal Receiver

Powerful Hybrid Sensor Payload

640×512 30Hz Thermal Imaging Sensor
Equipped with 640×512 high-resolution thermal imaging camera featuring a 13mm focal length lens and 16x digital zoom, it is easy to observe distant targets. The system uses a new image processing algorithm, making thermal imaging details clearer and more discernible than competition with the similar resolution and hardware.

.8″ RYYB CMOS Sensor
Equipped with a .8″ RYYB CMOS sensor, featuring moonlight algorithm 2.0 that provides excellent noise suppression in limited lighting conditions, further enhancing its 50 megapixel camera to give users more details for better forensics and analysis. Detect, identify, classify subjects in low light situations and proceed with certainty.

Embrace The Night

Zoom With Confidence

Accident Reconstruction

Greater Dynamic Range With 4K HDR

Multiple Temperature Measurement Modes

Spot Temperature Measurement
Displays the temperature of a selected object with just a tap of the screen.

Regional Temperature Measurement
Displays the maximum, minimum, and average temperature of a selected area.

Central Temperature Measurement
Displays the temperature in the center area of the screen.

Temperature Alarm
Alerts the user when the temperature of an area reaches a predetermined threshold.

SkyLink 2.0 Video Transmission

The EVO 2 RTK V3 Series V3 is upgraded with Autel’s all new SkyLink 2.0 Video Transmission technology.

– Fly farther with HD video transmission up to 9.3 miles (15km)
– Obtain critical details with QHD video within 0.6 miles (1km)
– Support tri-band communication and can automatically frequency hop for maximum anti-interference capability.

*900MHz is only applicable for FCC countries.

42 Minutes of Flight Time

Large propellers and revised flight algorithms gives the EVO 2 Enterprise V3 the longest flight time in its category.

Extended Thermal Vents

The EVO 2 Enterprise V3 has additional thermal vents for additional heat dissipation, prolonging battery life.

Longer Carbon Fiber Arms

Carbon fiber arms and longer propellers provide additional rigidity and flight stability to the EVO 2 Enterprise platform.

360° Obstacle Avoidance

Equipped with 12 visual optical sensors, which integrates 19 sets of sensors including the main camera, ultrasonic wave, and IMU to build a 3D map of the drone and its surroundings in real time. The sensors are strategically placed to minimize blind spots on the drone so V3 can automatically stop near obstacles.

*Please refer to the manual for details on obstacle avoidance and its limitations, which may or may not work in limited lighting

ADS-B Receiver

Detects the presence of any manned aircraft nearby emitting an ADS-B signal, giving the operator enough time to take evasive measures to avoid mid-air collisions.

Mission Versatility

With an expanded selection of accessories at its disposal, the EVO 2 Enterprise V3 can evolve from a simple imaging tool to a multifunctional flight platform that can adapt to different scenarios.

Spotlight
Produces a powerful long distance aerial light when searching or shooting at night.

Loudspeaker
Enables effective on-site communication through long-distance live broadcasts and pre-recorded audio loops.

Strobe
Indicate the location of the aircraft at night to avoid air traffic collisions.

Autel Smart Controller V3

Autel’s Smart Controller V3 features a 7.9-inch, 2000nits high-brightness screen that is clearly visible even under direct sunlight. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 9.3 miles (15km) away and enhances anti-interference abilities with triple band frequency hopping. The customized Android system allows for additional flexibility with 3rd party Apps and an IP43 rating ensures all weather performance.

Applications

The Autel EVO 2 Pro 6K Enterprise Bundle was tailored for the following commercial applications:

Public Safety – Assess threats from a safe distance, patrol an area during an investigation, or gather intelligence.
Powerline Inspection – Zip between transmission towers to quickly spot structural damage or overheating electrical elements, saving time and labor costs.
Traffic Supervision – Monitor traffic flow over a larger area and crack down on traffic violations to improve safety for everyone on the road.
Search and Rescue – Quickly locate missing persons by using automated mission modes to cover larger search areas in situations where every second counts.
Firefighting – Soar above the flames to identify hotspots, locate victims, and monitor changing conditions, reducing the risk for crew members on the ground.
Mapping – Create cost-effective 3D maps of an area using high-resolution images up to 2cm GSD* with an vertical accuracy of 1cm and a horizontal accuracy of 1.5cm.

• Aircraft

  Takeoff Weight(Without Accessories)	2.51 lbs (1136.5 g)
  Max Takeoff Weight	1999 g
  Diagonal Length	16.8 inches (427 mm)
  Size(L*W*H)	Folded: 9.6*5.1*4.4 inches; 245*130*111mm Unfolded: 19.9*24.4*4.4 inches; 506*620*111mm
  Max Service Ceiling Altitude	4.3 miles (7000 m) MSL
  Max Ascent Speed	18 mph (8 m/s) (Ludicrous)
  Max Descent Speed	9 mph (4 m/s) (Ludicrous)
  Max Level Flight Speed	45 mph (20 m/s) (Ludicrous)
  Max angular velocity	120°/s
  Max tilt angle	33° (Ludicrous)
  Max Flight Time (no wind)	42 min（without accessories）
  Max Hovering Time (no wind)	38 min（with strobe） 29 min（with spotlight） 34 min（with loudspeaker） 36 min（with RTK module）
  Operating Temperature Range	14℉ to 104℉ (-10℃ to 40℃)
  Max Wind Speed Resistance	27mph, 12 m/s (Take-off and landing)
  Operating Frequency	2.400 GHz – 2.4835 GHz； 5.725GHz – 5.850 GHz
  Hovering accuracy	When RTK is enabled and working normally: Vertical: ±0.1 m; Horizontal: ±0.1 m Vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GNSS works normally) Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GNSS works normally)
  Internal storage	8GB
  SD storage	max. support 256GB (UHS-3 or Class 10)

• Gimbal

  Gimbal	3-axis stabilization
  Mechanical range	Tilt: -135° to +45°; Pan: -100° to +100°
  Controllable rotation range	Tilt: -90° to +30°; Pan: -90° to +90°
  Max control speed (Tilt)	300°/s
  Angular Vibration Range	±0.005°

• Remote controller and image transmission

  Operating frequency	902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz (non-Japan) 5.650-5.755GHz (Japan Only)
  Transmission power (E.I.R.P)	FCC：≤33dBm CE：≤20dBm@2.4G，≤14dBm@5.8G SRRC：≤20dBm@2.4G，≤33dBm@5.8G/5.7G
  Max Transmission Distance (unobstructed, free of interference)	FCC：9.3 miles (15 km) CE：5 miles (8 km)
  Display screen	2048×1536 60fps
  Battery	5800mAh
  Operating time	~3 hours (Max. Brightness) ~4.5 hours (50% Brightness)
  Charging time	90 minutes
  Internal Storage	ROM 128GB

• Sensing system

  Sensing system type	Omnidirectional sensing system
  Forward	Accurate measurement range: 0.5-18 m Effective sensing speed:<12m/s Viewing angle: Horizontal: 60°, Vertical: 80°
  Backward	Accurate measurement range: 0.5-16 m Effective sensing speed:<12m/s Viewing angle: Horizontal: 60°, Vertical: 80°
  Upward	Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: Horizontal: 65°, Vertical: 50°
  Downward	Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: horizontal: 100°, vertical: 80°
  Left and right	Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: horizontal: 65°, vertical: 50°
  Operating Environment	Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15) Upward: Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) Downward: Surface with clear pattern and adequate lighting (lux > 15) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)
• EVO II Dual 640T Enterprise thermal camera

  Sensor	Uncooled VOx Microbolometer
  Lens	FOV H33°V26° Focal length 13mm
  Zoom	1-16x
  Sensor resolution	640*512
  Pixel size	12μm
  Wavelength range	8 – 14μm
  Temperature range	High gain mode: -20° to +150° Low gain mode: 0° to +550°
  Temperature measurement accuracy	±3℃ or ±3% of reading (whichever is greater) @Environmental temperature-20℃~60℃
  Accurate temperature measurement distance	2-20 meters
  Video resolution	640×512@25fps
  Video format	MOV / MP4 (Support H.264/H.265)
  Camera resolution	Infrared mode: 640*512 Picture-in-picture mode: 1920*1080, 1280*720
  Photo mode	Single shot Burst shooting: 3/5 frames, 3 is the default Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s
  Photo format	JPG (with irg file)

• EVO II Dual 640T Enterprise V3 visual camera

  Sensor	1/1.28″(0.8″) CMOS; 50M effective pixels
  Lens	FOV: 85° 35 mm format equivalent focal length: 23 mm Aperture: f/1.9 Focus range: 0.5 m to infinity (with auto focus)
  ISO range	Video: 100-64000 Photo: 100-6400
  Shutter speed	Photo mode: 1/8000 ~ 8s Other: 1/8000 ~ 1/frame rates
  Zoom	1-16x (up to 4x lossless zoom)
  Photo mode	Single shot/Burst shooting/AEB/Time Lapse/HDR imaging
  Maximum photo size	8192*6144（4:3） 4096*3072（4:3） 3840×2160（16:9）
  Image Format	JPG (default) / DNG / JPG+DNG
  Video format	MOV / MP4
  Video resolution	3840x2160P60/P50/P48/P30/P25/P24 2720x1528P60/P50/P48/P30/P25/P24 1920x1080P120/P60/P50/P48/P30/P25/P24
  Max bitrate	80Mbps
  Supported file system	FAT32/exFAT

• Accessories

  Strobe	Dimensions：39*72*34 mm Weight：19.5 g Connections：Floating Connectors Power：Avg. 1.6W Controllable Range：5000 m Light intensity：Min 50cd；Max 486cd；Avg. 290cd
  Loudspeaker	Dimensions：46*80*77 mm Weight：98.5 g Connections：Floating Connectors Power：Max 18W Decibel：120dB @ 1m；88dB @ 60m；70dB @ 110m； Max Bitrate：36kbps Adjustable Angle Range：0°~45°
  Spotlight	Dimensions：48.5*72*63 mm Weight：77 g Connections：Floating Connectors Power：Max 35W Controllable Range：30 m Adjustable Angle Range：0°~90° Illuminance：FOV14°, Max：11lux @ 30m Straight
  RTK Module	Dimensions：55.5*72.5*57 mm Weight：59.5 g Connections：Floating Connectors Power：~ 3W RTK Positioning Precision： 1.5 cm + 1 ppm（(Vertical） 1 cm + 1 ppm（Horizontal）

• Battery

  Capacity	7100 mAh
  Voltage	11.55 V
  Battery type	LiPo 3S
  Energy	82 Wh
  Weight	365 g
  Charging temperature range	5℃ to 45℃
  Storage temperature and humidity	-10~30℃，65±20%RH
  Recommended storage temperature	22-28℃
  Max charging power	93W
  Charging time	90 minutes

• Charger

  Input	100-240 V, 50/60 Hz, 1.5A
  Output	13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A
  Voltage	13.2±0.1V
  Rated power	66W

• Multi-Charger

  Voltage	13.2 V
  Charging temperature range	5℃ to 45℃

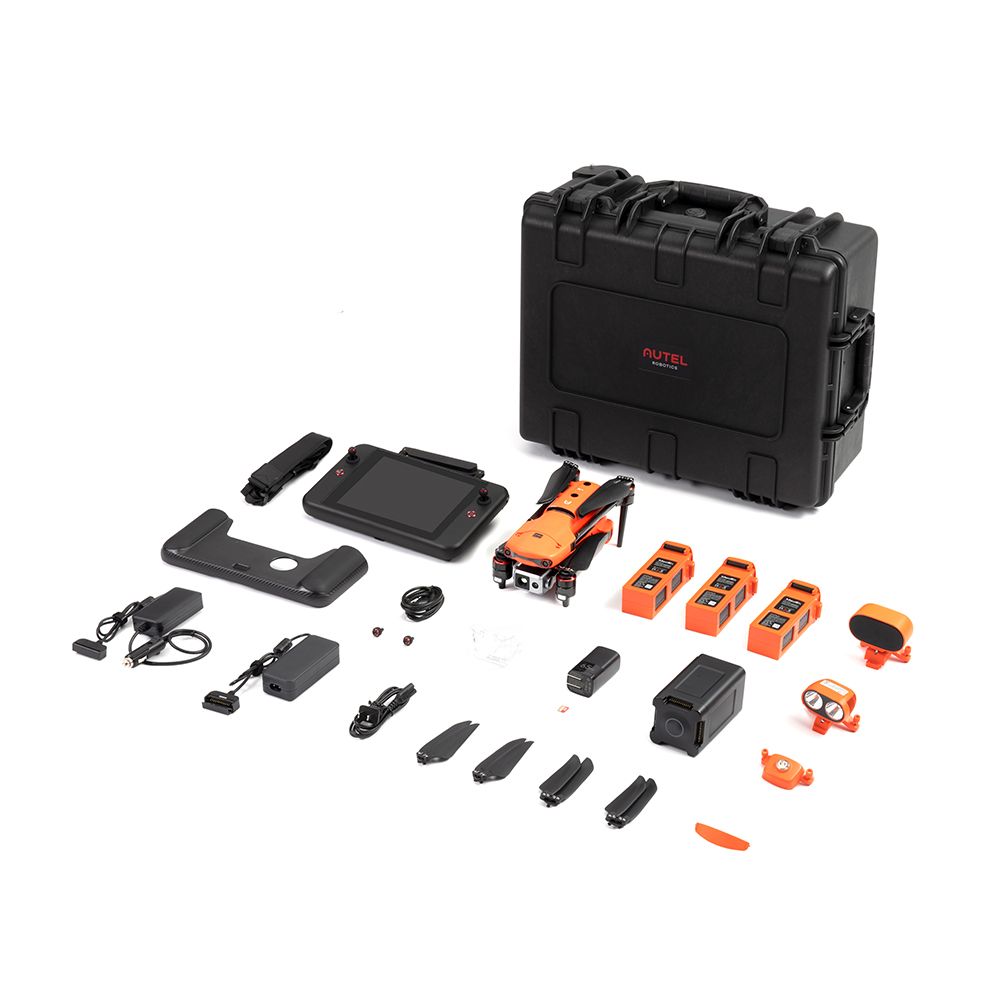

What’s In The Box?

• 1x Aircraft(Battery,propeller,gimbal cover,32G SD card included)
• 1x Remote Controller(sticks included)
• 2x Spare Propeller(pair)
• 2x Spare Battery
• 1x Battery Charger+Power cable
• 1x Car charger
• 1x Multi-charger
• 1x RC charger
• 1x RC charger cable
• 1x Spare control stick(pair)
• 1x RC protective case
• 1x RC landyard
• 1x Carring Case
• 1x Quick guide
• 1x loudspeaker
• 1x spotlight
• 1x strobe
