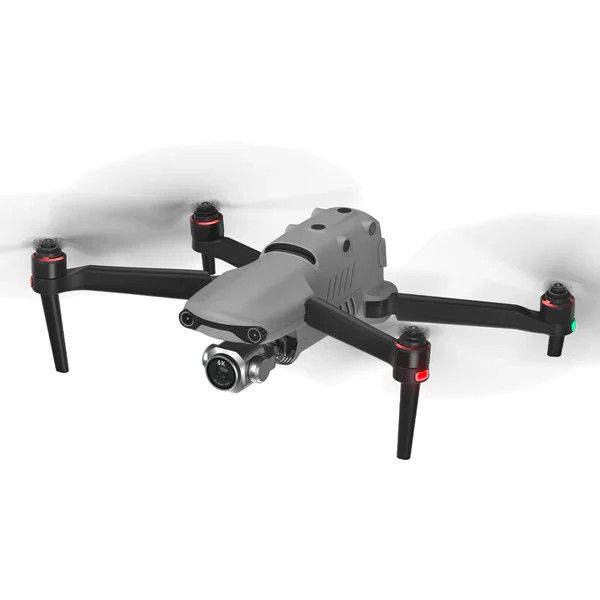

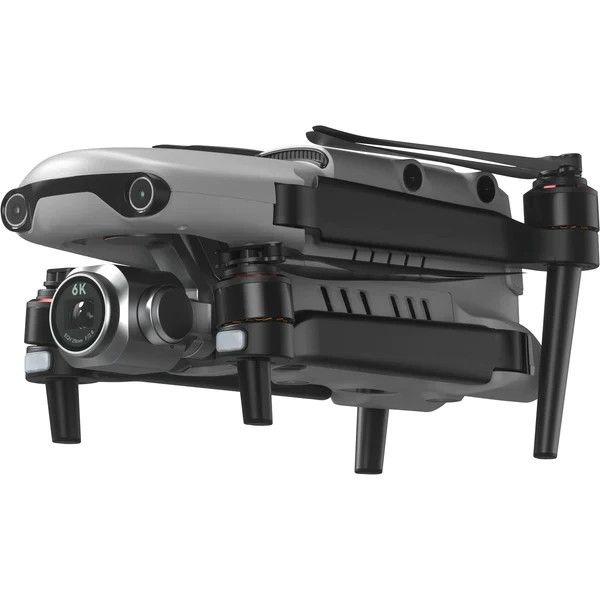

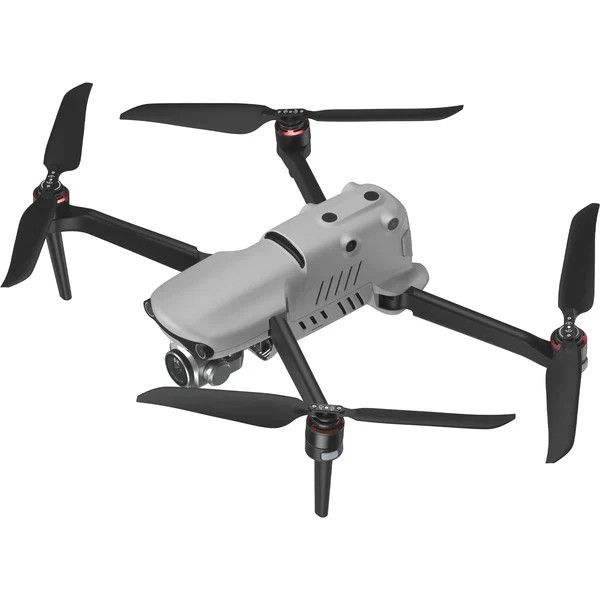

Autel Robotics EVO II Pro 6K V3 Rugged Bundle Gray Color

Camera:

• Sony’s new 1-inch 20MP CMOS sensor
• Up to 6K video resolution with improved dynamic range, noise suppression, and frame rates
• 12-bit DNG raw photos for superior post-production flexibility (64 times more color than 10-bit)
• 16x digital zoom

Flight Performance:

• SkyLink 2.0 transmission system for a range of up to 15km (9.3 miles) and enhanced anti-interference capabilities
• Omnidirectional obstacle avoidance for safer flight
• Centimeter-level positioning accuracy with Real-Time Kinematic (RTK) module (depending on the version)
• Up to 40 minutes of flight time on a single battery

Rugged Bundle:

This specific bundle includes several accessories for demanding situations:

• Extra batteries (usually 2) for extended flight time
• Spare propellers (usually 4)
• Carrying strap for easy transport
• Autel Smart Controller V3 with a 6.4-inch OLED touchscreen and a latest-gen 8-core processor for smoother operation

Other Features:

• Moonlight Algorithm 2.0 for improved low-light performance
• ADS-B signal receiver for increased awareness of nearby manned aircraft (depending on the version)
• Multiple intelligent flight modes for various tasks

Overall, the Autel Robotics EVO II Pro 6K V3 Rugged Bundle (Gray Color) is a powerful and versatile drone for professional users who demand exceptional image quality, long flight times, and reliable obstacle avoidance.

Technical Specs

• Aircraft

  Takeoff weight	1191 g
  Max takeoff weight	2000 g
  Wheelbase	397 mm
  Size(L*W*H)	230x130x108 mm (folded) 457x558x108 mm (unfolded)
  Maximum service ceiling altitude	7000 m
  Max ascent speed	8 m/s (Ludicrous)
  Max descent speed	4 m/s (Ludicrous)
  Max horizontal flight speed	20m/s (Ludicrous)
  Max flight distance (no wind)	25 km
  Max tilt angle	33° (Ludicrous)
  Max angular velocity	120°/s
  Max flight time (no wind)	40 min
  Max hovering time (no wind)	35 min
  Operating temperature range	-10℃ ~ 40℃
  Maximum resistance to wind	12 m/s (Take-off and landing)
  Operating frequency	902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz (non-Japan) 5.650-5.755GHz (Japan Only)
  Transmission power	900M FCC/ ISED：≤31dBm 2.4G FCC/ ISED：≤32dBm SRRC/CE/MIC/RCM：≤20dBm 5.8G (non-Japan) ; 5.7G (Japan) FCC/ISED/SRRC/MIC：≤33dBm CE/ RCM：≤14dBm
  Hovering accuracy	Vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GPS works normally) Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GPS works normally)
  GNSS	GPS/Beidou/Glonass/Gallieo
  Internal storage	8GB
  SD storage	max. support 256GB (UHS-3 or Class 10)



• Gimbal

  Gimbal	3-axis stabilization
  Mechanical range	Tilt: -135° to +45°; Pan: -100° to +100°
  Controllable rotation range	Tilt: -90° to +30°; Pan: -90° to +90°
  Max control speed (Tilt)	300°/s
  Angular Vibration Range	±0.005°



• Remote controller and image transmission

  Operating frequency	902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz (non-Japan) 5.650-5.755GHz (Japan Only)
  Transmission power	FCC：≤33dBm CE：≤20dBm@2.4G，≤14dBm@5.8G SRRC：≤20dBm@2.4G，≤33dBm@5.8G/5.7G
  Max Transmission Distance (unobstructed, free of interference)	FCC：15km CE：8km
  Display screen	2340×1080 60fps
  Battery	1900mAh
  Operating time	~2 hours (Max. Brightness) ~3 hours (50% Brightness)
  Charging time	90 minutes
  Internal Storage	ROM 128GB + expandable storage via micro-SD card



• Sensing system

  Sensing system type	Omnidirectional sensing system
  Forward	Accurate measurement range: 0.5-18 m Effective sensing speed:<12m/s Viewing angle: Horizontal: 60°, Vertical: 80°
  Backward	Accurate measurement range: 0.5-16 m Effective sensing speed:<12m/s Viewing angle: Horizontal: 60°, Vertical: 80°
  Upward	Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: Horizontal: 65°, Vertical: 50°
  Downward	Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: horizontal: 100°, vertical: 80°
  Left and right	Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: horizontal: 65°, vertical: 50°
  Operating Environment	Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15) Upward: Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) Downward: Surface with clear pattern and adequate lighting (lux > 15) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)



• Camera

  Sensor	1 inch CMOS; 20M pixels
  Lens	FOV: 82° Equivalent focal length: 29 mm Aperture: f/2.8 – f/11 Focus range: 0.5 m to infinity
  ISO range	Video: 100-44000 Photo: 100-6400
  Shutter speed	Photo mode: 1/8000 ~ 8s Other: 1/8000 ~ 1/frame rates
  Zoom	1-16x (up to 3x lossless zoom)
  Photo mode	Single shot/Burst shooting/AEB/Time Lapse/HDR
  Maximum photo size	5472*3648 (3:2) 5472*3076 (16:9) 3840*2160 (16:9)
  Image Format	JPG (default) / DNG / JPG+DNG
  Photo mode	5472x3076P30/P25/P24 3840x2160P60/P50/P48/P30/P25/P24 2720x1528P60/P50/P48/P30/P25/P24 1920x1080P60/P50/P48/P30/P25/P24
  Video format	MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
  Max bitrate	120Mbps
  Supported file system	FAT32/exFAT



• Battery

  Capacity	7100 mAh
  Voltage	11.55 V
  Battery type	LiPo 3S
  Energy	82 Wh
  Weight	365 g
  Charging temperature range	5℃ to 45℃
  Storage temperature and humidity	-10~30℃，65±20%RH
  Recommended storage temperature	22-28℃
  Max charging power	93W
  Charging time	90 minutes



• Charger

  Input	100-240 V, 50/60 Hz, 1.5A
  Output	13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A
  Voltage	13.2±0.1V
  Rated power	66W



• Multi-Charger

  Voltage	13.2 V
  Charging temperature range	5℃ to 45℃



IN THE BOX

• 1x EVO II Pro Aircraft (including battery,propellers,gimbal holder and 32G SD card)
• 1x Remote Controller
• 1x Spare Battery
• 1x Charger
• 1x Power cable
• 1x Pair of Spare Propellers
• Micro-USB cable
• 2x Remote control cable (standard micro usb connector/Type c connector)
• 1x Carry Case
