Wingtra Lidar

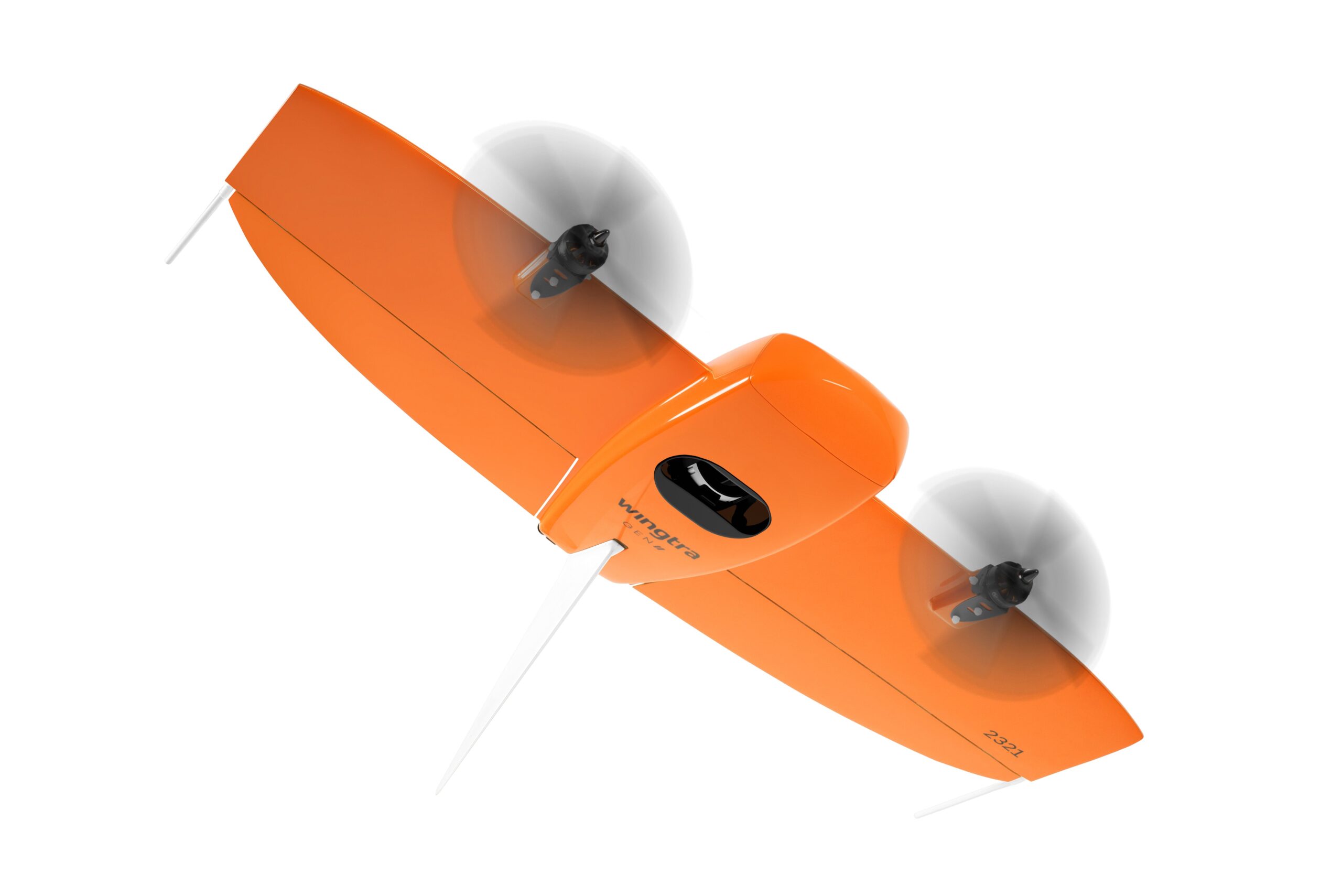

Wingtra LIDAR sets new standards in aerial mapping. Its high-performance LiDAR sensor seamlessly into Wingtra’s already acclaimed WingtraOne drone. This powerful combination boasts:

Exceptional accuracy: Capture data with 3 cm (1.2 in) vertical accuracy verified by lead customers, making it top-of-the-range.
Effortless operation: The fully integrated system simplifies LiDAR data collection, making it accessible to professionals of all levels.
Unmatched efficiency: Cover vast areas with longer flight times and wider swaths, reducing overall project time and cost.
Rugged and reliable: The proven WingtraOne platform ensures reliable operation even in challenging conditions.

(Price on request)

REQUEST A QUOTE

Categories: Drones, Sensors Wingtra, WingtraOne Tags: lidar, Wingtra, WingtraOne

Maximize efficiency

Map up to 360 ha (890 ac) swiftly at 90 m (295 ft) altitude.
No calibration needed with a quick one-minute initialization.
Streamlined post-processing with the Wingtra LIDAR app for faster data turnaround.

Simplify your workflow

Smooth data collection and processing for all level of expertise.
Switch to photogrammetry when you need to with our easy plug-and-play GEN II platform.
Take off and land anywhere thanks to VTOL capability.

Get accurate and reliable insights

Trust you’ll get it right the first time.
Design projects based on high accuracy data, and cut out costly rework.
Best-in-class Hesai sensor, and Inertial Labs IMU LIDAR kit for exceptional accuracy.

Technical Specs

	LIDAR Easy-to-use
Best for	Greenfield surveys, ground reconstruction and below vegetation
Main quality features	Map terrain below vegetation

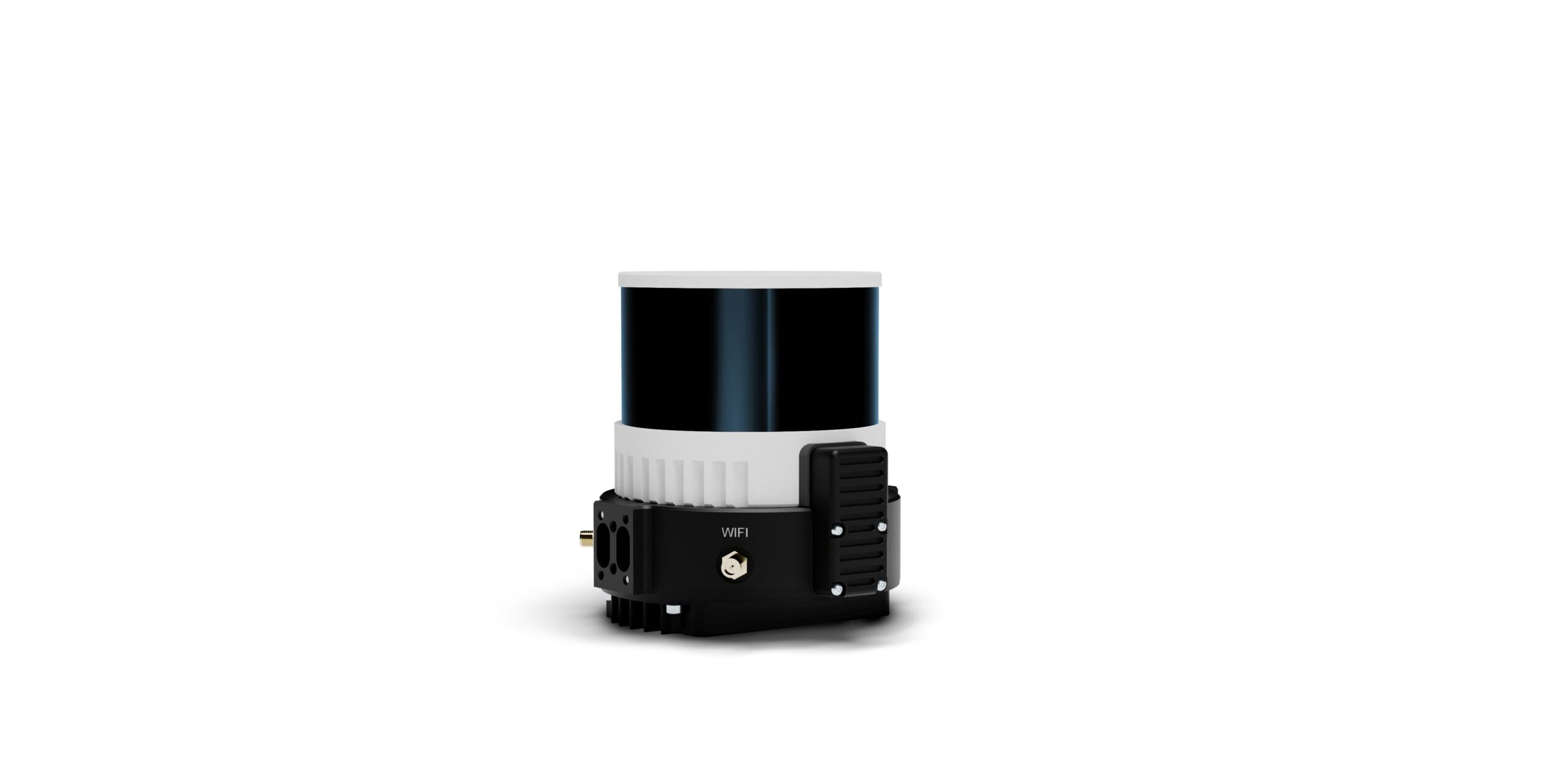

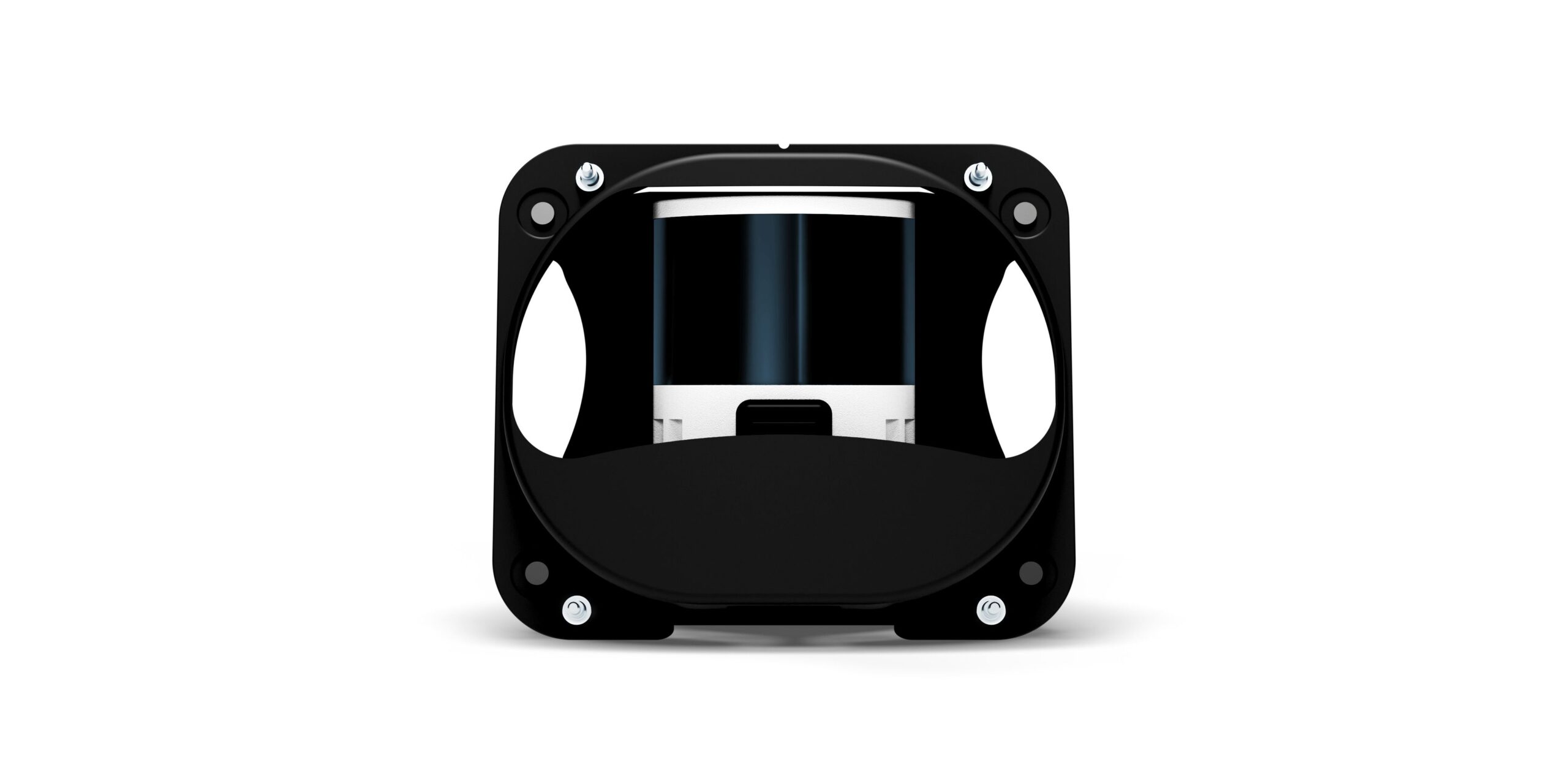

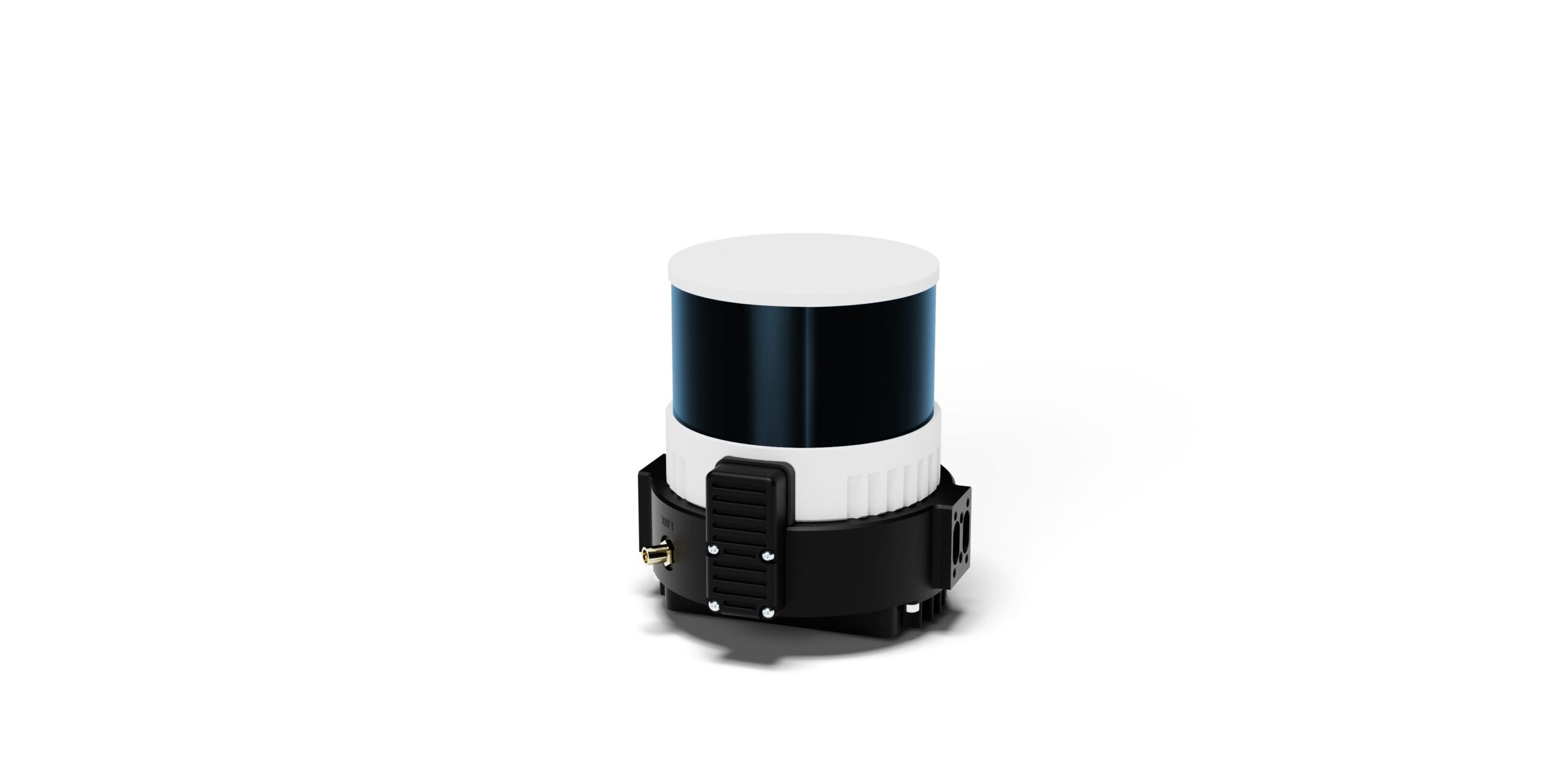

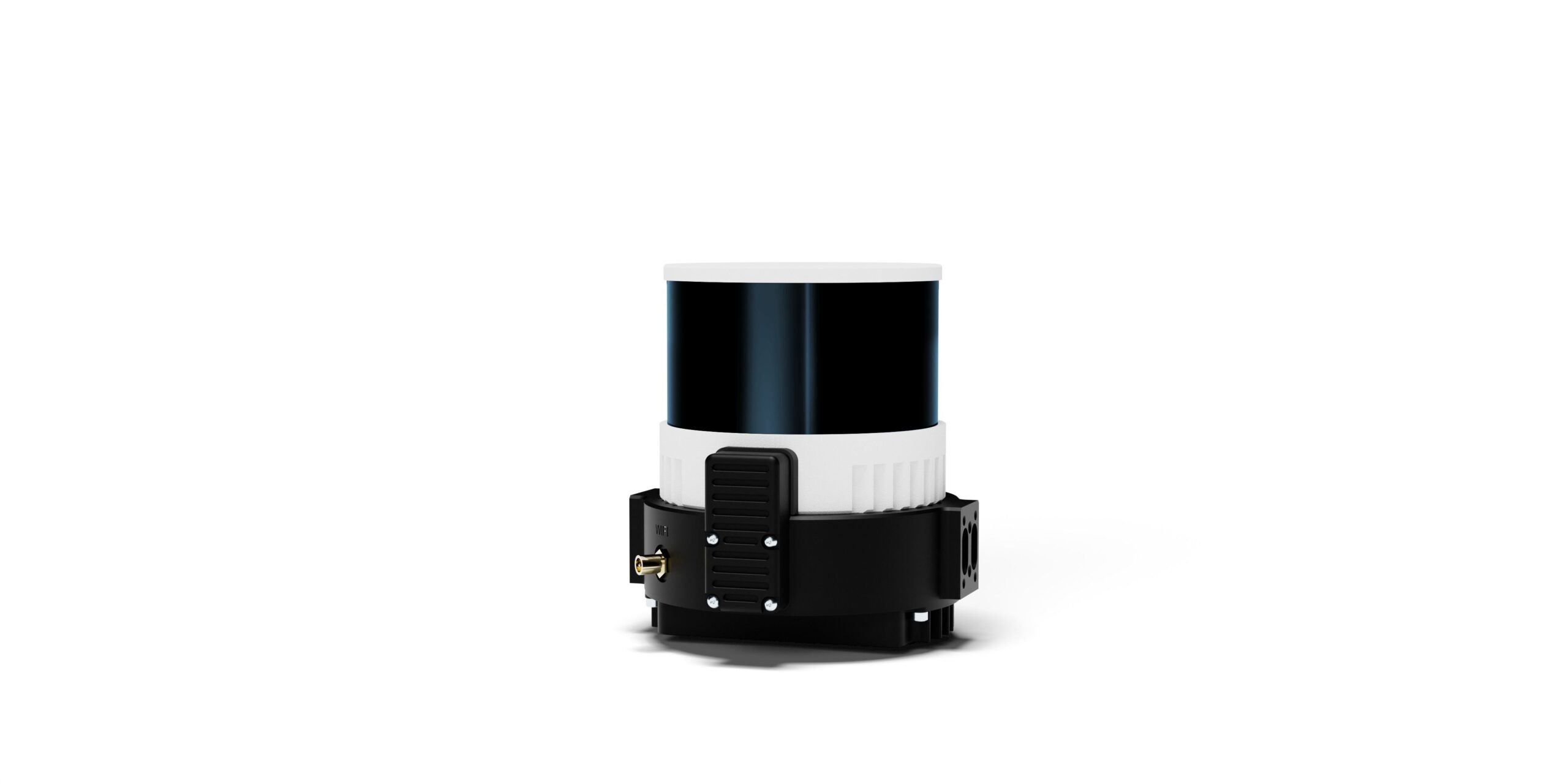

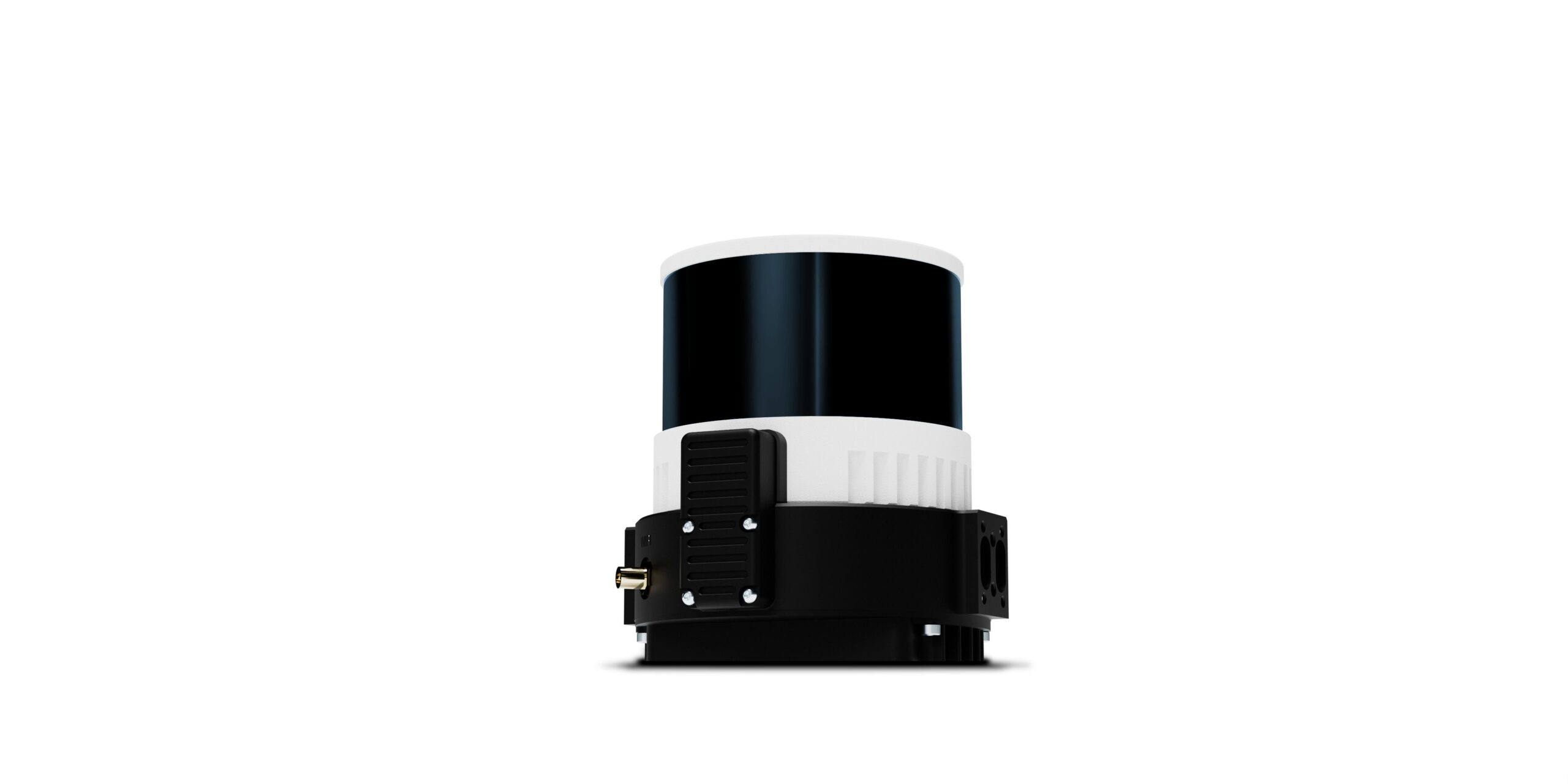

Laser scanner	Hesai XT32M2X
Inertial measurement unit	Inertial Labs Tactical-Grade IMU-P
GNSS system	NovAtel OEM7500
Effective point density in deliverable at 90 m AGL with 50% side overlap	Hard surface: ~110 pts/m2 (single return) Low vegetation: up to 220 pts/m2 (dual return) High vegetation: up to 330 pts/m2 (triple return)
Maximum coverage at 90 m (300 ft)	Up to 360 ha (890 ac) with 30% side overlap
Vertical absolute accuracy at 90m (RMS)	Down to 3 cm (1.2 in)
